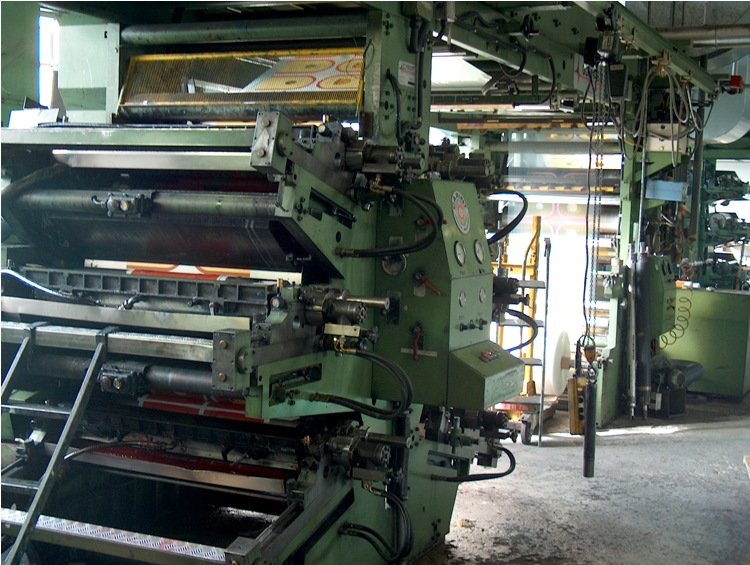

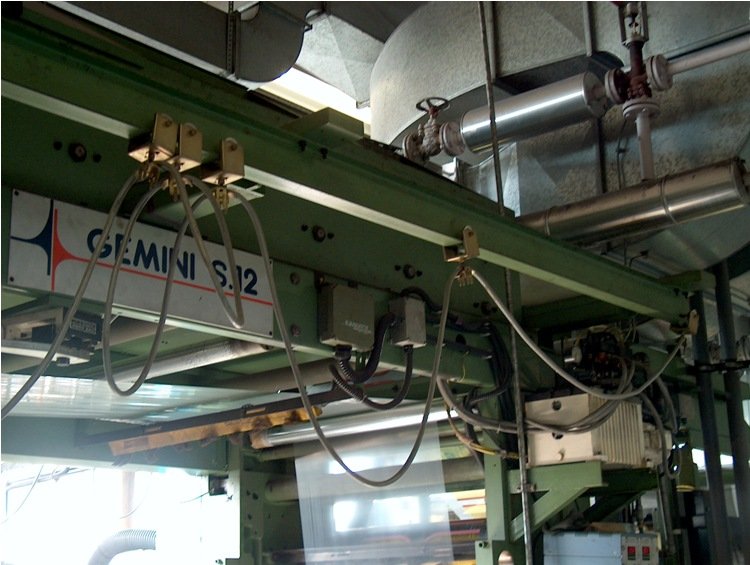

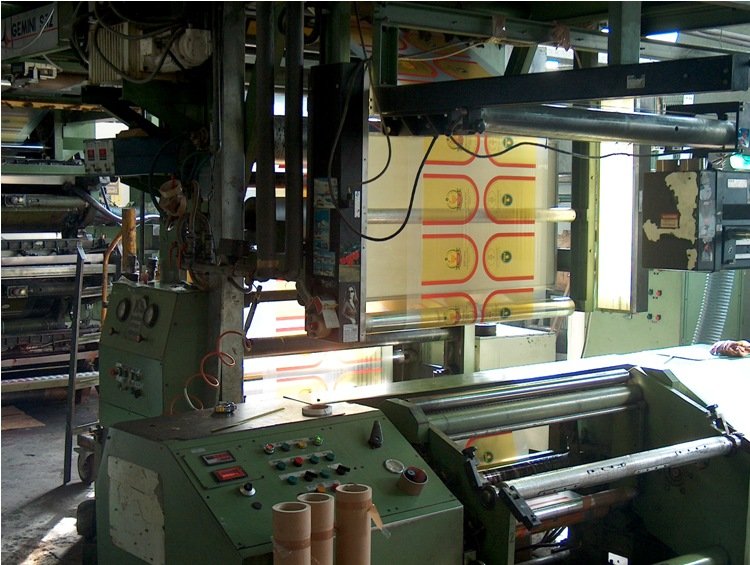

** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL490
- Manufacturer
- CARINT
- Modello
- GEMINI S 12
- Year
- 1989
- Number of colors
- 6
- Overhaul/renovation
- RENOVATED IN 2004
- Gearless
- No
- Fast sleeve change
- No
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- TURRET
- Rewinder type
- TURRET
- Drying
- THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS
- Web guides
- 2
- Inking system
- 6 doctor blades;
- Anilox
- 11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm
- Print cylinders
- 57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm
- Note
- Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying;
| Machine Code | FL490 |
| Manufacturer | CARINT |
| Modello | GEMINI S 12 |
| Year | 1989 |
| Number of colors | 6 |
| Overhaul/renovation | RENOVATED IN 2004 |
| Gearless | No |
| Fast sleeve change | No |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET |
| Rewinder type | TURRET |
| Drying | THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS |
| Web guides | 2 |
| Inking system | 6 doctor blades; |
| Anilox | 11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm |
| Print cylinders | 57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm |
| Note | Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying; |
