Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1189
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- 15S
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8 colors. Re print and in register print insetter possible
- Overhaul/renovation
- PLC Siemens in 2022. Videocamera year 2021
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 880
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000

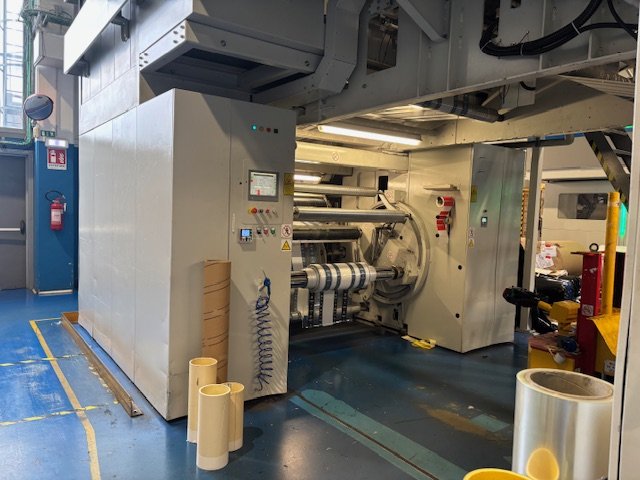

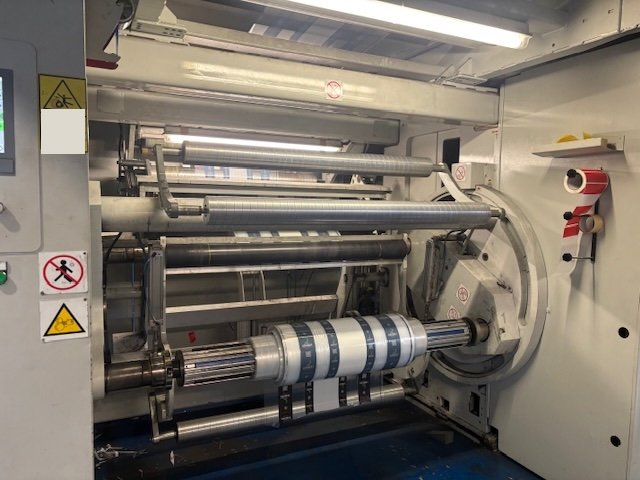

- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones drying system. 2 gas burners 4 fans

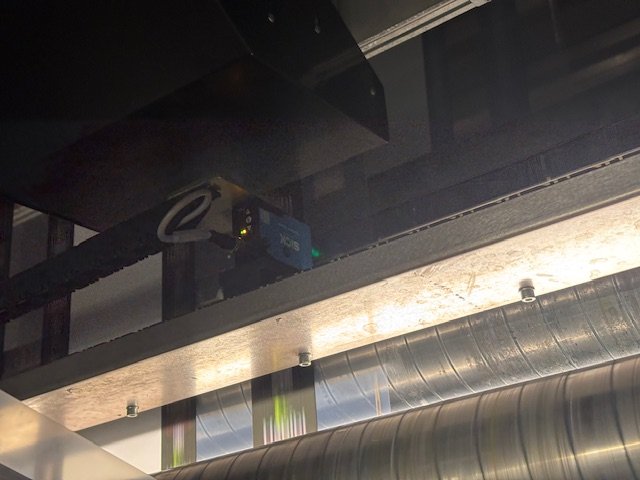

- Videocamera
- Grafikontrol 2021 with print defect control
- Corona treatment
- Mero
- Web guides
- BST with edge control and camera for print edge control
- Vyscosity control
- Automatic viscosity control, Fasnacht
- Washing system
- Automatic washing system
- Inking system
- Closed chamber doctor blades
- Anilox
- 22
- Print Sleeves
- 48 print sleeves. 3 sets of 8 adaptors: 8x130mm, 8x168mm, 8x229mm
- Note
- - GPS system for fast print pressure and register setting after job change - IncludingGPS plate mounter with plate scanning
| Machine Code | FL1189 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | 15S |
| Year | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8 colors. Re print and in register print insetter possible |
| Overhaul/renovation | PLC Siemens in 2022. Videocamera year 2021 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 880 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones drying system. 2 gas burners 4 fans |
| Videocamera | Grafikontrol 2021 with print defect control |
| Corona treatment | Mero |
| Web guides | BST with edge control and camera for print edge control |
| Vyscosity control | Automatic viscosity control, Fasnacht |
| Washing system | Automatic washing system |
| Inking system | Closed chamber doctor blades |
| Anilox | 22 |
| Print Sleeves | 48 print sleeves. 3 sets of 8 adaptors: 8x130mm, 8x168mm, 8x229mm |
| Note | - GPS system for fast print pressure and register setting after job change - IncludingGPS plate mounter with plate scanning |
