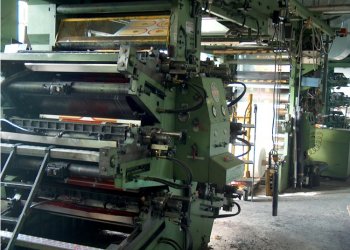

CARINT GEMINI S 12 Macchina da stampa flexo 6 colori // Flexo CI // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallery

Codice Macchina: FL490
Manufacturer: CARINT
Modello: GEMINI S 12
Year: 1989
Numero di colori: 6
Rinnovo: RENOVATED IN 2004
Gearless: No
Cambio a maniche rapido: No
Larghezza nastro (mm): 1050
Larghezza stampa (mm): 1000
Min print repeat (mm): 350
Max print repeat (mm): 800
Unwinder type: TURRET
Rewinder type: TURRET
Essiccazione: THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS
Guida film: 2
Sistema d'inchiostro: 6 doctor blades;
Anilox: 11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm
Cilindri stampa: 57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm
Ulteriori informazioni: Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying;

Codice Macchina	FL490
Manufacturer	CARINT
Modello	GEMINI S 12
Year	1989
Numero di colori	6
Rinnovo	RENOVATED IN 2004
Gearless	No
Cambio a maniche rapido	No
Larghezza nastro (mm)	1050
Larghezza stampa (mm)	1000
Min print repeat (mm)	350
Max print repeat (mm)	800
Unwinder type	TURRET
Rewinder type	TURRET
Essiccazione	THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS
Guida film	2
Sistema d'inchiostro	6 doctor blades;
Anilox	11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm
Cilindri stampa	57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm
Ulteriori informazioni	Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying;
