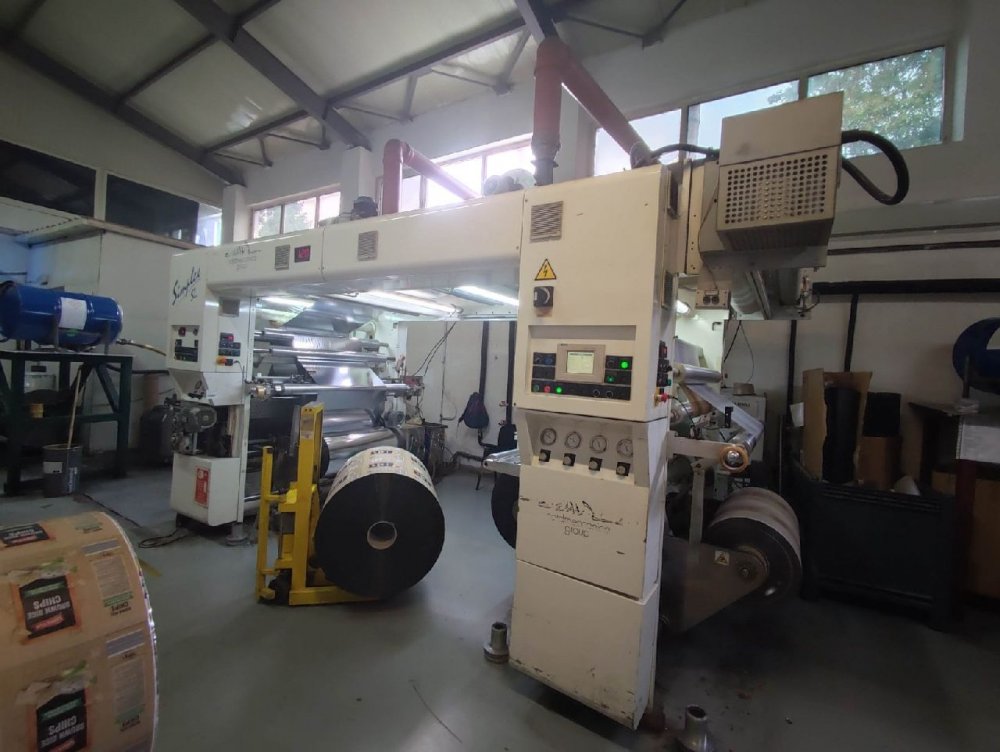

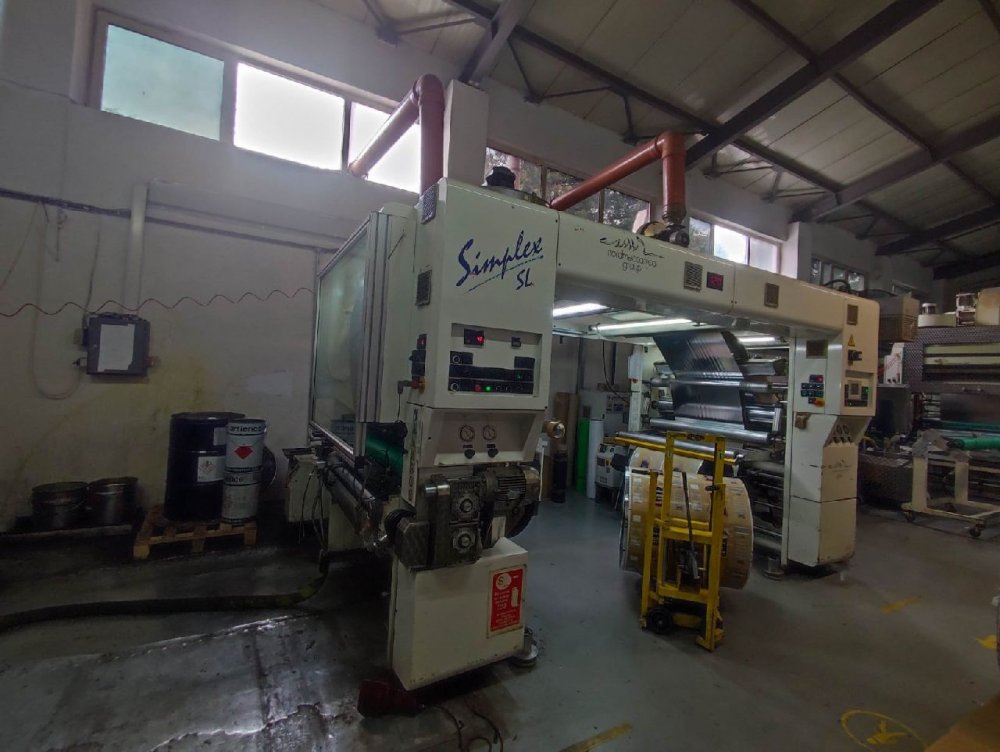

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
- Machine Code
- LA494
- Manufacturer
- NORDMECCANICA
- Modello
- Simplex sl
- Year
- 2005
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1300
- Materials
- BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm
- Speed
- 300 mpm
- First unwinder type
- SINGLE POSITION SHAFTLESS
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- SINGLE POSITION SHAFTLESs
- Max diameter reel unwinder
- 800
- Rewinder type
- SINGLE POSITION SHAFTLESS AC motor driven
- Max diameter reel rewinder
- 800
- Coating unit
- 4 rolls type solventless
- pumping mixing unit
- Yes

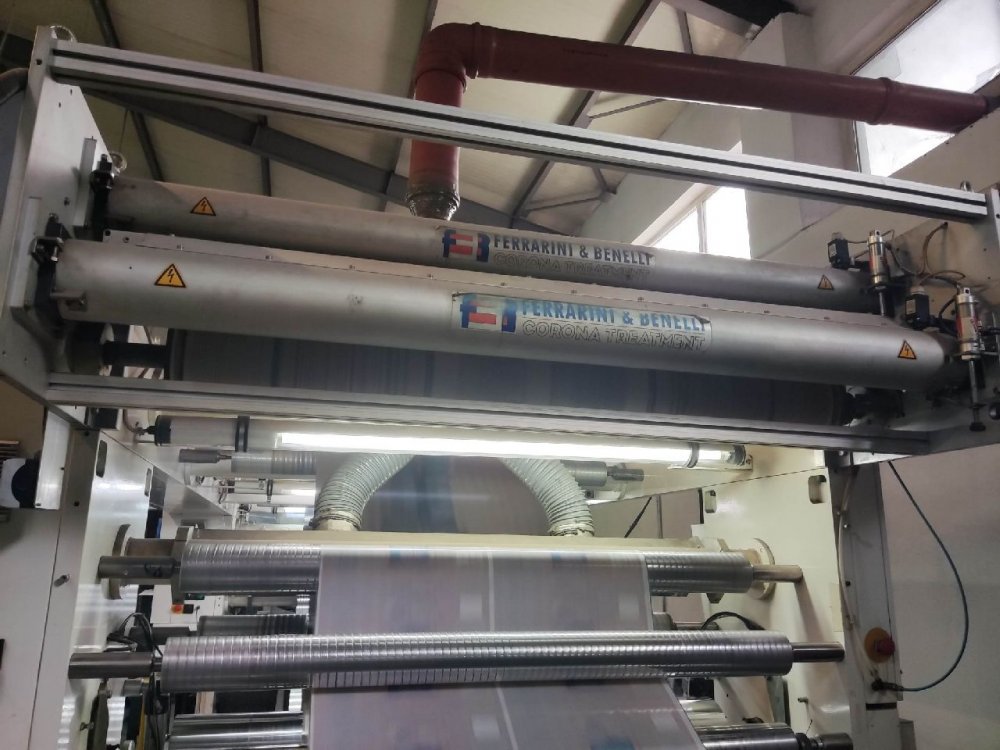

- Corona treatment
- Yes Ferrarini Benelli
| Machine Code | LA494 |
| Manufacturer | NORDMECCANICA |
| Modello | Simplex sl |
| Year | 2005 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1300 |
| Materials | BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm |
| Speed | 300 mpm |
| First unwinder type | SINGLE POSITION SHAFTLESS |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | SINGLE POSITION SHAFTLESs |
| Max diameter reel unwinder | 800 |
| Rewinder type | SINGLE POSITION SHAFTLESS AC motor driven |
| Max diameter reel rewinder | 800 |
| Coating unit | 4 rolls type solventless |
| pumping mixing unit | Yes |
| Corona treatment | Yes Ferrarini Benelli |
ISOTEX
-
Machine Code: LA472
-
Year: 2014
-
Working width (mm): 1700

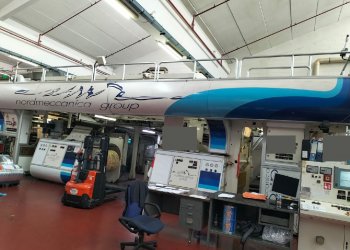

NORDMECCANICA SIMPLEX COMBI
-
