Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA421
- Manufacturer
- NORDMECCANICA
- Modello
- DUPLEX
- Year
- 2002
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1350
- Speed
- 400
- First unwinder type
- TURRET
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- TURRET
- Max diameter reel unwinder
- 1000
- Rewinder type
- TURRET
- Max diameter reel rewinder
- 1000
- Coating unit
- 5 rollers staggered
- pumping mixing unit
- DOPAG 2 components year 2018
- Corona treatment
- 2 x double side Ferrarini Benelli driven treaters
- Coating unit
- 5 rollers staggered
- Note
- PLC Siemens

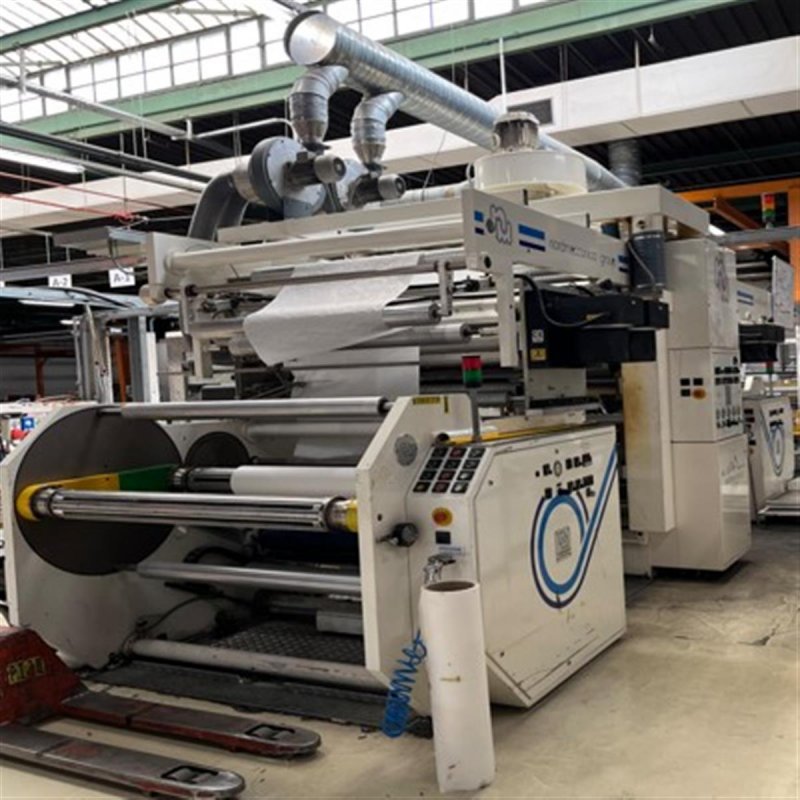

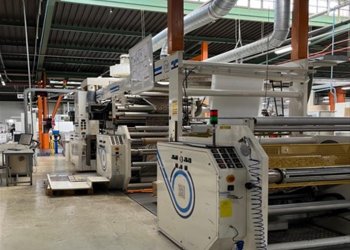

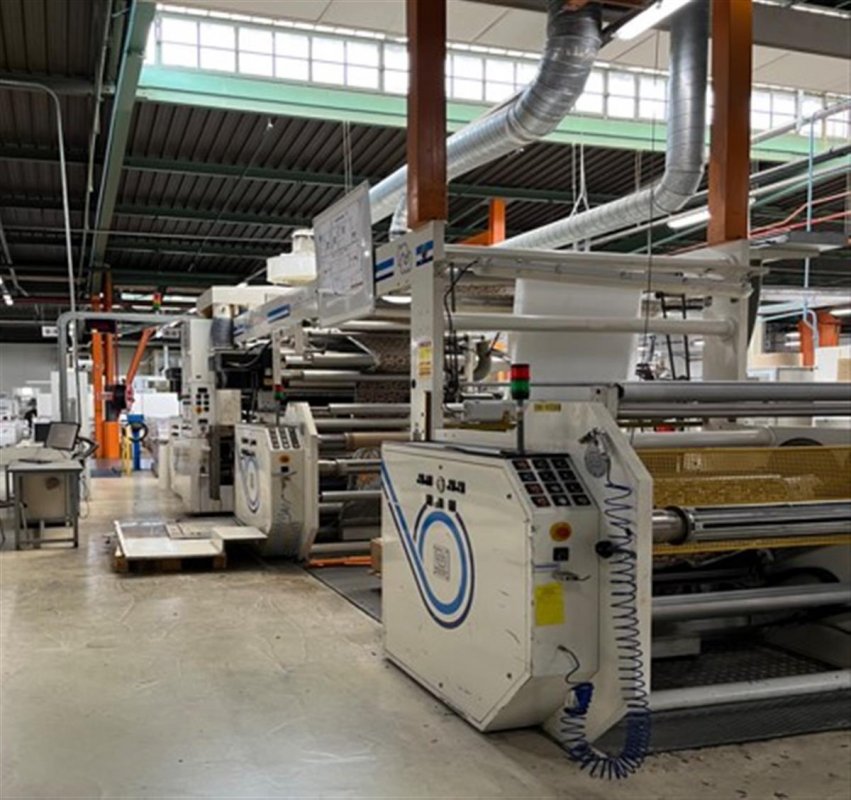

Machine Code | LA421 |
Manufacturer | NORDMECCANICA |
Modello | DUPLEX |
Year | 2002 |
Application | Duplex lamination |
Type of lamination/coating | SOLVENTLESS |
Working width (mm) | 1350 |
Speed | 400 |
First unwinder type | TURRET |
Max diameter reel unwinder | 1000 |
Secondary unwinder type | TURRET |
Max diameter reel unwinder | 1000 |
Rewinder type | TURRET |
Max diameter reel rewinder | 1000 |
Coating unit | 5 rollers staggered |
pumping mixing unit | DOPAG 2 components year 2018 |
Corona treatment | 2 x double side Ferrarini Benelli driven treaters |
Coating unit | 5 rollers staggered |
Note | PLC Siemens |
