Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA354
- Manufacturer
- SCHIAVI
- Modello
- CONCORDE
- Year
- 1994
- Application
- Coating
- Working width (mm)
- 1220
- First unwinder type
- Turret automatic
- Max diameter reel unwinder
- 1200
- Rewinder type
- Turret automatic
- Max diameter reel rewinder
- 1200
- Coating unit
- Gravure solvent based
- Second Coating unitr
- Gravure solvent based

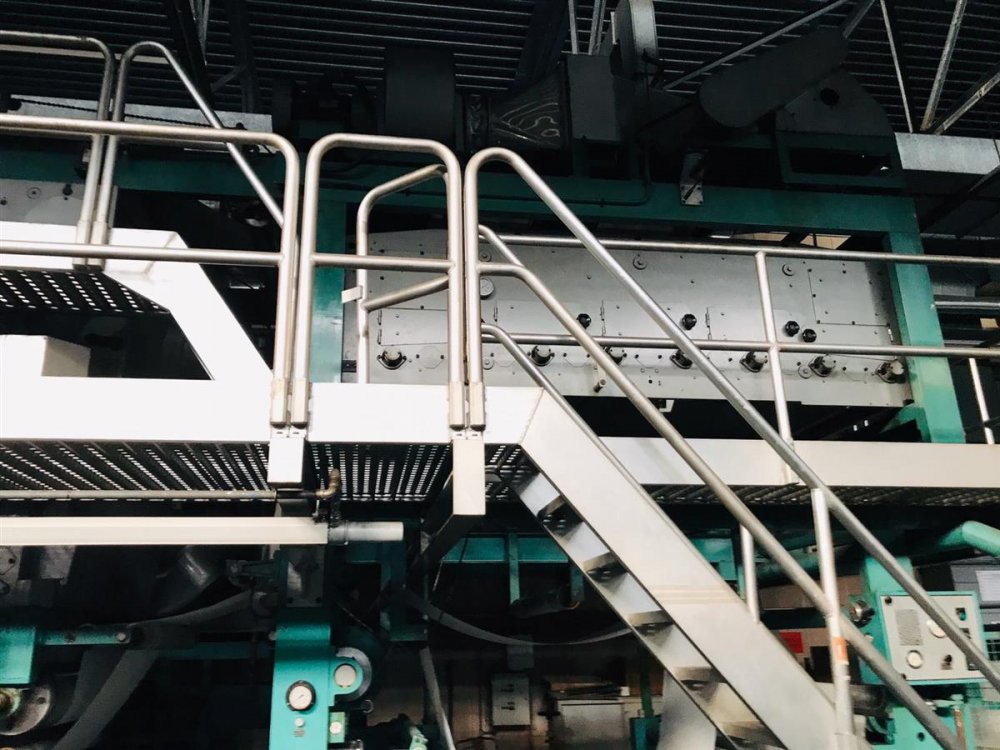

- Drying
- One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners

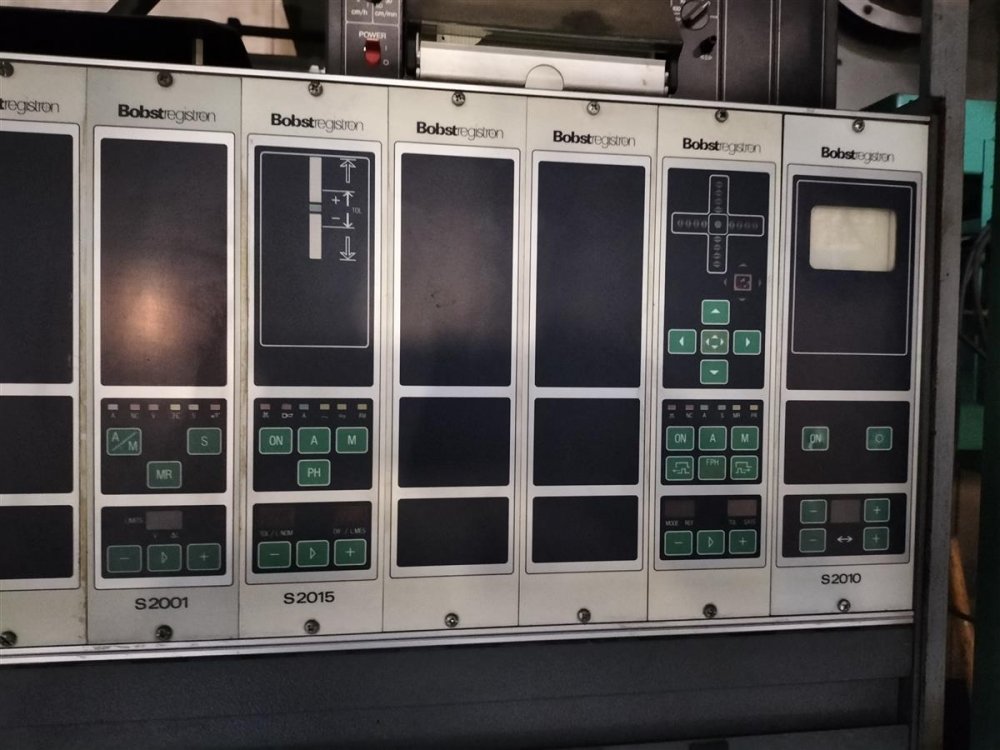

- Register controll
- Yes Bobst Registron before second coating unit
- Note
- 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders
| Machine Code | LA354 |
| Manufacturer | SCHIAVI |
| Modello | CONCORDE |
| Year | 1994 |
| Application | Coating |
| Working width (mm) | 1220 |
| First unwinder type | Turret automatic |
| Max diameter reel unwinder | 1200 |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder | 1200 |
| Coating unit | Gravure solvent based |
| Second Coating unitr | Gravure solvent based |
| Drying | One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners |
| Register controll | Yes Bobst Registron before second coating unit |
| Note | 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders |
