Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations

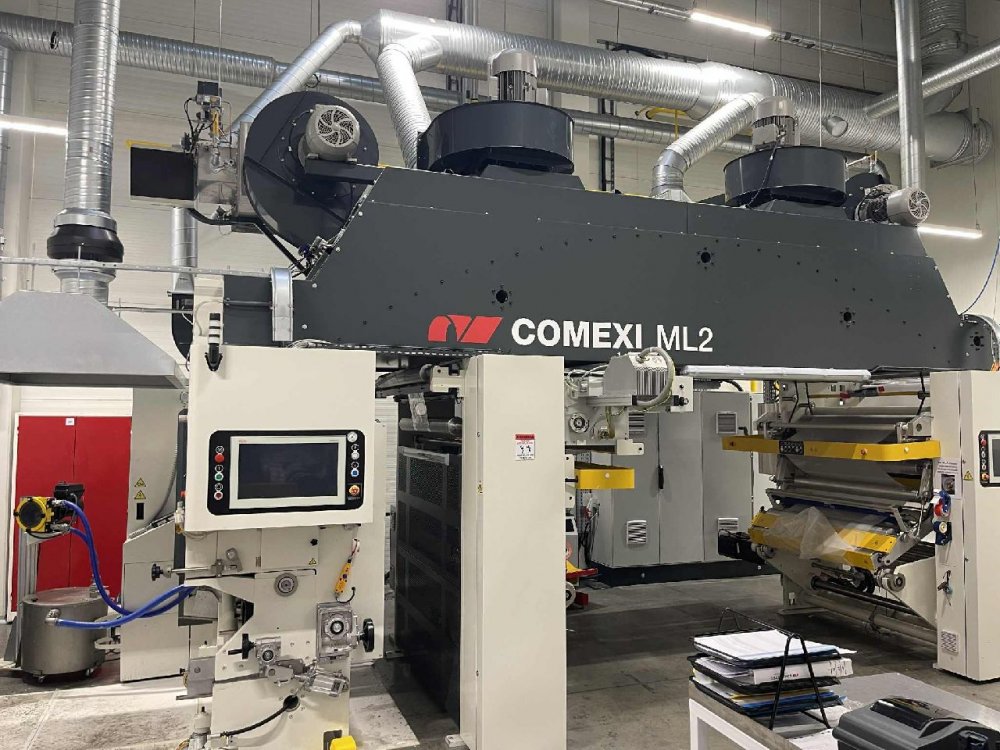

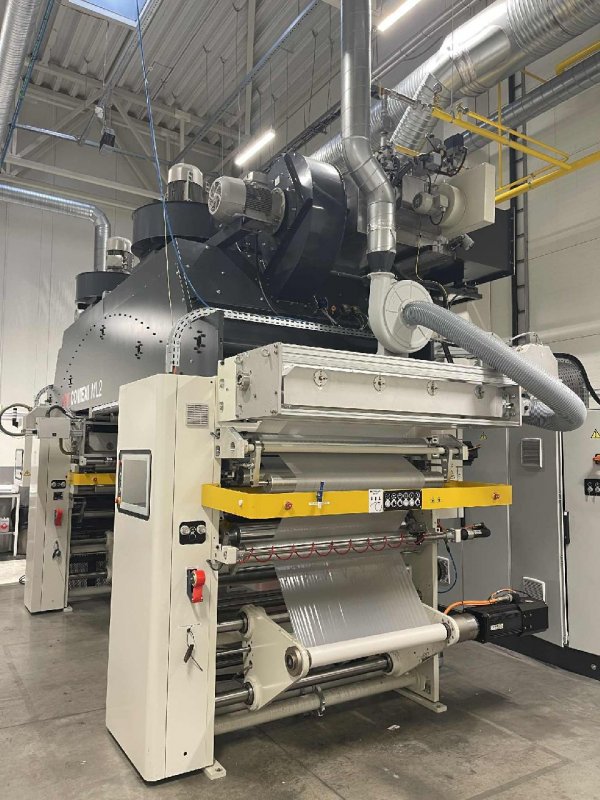

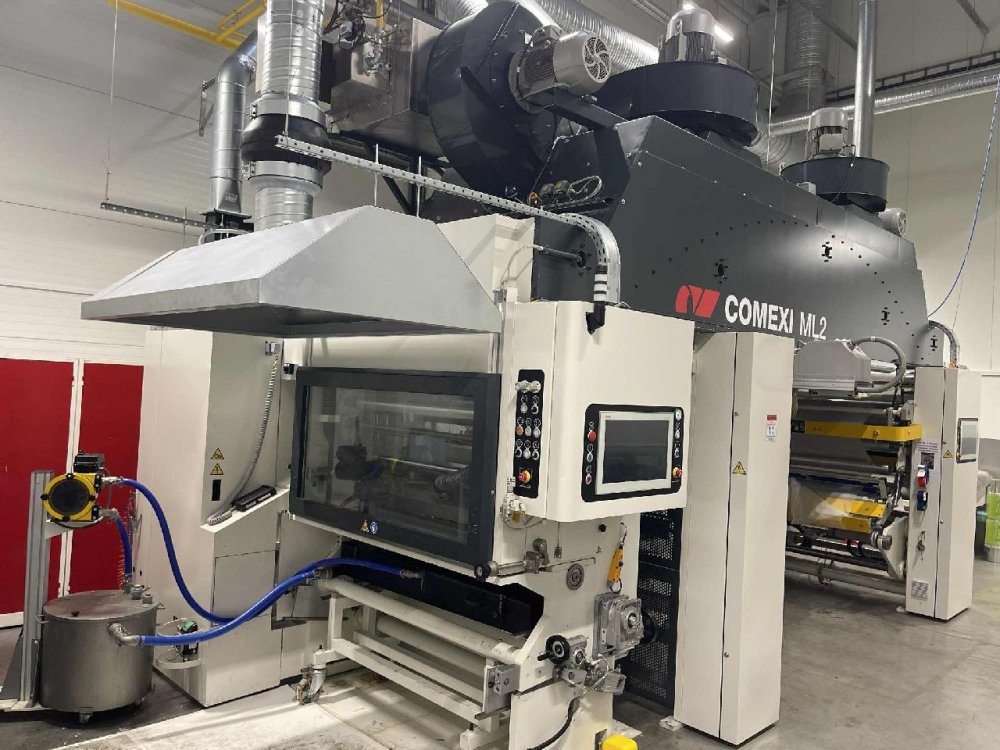

- Machine Code
- LA506
- Manufacturer
- COMEXI
- Modello
- ML2
- Year
- 2021
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1330
- Materials
- •LDPE, LLDPE 30-200 micron •NYLON CAST 30-80 micron •OPA 10-50 micron •PET 10-50 micron •PP CAST 30-200 micron •PAPER 40-200 gsm •BOPP 12-80 micron
- Speed
- 450m/min
- First unwinder type
- Single position shaftless
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Single position shaftless
- Max diameter reel unwinder
- 1000
- Max diameter reel unwinder
- 1000
- Rewinder type
- Single position shaftless
- Max diameter reel rewinder
- 1000

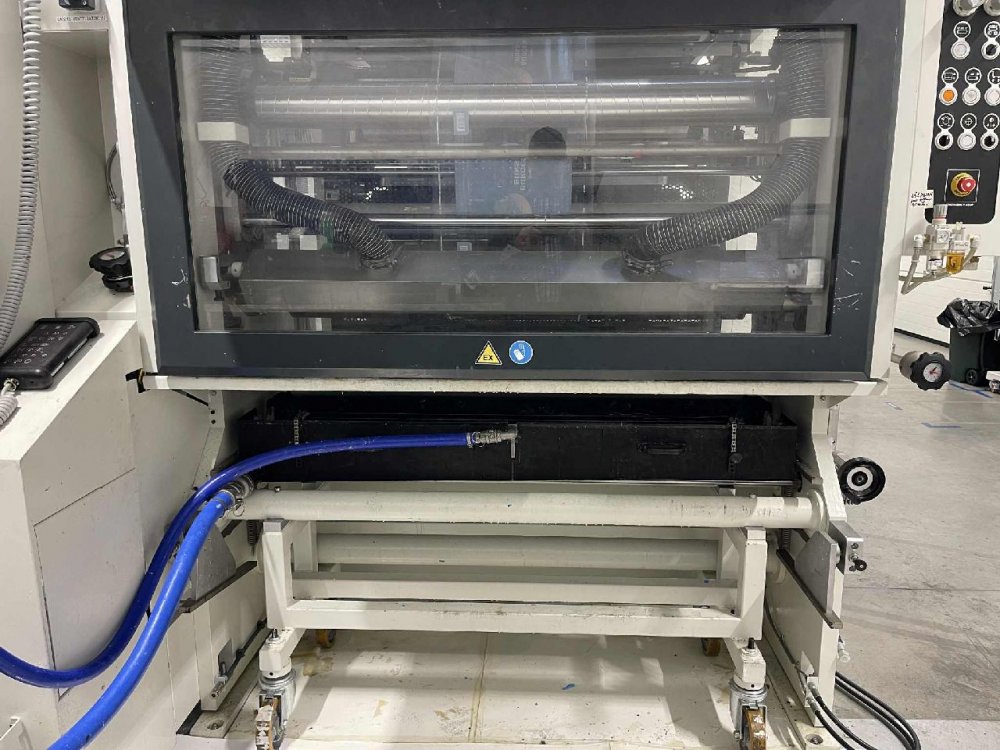

- Coating unit
- With 2 trolleys: 1x Rotogravure. 1 semi flexo. Pump for water/solvent based glue. Application Solvent and water based lamination, coatings and lacquering
- Drying
- 2 blower fan and 2x suction fans, heating system Gas burners

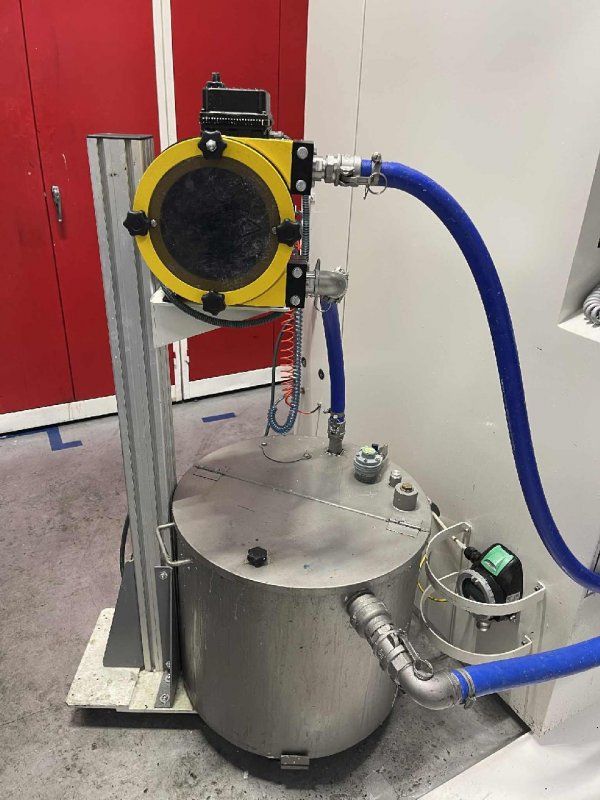

- pumping mixing unit
- Yes
- Corona treatment
- 2 CORONA TREATERS for primary unwinder and secondary unwinder, each 6KW
- Coating rollers
- 3 pieces ( cylinder type )
- Note
- Minimum width of web to be laminated: 500 mm (19.6”) Solvent base and water-based section (Rotogravure application trolley) Flexo printing section (application trolley in flexo ANTISTATIC BARS for primary unwinder , for secondary unwinder , and rewinder
| Machine Code | LA506 |
| Manufacturer | COMEXI |
| Modello | ML2 |
| Year | 2021 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1330 |
| Materials | •LDPE, LLDPE 30-200 micron •NYLON CAST 30-80 micron •OPA 10-50 micron •PET 10-50 micron •PP CAST 30-200 micron •PAPER 40-200 gsm •BOPP 12-80 micron |
| Speed | 450m/min |
| First unwinder type | Single position shaftless |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Single position shaftless |
| Max diameter reel unwinder | 1000 |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Single position shaftless |
| Max diameter reel rewinder | 1000 |
| Coating unit | With 2 trolleys: 1x Rotogravure. 1 semi flexo. Pump for water/solvent based glue. Application Solvent and water based lamination, coatings and lacquering |
| Drying | 2 blower fan and 2x suction fans, heating system Gas burners |
| pumping mixing unit | Yes |
| Corona treatment | 2 CORONA TREATERS for primary unwinder and secondary unwinder, each 6KW |
| Coating rollers | 3 pieces ( cylinder type ) |
| Note | Minimum width of web to be laminated: 500 mm (19.6”) Solvent base and water-based section (Rotogravure application trolley) Flexo printing section (application trolley in flexo ANTISTATIC BARS for primary unwinder , for secondary unwinder , and rewinder |
