Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
Ask more informations
- Machine Code
- LA429
- Manufacturer
- NORDMECCANICA
- Modello
- DUPLEX SL 450
- Year
- 2017
- Application
- Duplex lamination
- Type of lamination/coating
- Solventless
- Working width (mm)
- 1100
- Materials
- BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm
- Speed
- 450 mpm
- First unwinder type
- Turret automatic non stop
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret automatic non stop
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret automatic non stop
- Max diameter reel rewinder
- 1000
- Coating unit
- Solventless 5 rollers staggered
- pumping mixing unit
- yes included
- Corona treatment
- yes
- Coating rollers
- 20 rubber transfer rollers
| Machine Code | LA429 |
| Manufacturer | NORDMECCANICA |
| Modello | DUPLEX SL 450 |
| Year | 2017 |
| Application | Duplex lamination |
| Type of lamination/coating | Solventless |
| Working width (mm) | 1100 |
| Materials | BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm |
| Speed | 450 mpm |
| First unwinder type | Turret automatic non stop |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret automatic non stop |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret automatic non stop |
| Max diameter reel rewinder | 1000 |
| Coating unit | Solventless 5 rollers staggered |
| pumping mixing unit | yes included |
| Corona treatment | yes |
| Coating rollers | 20 rubber transfer rollers |
Coatema
-
Machine Code: LA469
-
Year: 2017
-
Working width (mm): 700

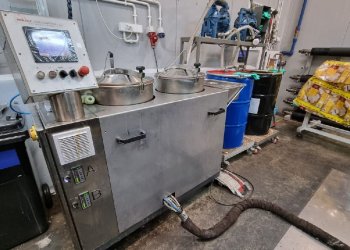

UTECO IZAR
-
