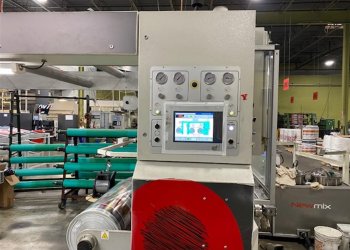

UTECO IZAR Laminator / coating machine SOLVENTLESS

Typical application for flexible packaging are solventless laminators which employ a 2 component glue. Dry and wet bond laminators use solvent base or water based glues. In flexible packaging industry are also common , so called, combi machines.

Machine Code	LA334
Manufacturer	UTECO
Model	IZAR
Year	2014
Application	Duplex lamination
Type of lamination/coating	SOLVENTLESS
Working width (mm)	1450
Materials	All plastic film , Al foil , Paper up to 100 gsm
Speed	450 mpm
First unwinder type	Shaftless AC motor driven
Max diameter reel unwinder	1000
Secondary unwinder type	Shaftless AC motor driven
Max diameter reel unwinder	1000
Rewinder type	Shaftless AC motor driven
Max diameter reel rewinder	1000

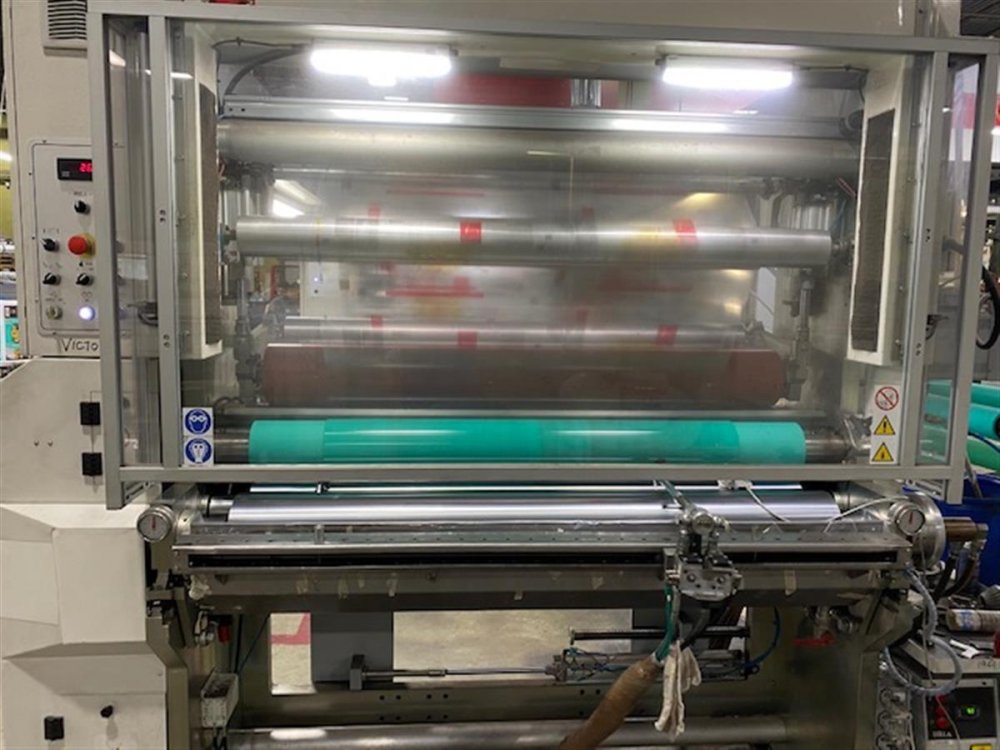

Coating unit	Solventless 4 rolls system with auto cleaning system for first three rollers

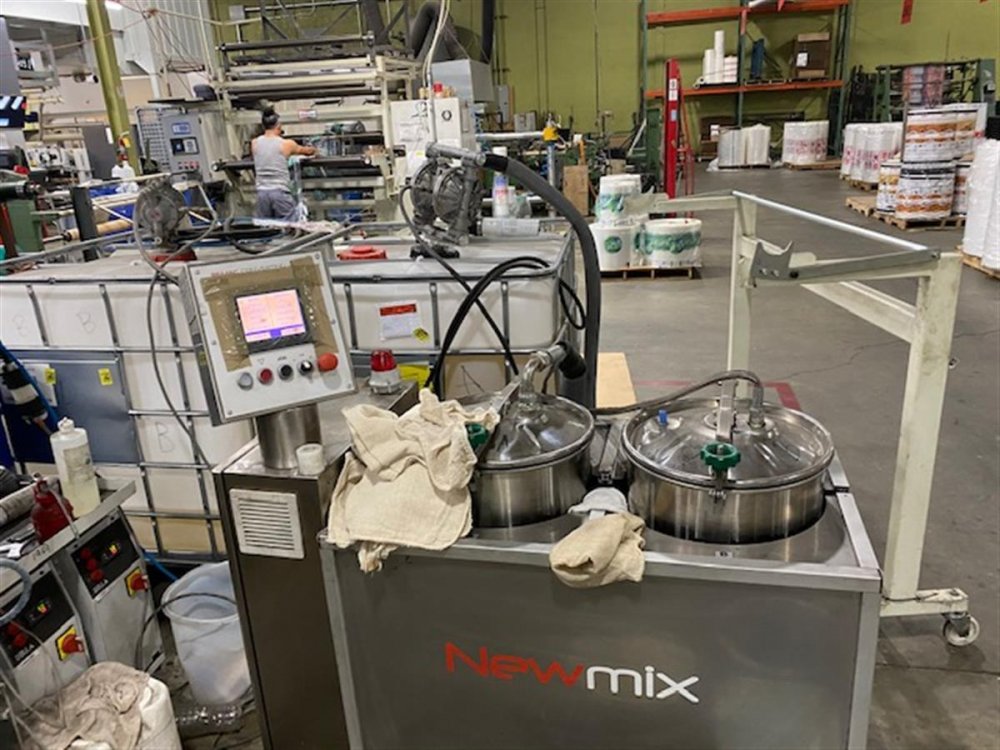

Pumping mixing unit	Remac “newmix v2” mixer for solventless adhesive

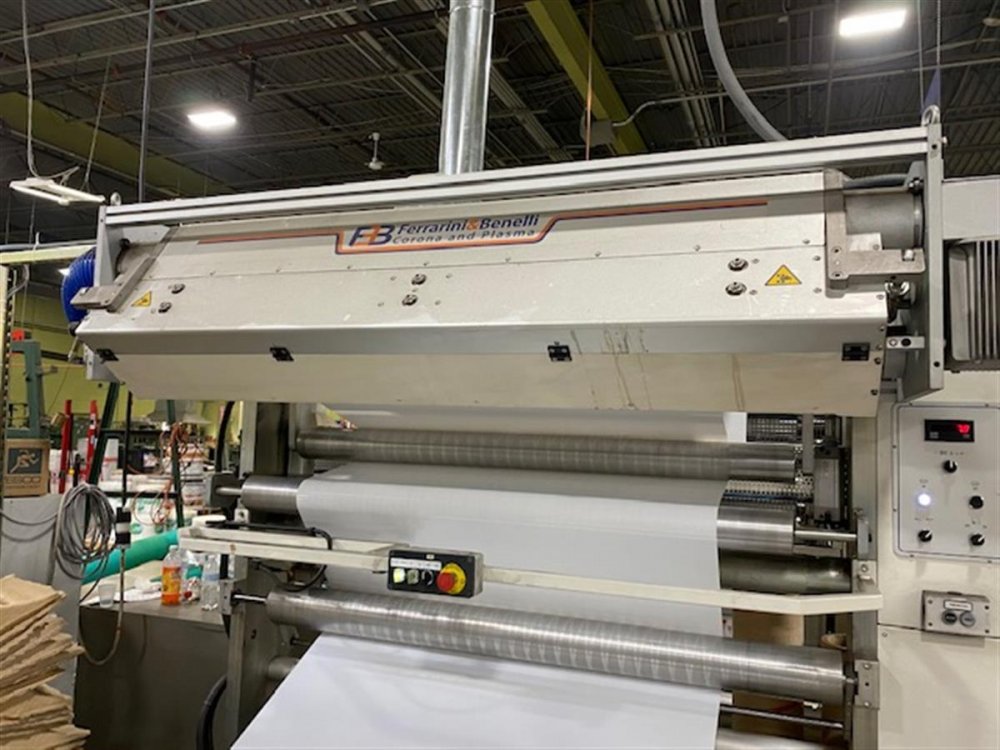

Corona treatment	Yes on secondary unwinder
Coating rollers	10
Additional information	2 heating units for coating rollers
