- Maschinencode
- LA334
- Hersteller
- UTECO
- Modello
- IZAR
- Baujahr
- 2016
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1450
- Materials
- All plastic film ( BOPP ,PET , LDPE , HDPE , BOPA , CPP , PVC , Nylon , Al foil , Paper up to 100 gsm and laminates.
- Speed
- 450 mpm
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000

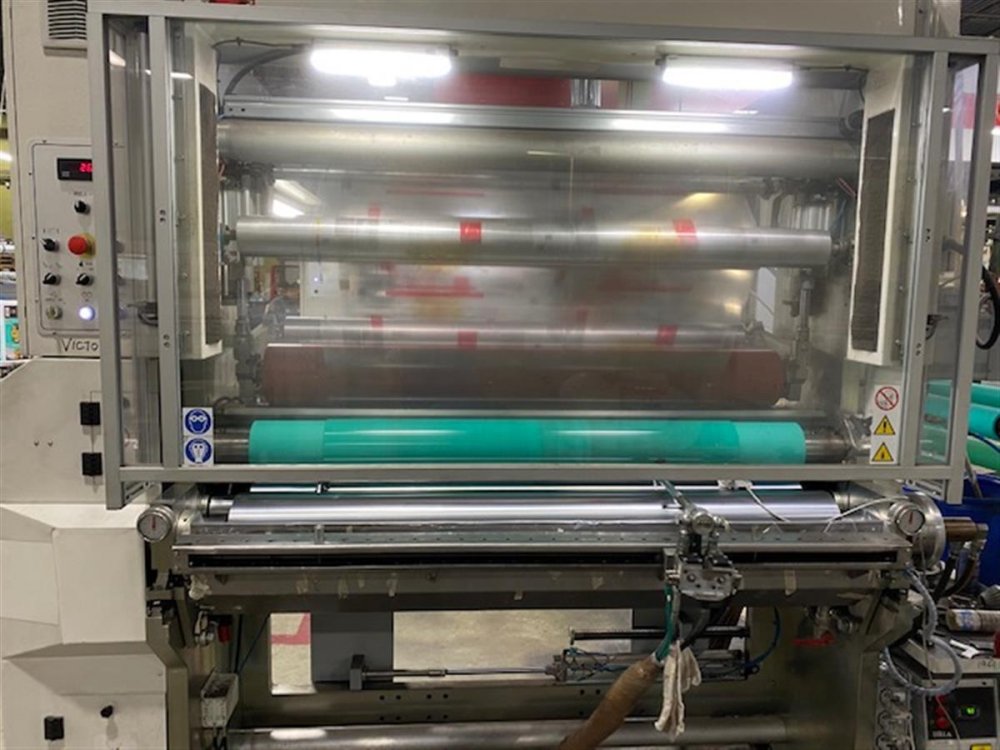

- Coating unit
- Solventless 4 rolls system with auto cleaning system for first three rollers

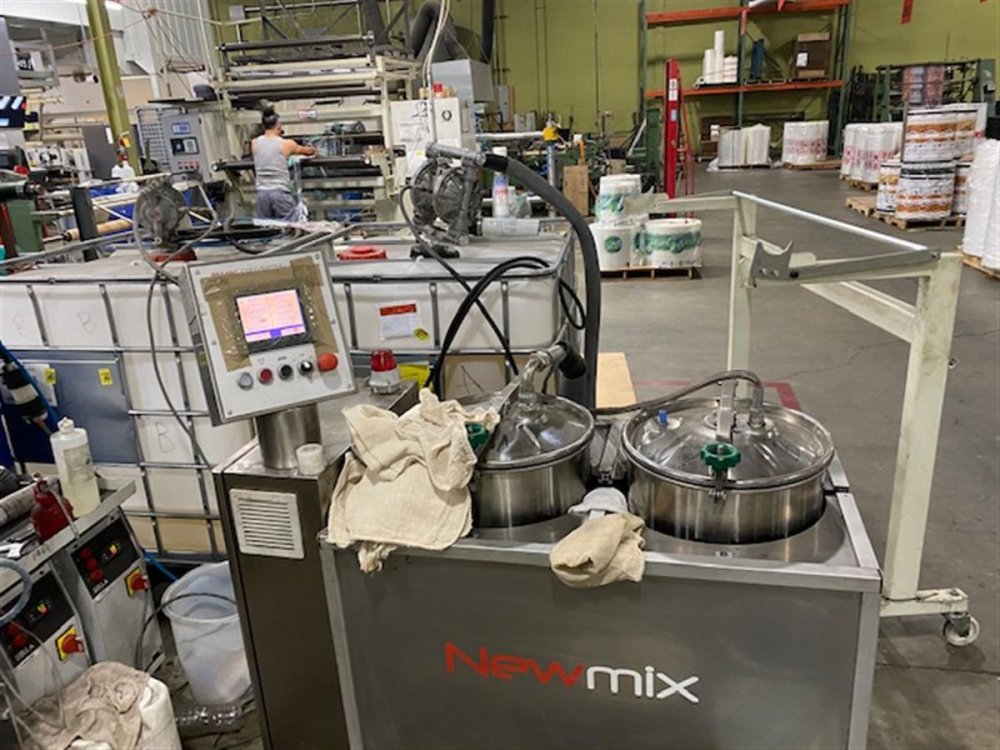

- pumping mixing unit
- Remac “newmix v2” mixer for solventless adhesive

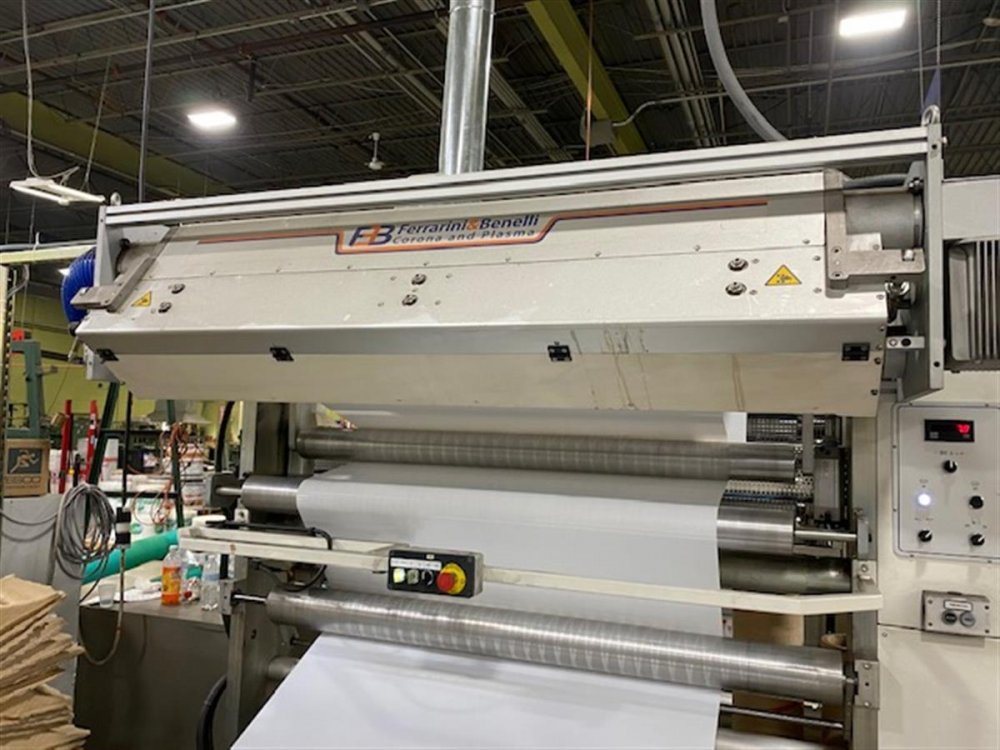

- Corona treatment
- Yes on secondary unwinder
- Coating rollers
- 10
- Note
- 2 heating units for coating rollers
| Maschinencode | LA334 |
| Hersteller | UTECO |
| Modello | IZAR |
| Baujahr | 2016 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1450 |
| Materials | All plastic film ( BOPP ,PET , LDPE , HDPE , BOPA , CPP , PVC , Nylon , Al foil , Paper up to 100 gsm and laminates. |
| Speed | 450 mpm |
| First unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Shaftless AC motor driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | Solventless 4 rolls system with auto cleaning system for first three rollers |
| pumping mixing unit | Remac “newmix v2” mixer for solventless adhesive |
| Corona treatment | Yes on secondary unwinder |
| Coating rollers | 10 |
| Note | 2 heating units for coating rollers |
