- Código Máquina
- LA334
- Constructor
- UTECO
- Modello
- IZAR
- Año
- 2016
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1450
- Materials
- All plastic film ( BOPP ,PET , LDPE , HDPE , BOPA , CPP , PVC , Nylon , Al foil , Paper up to 100 gsm and laminates.
- Speed
- 450 mpm
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000

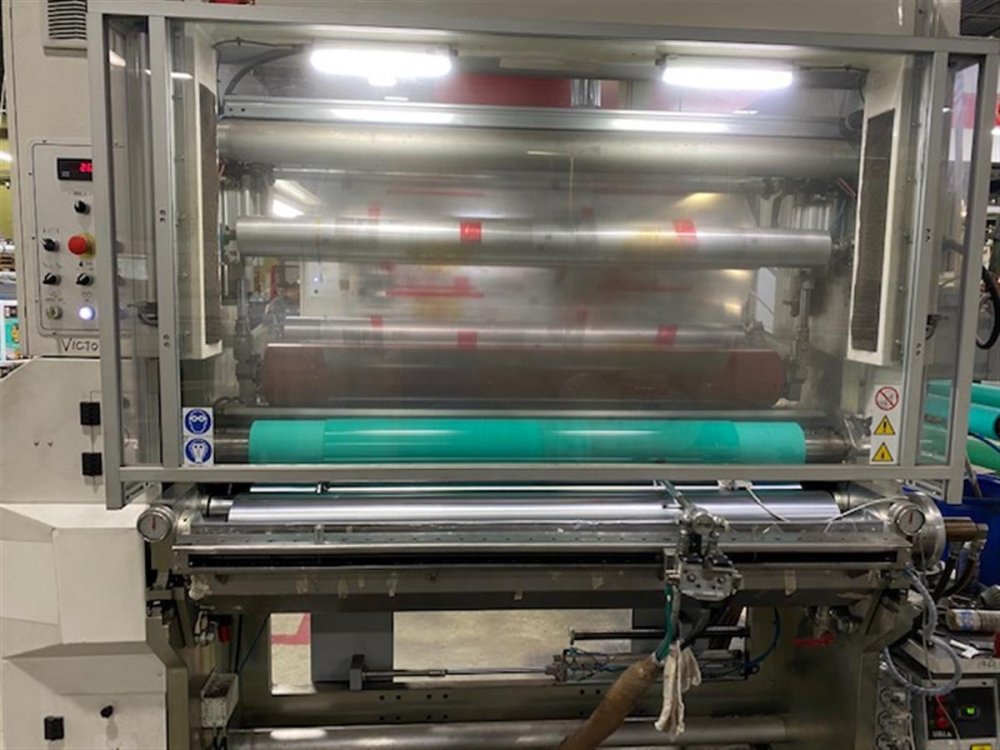

- Coating unit
- Solventless 4 rolls system with auto cleaning system for first three rollers

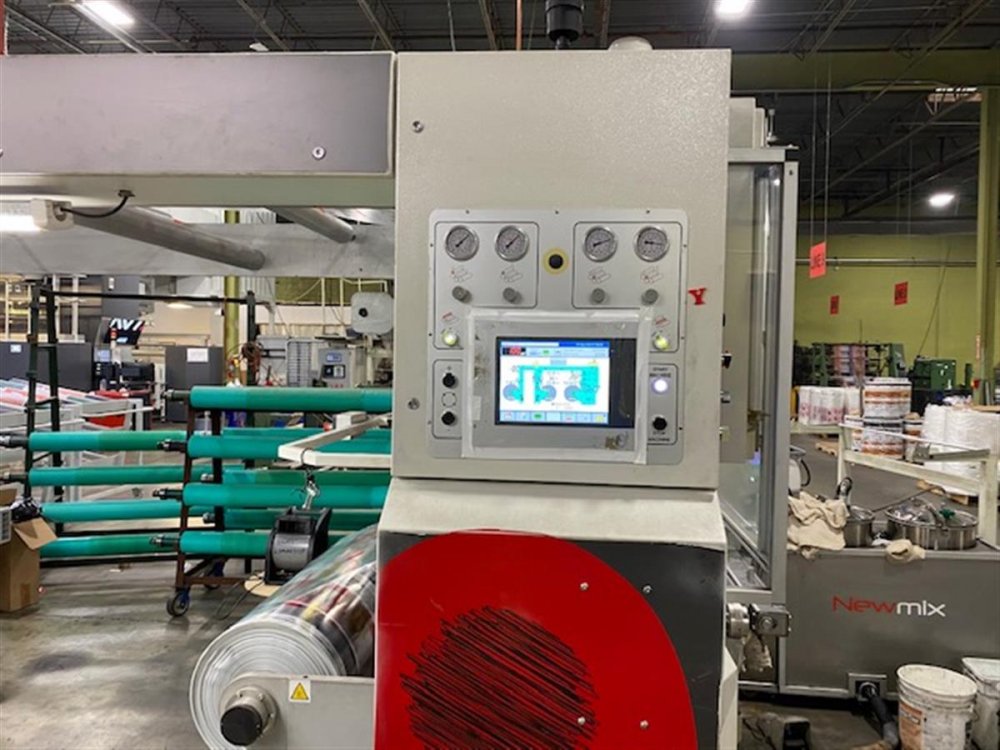

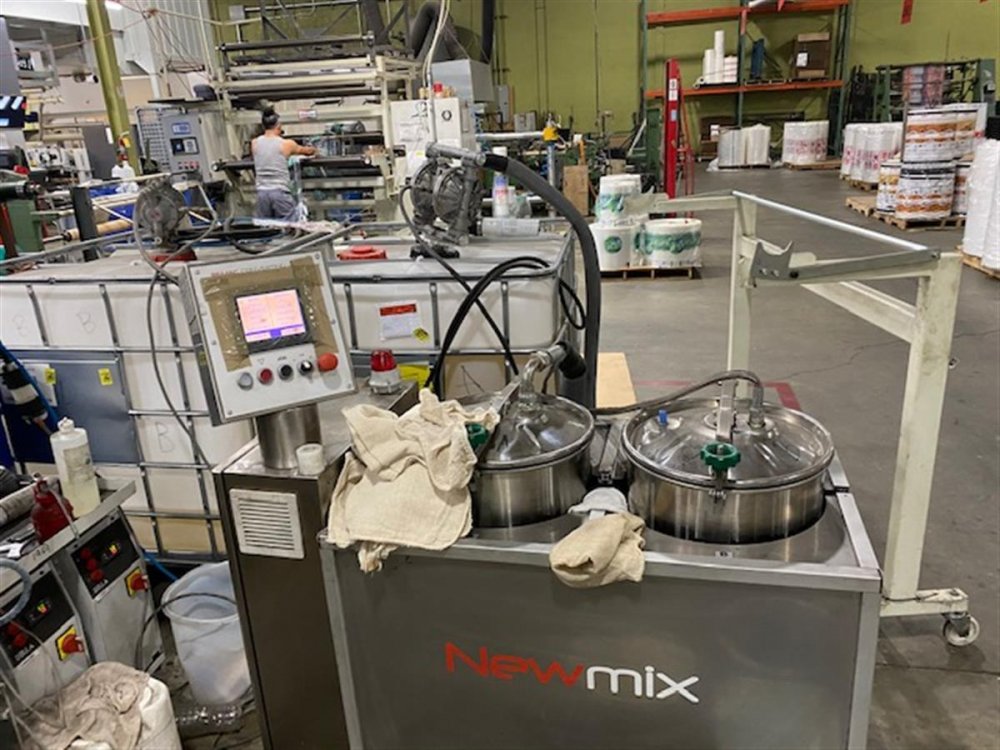

- pumping mixing unit
- Remac “newmix v2” mixer for solventless adhesive

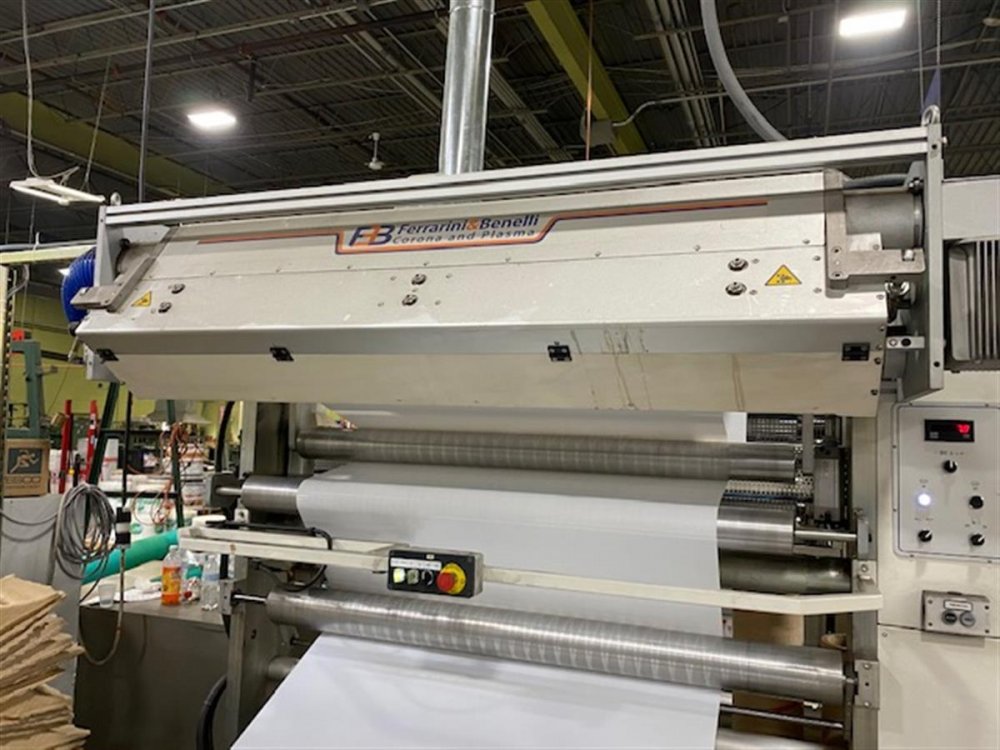

- Corona treatment
- Yes on secondary unwinder
- Coating rollers
- 10
- Note
- 2 heating units for coating rollers
Código Máquina | LA334 |
Constructor | UTECO |
Modello | IZAR |
Año | 2016 |
Application | Duplex lamination |
Type of lamination/coating | SOLVENTLESS |
Working width (mm) | 1450 |
Materials | All plastic film ( BOPP ,PET , LDPE , HDPE , BOPA , CPP , PVC , Nylon , Al foil , Paper up to 100 gsm and laminates. |
Speed | 450 mpm |
First unwinder type | Shaftless AC motor driven |
Max diameter reel unwinder | 1000 |
Secondary unwinder type | Shaftless AC motor driven |
Max diameter reel unwinder | 1000 |
Rewinder type | Shaftless AC motor driven |
Max diameter reel rewinder | 1000 |
Coating unit | Solventless 4 rolls system with auto cleaning system for first three rollers |
pumping mixing unit | Remac “newmix v2” mixer for solventless adhesive |
Corona treatment | Yes on secondary unwinder |
Coating rollers | 10 |
Note | 2 heating units for coating rollers |
NORDMECCANICA SUPER SIMPLEX
-
Código Máquina: LA443
-
Año: 2015
-
Working width (mm): 1520
NORDMECCANICA SIMPLEX
-
Código Máquina: LA440
-
Año: 1998
-
Working width (mm): 1320
KBA FLEXOTECNICA EVO LAM
-
Código Máquina: LA416
-
Año: 2020
-
Working width (mm): 1300
Bubani Adhesive tape solvent base
-
Código Máquina: LA312
-
Año: 1990
-
Working width (mm): 1350
CML MIRACH
-
Código Máquina: LA453
-
Año: 2008
-
Working width (mm): 1300
SCHIAVI ECOFLEX CL600
-
Código Máquina: LA425
-
Año: 2003
-
Working width (mm): 1350
