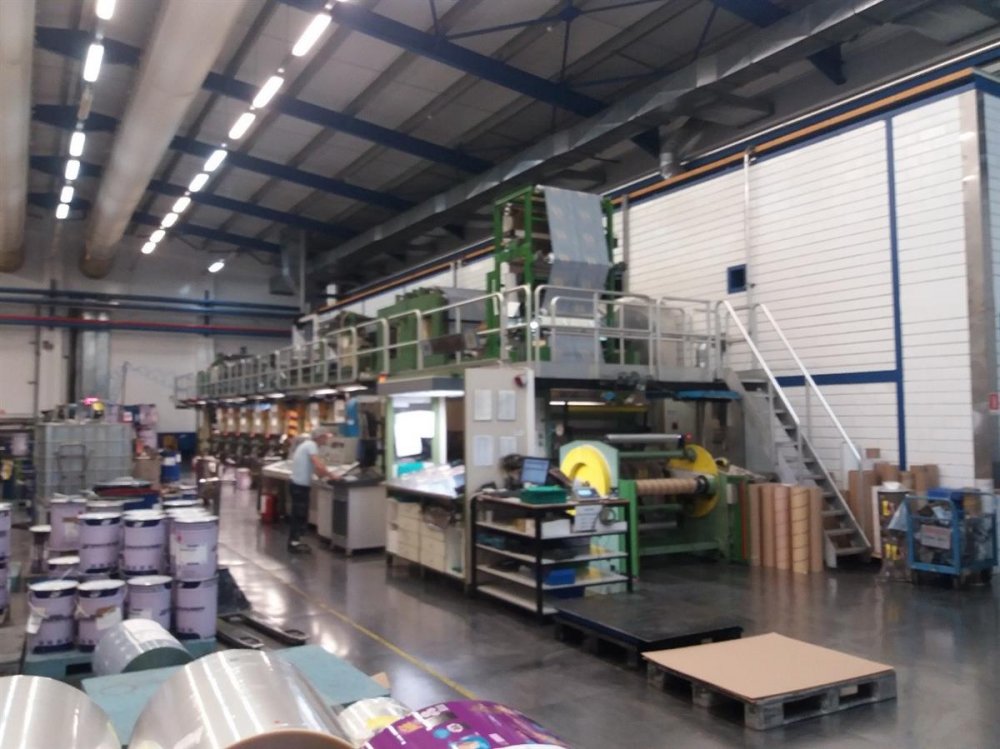

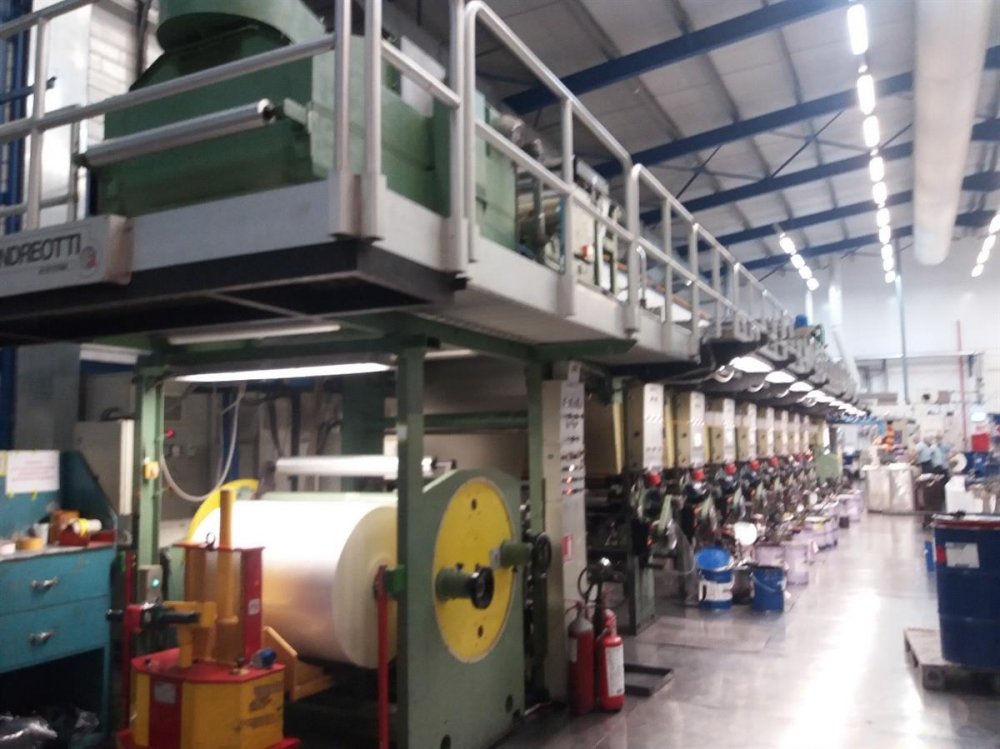

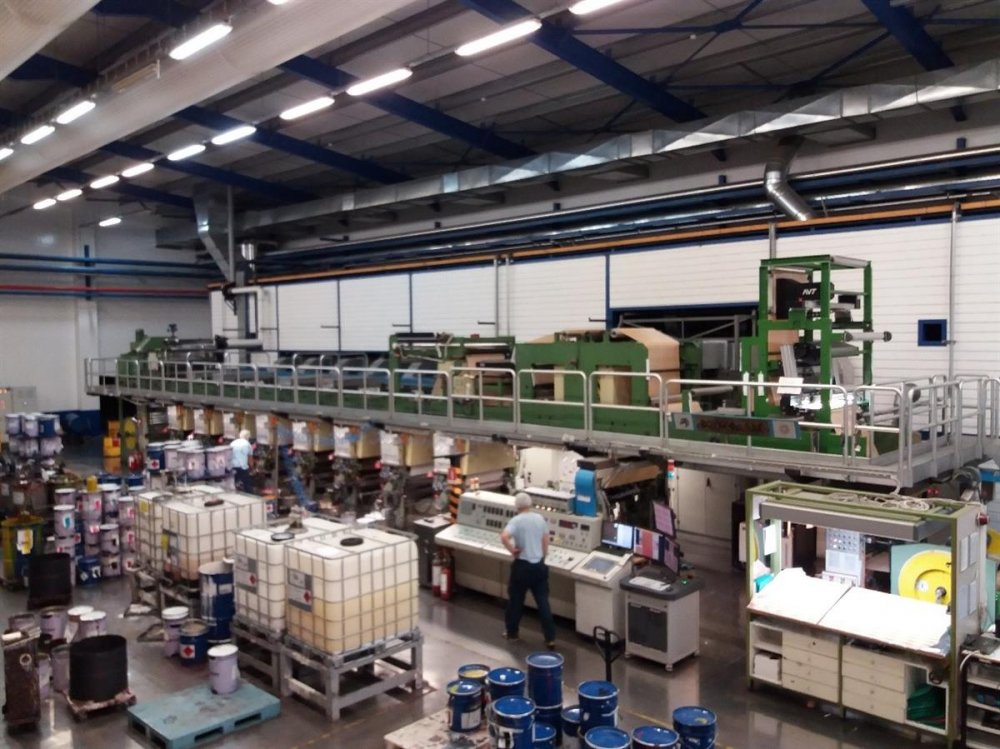

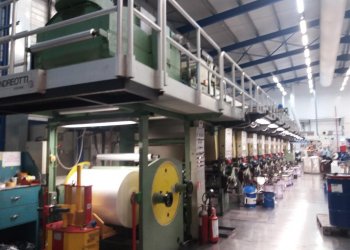

ANDREOTTI ROTOPAK 15/35 Rotogravure printing machine 9 colors ** SOLD ** Ask more informations about a similar one

Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.

Machine Code RO180
Manufacturer ANDREOTTI
Model ROTOPAK 15/35
Year 1993
Number of colors 9
Overhaul/renovation fully refurbished in 2010 – drying and ventilation, all idle rollers, all water-cooled cylinders, PLC upgrade, register control new
Web width (mm) 1020
Print width (mm) 1000
Print repeat range (mm) 350-860 mm
Drying specifications Preconditioning tunnel 73.100 Kcal/h .Max temperature 120 0 C . Units 1-3 double hood 23.700+87.750 kcal/h. Max. temperature 110 0 C . Units 4-8 double hood 2 X 48.750 kcal/h . Max. temperature 70 0 C Unit 8 extension 78.400 kcal/h . Max. temperature 20 0 C Unit 9 Double hood 110.400+216.450 kcal/h . Max. temperature 150 0 C Total heath requirement for the thermal oil 1.300.000 kcal/h, 100.000 l/h, 250 0 C
Drying heat surce Drying with thermal oil (year 2010)
Unwinder type VEA year 2005 shafted, turret type flying splice
Max reel diameter unwinder (mm) 800
Rewinder type VEA year 2005 shafted, turret type flying splice
Max reel diameter rewinder (mm) 800
Videocamera Drello print inspection camera V5000 (year 2011)
Register control Register control Registron 5100 (year 2012)
Vyscosity control Viscosity control Eltromat (year 1996) 7 pcs.
Additional information 250 m/min printing speed Min diam for automatic flying splice :450 mm Web tension range : 3 to 30 kg Shafts for F 70/76 mm and F 152 mm Materials to print BOPP 20-60µm, PET 10-60 µm, BOPA 15-60 µm, paper and laminates 30-100 gsm ESA Spengler Heliofurn H 84/89 (year 1996) 6 units Pressure rollers for ESA 15 pcs. LEL control Honeywell ( year2009 ) Antistatic bars Spengler Cylinder insertion trolleys13 PCS Doctor blade holders 18PCS Ink pumps 15PCS Ink tanks 18PCS Ink trays for units 1 to 7 : 19 pcs Ink trays small for units 1 to 7 : 14 PCS Ink trays for unit 8 :2PCS Ink pans for unit 9 :3PCS Transmission gears 16PCS Bushings :40PCS Cylinder shafts (two widths cylinders 1100 and 880 mm)) 30+23 Pressure rollers (shafted) :46PCS Turning-bars after print unit 8 Machine is fully operational and may be inspected in production.

** SOLD **
