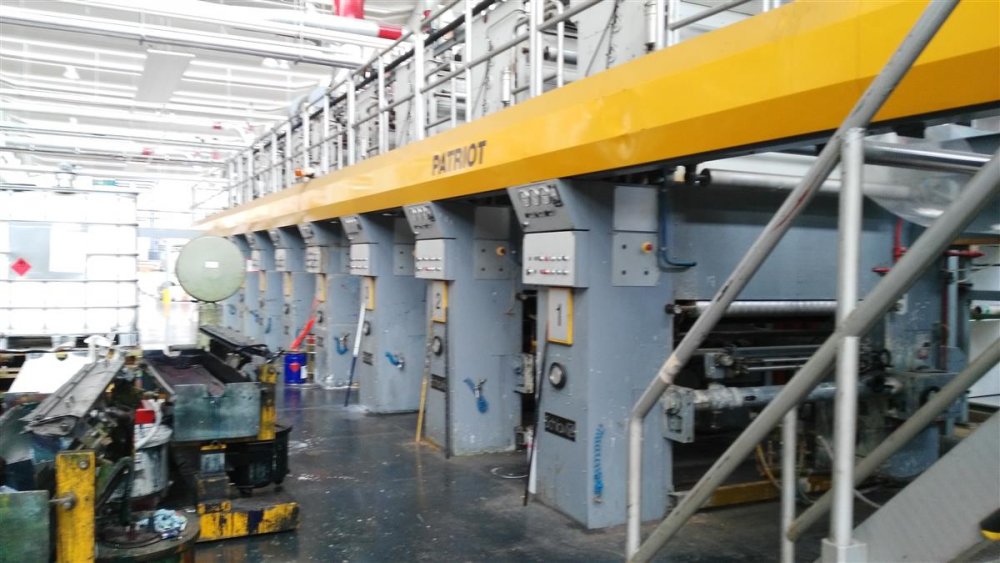

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO147
- Manufacturer
- SCHIAVI
- Modello
- PATRIOT
- Year
- 1995
- Number of colors
- 8
- Print possibilities
- 7+1, 8+0
- Drive
- Cardan
- Trolley system
- Yes
- Web width (mm)
- 1430
- Print width (mm)
- 1400
- Print repeat range (mm)
- 400-1000 mm

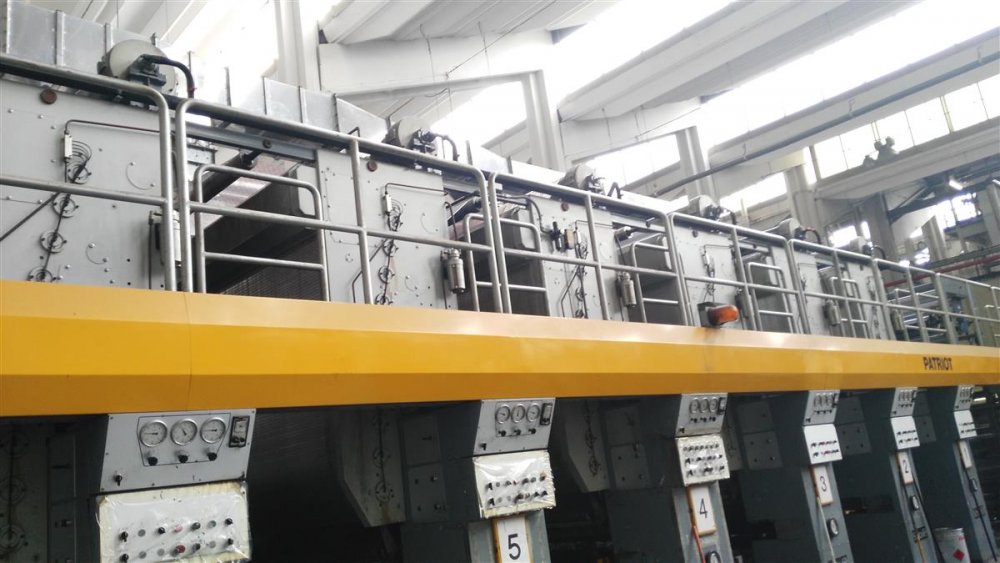

- Drying specifications
- units 1 to 7 , 1 blowing fan each unit , single drying hood 2, 5 mt , and one main exhaust fan ; for unt 8 double drying hood 2 x 2,,5 mt , 1 blowing and 1 exhaust . Automatic air recirculation unit with LEL control by Nira for all units
- Drying heat surce
- Thermo oil heaters

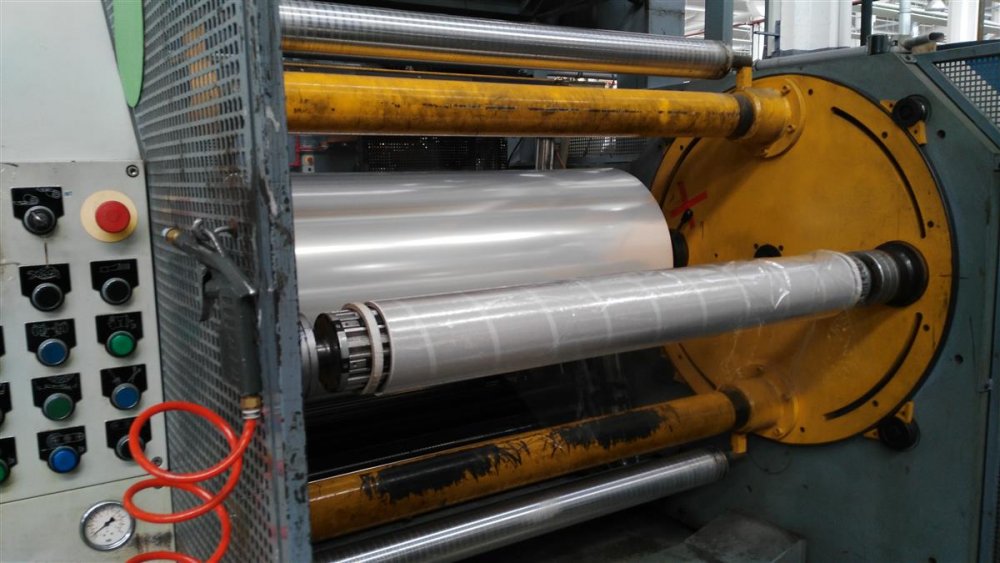

- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000

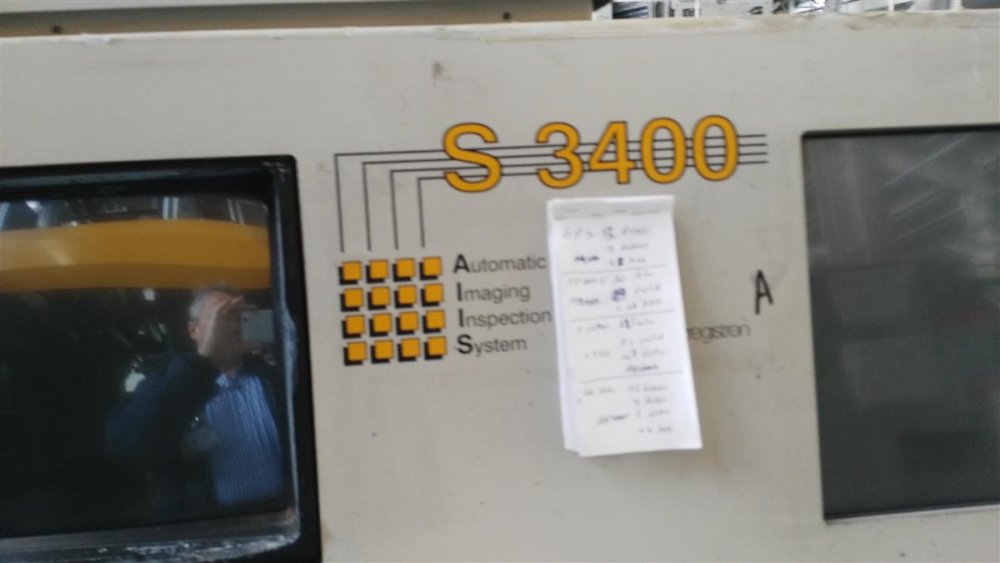

- Videocamera
- BST
- Register controll
- BOBST S 3100
- Vyscosity control
- 8 automatic Selectra
- Corona treatment
- yes by MERO
- Print cylinders
- 300
- Note
- 14 trolleys Fire protection system on all units
| Machine Code | RO147 |
| Manufacturer | SCHIAVI |
| Modello | PATRIOT |
| Year | 1995 |
| Number of colors | 8 |
| Print possibilities | 7+1, 8+0 |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1430 |
| Print width (mm) | 1400 |
| Print repeat range (mm) | 400-1000 mm |
| Drying specifications | units 1 to 7 , 1 blowing fan each unit , single drying hood 2, 5 mt , and one main exhaust fan ; for unt 8 double drying hood 2 x 2,,5 mt , 1 blowing and 1 exhaust . Automatic air recirculation unit with LEL control by Nira for all units |
| Drying heat surce | Thermo oil heaters |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | BST |
| Register controll | BOBST S 3100 |
| Vyscosity control | 8 automatic Selectra |
| Corona treatment | yes by MERO |
| Print cylinders | 300 |
| Note | 14 trolleys Fire protection system on all units |
