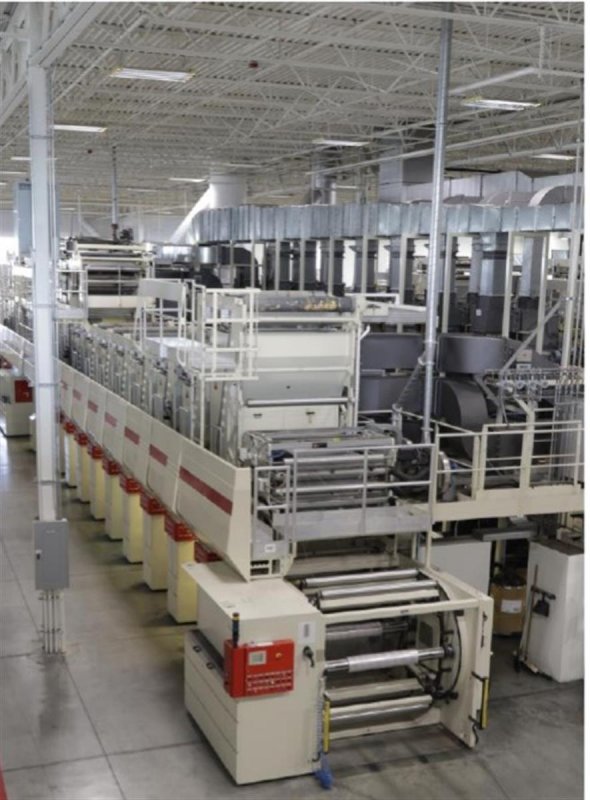

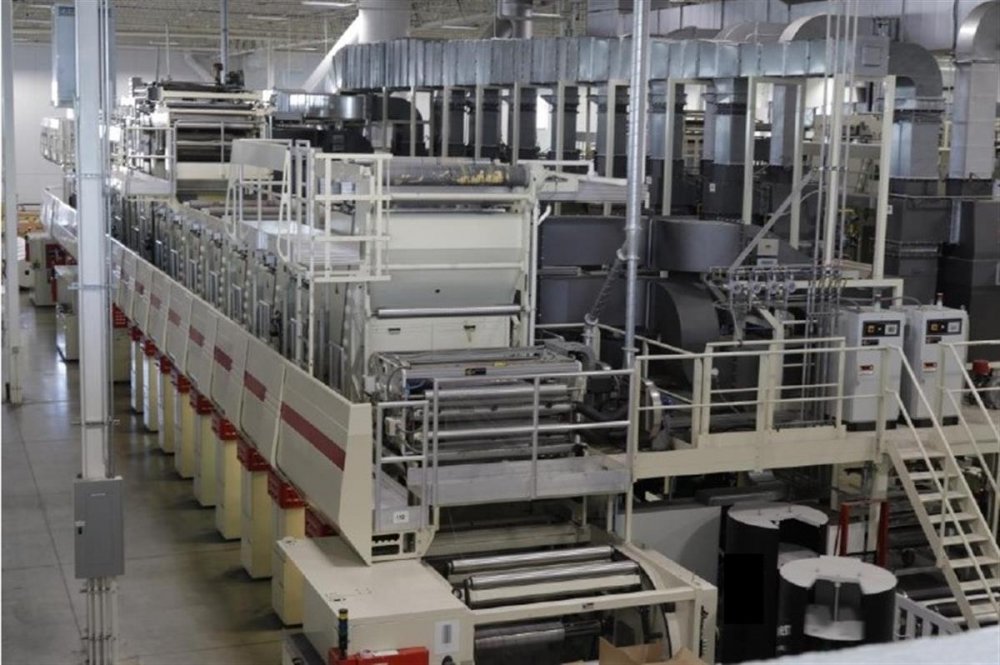

Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.
Ask more informations
- Machine Code
- RO242
- Manufacturer
- ACOM
- Modello
- RG Platinum
- Year
- 2006
- Number of colors
- 11
- Print possibilities
- 10 + cold seal, 9 + lamination + cold seal ,
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Print repeat range (mm)
- 450 - 950 mm
- Drying specifications
- Extended drying : Yes, stations 9, 10 and 11
- Drying heat surce
- Gas
- Unwinder type
- Automatic turret, Shafted
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Automatic turret, Shafted
- Max reel diameter rewinder (mm)
- 1200
- Videocamera
- Yes AVT
- Register controll
- DGC 700 Eltromat
- Corona treatment
- Yes
- Print cylinders
- 500
- Note
- Type of inks : solvent based Number of colors: 11, 1 of the stations designed for lamination purpose ; 1 of the stations for cold seal in register Max. mechanical speed : 450 m/min Webguide Inline lamination Turning Bar
| Machine Code | RO242 |
| Manufacturer | ACOM |
| Modello | RG Platinum |
| Year | 2006 |
| Number of colors | 11 |
| Print possibilities | 10 + cold seal, 9 + lamination + cold seal , |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Print repeat range (mm) | 450 - 950 mm |
| Drying specifications | Extended drying : Yes, stations 9, 10 and 11 |
| Drying heat surce | Gas |
| Unwinder type | Automatic turret, Shafted |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Automatic turret, Shafted |
| Max reel diameter rewinder (mm) | 1200 |
| Videocamera | Yes AVT |
| Register controll | DGC 700 Eltromat |
| Corona treatment | Yes |
| Print cylinders | 500 |
| Note | Type of inks : solvent based Number of colors: 11, 1 of the stations designed for lamination purpose ; 1 of the stations for cold seal in register Max. mechanical speed : 450 m/min Webguide Inline lamination Turning Bar |
ROTOMEC 3003-R-ES
-
Machine Code: RO234
-
Year: 2000
-
Web width (mm): 1030
CERUTTI PB510 - ES 960
-
Machine Code: RO238
-
Year: 2000
-
Web width (mm): 1420
CERUTTI R 960
-
Machine Code: RO149
-
Year: 2001
-
Web width (mm): 1300
KROENERT GRAVURE
-
Machine Code: RO236
-
Year: 1996
-
Web width (mm): 1020
CERUTTI R910
-
Machine Code: RO244
-
Year: 1997
-
Web width (mm): 1300

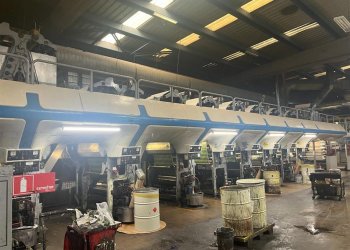

POLYTYPE POLYMATE 2
-
