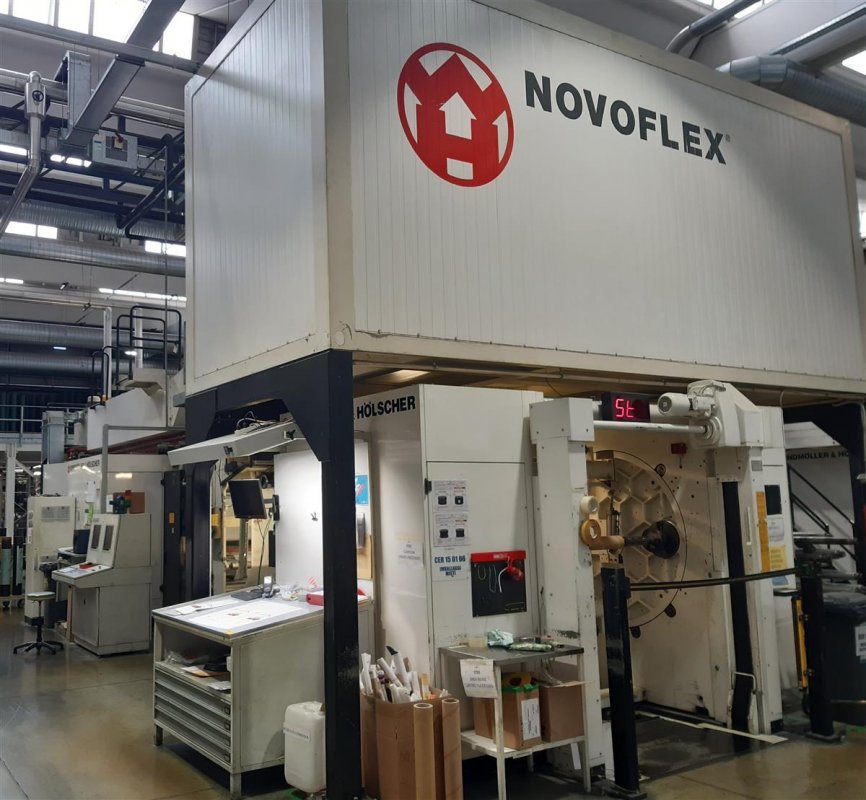

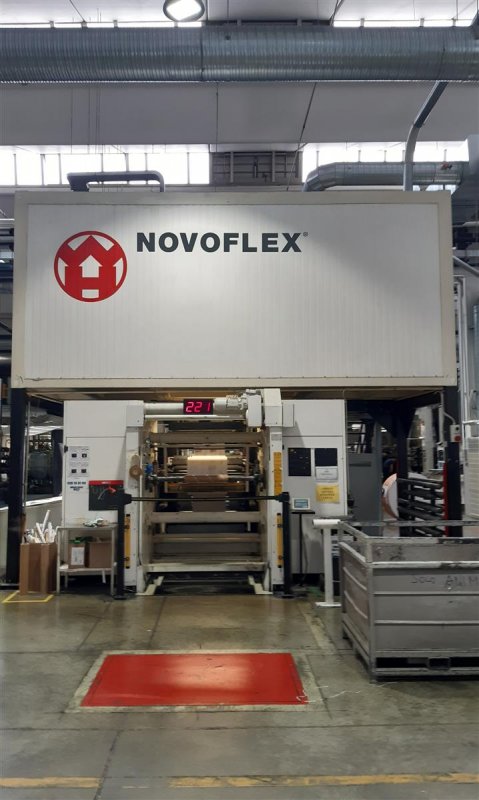

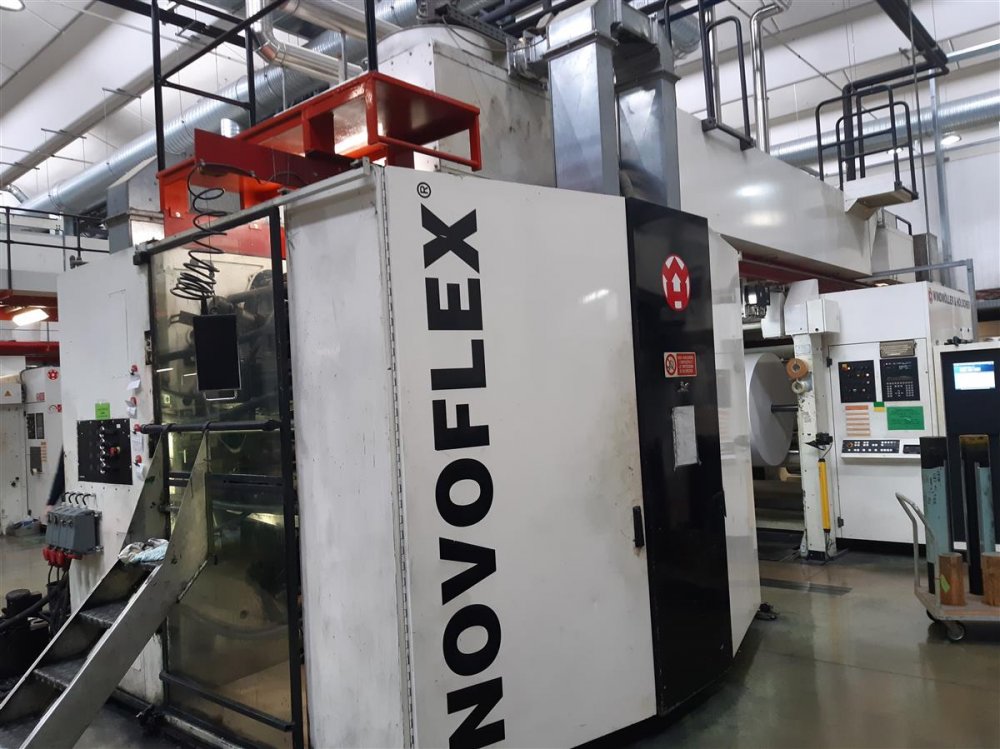

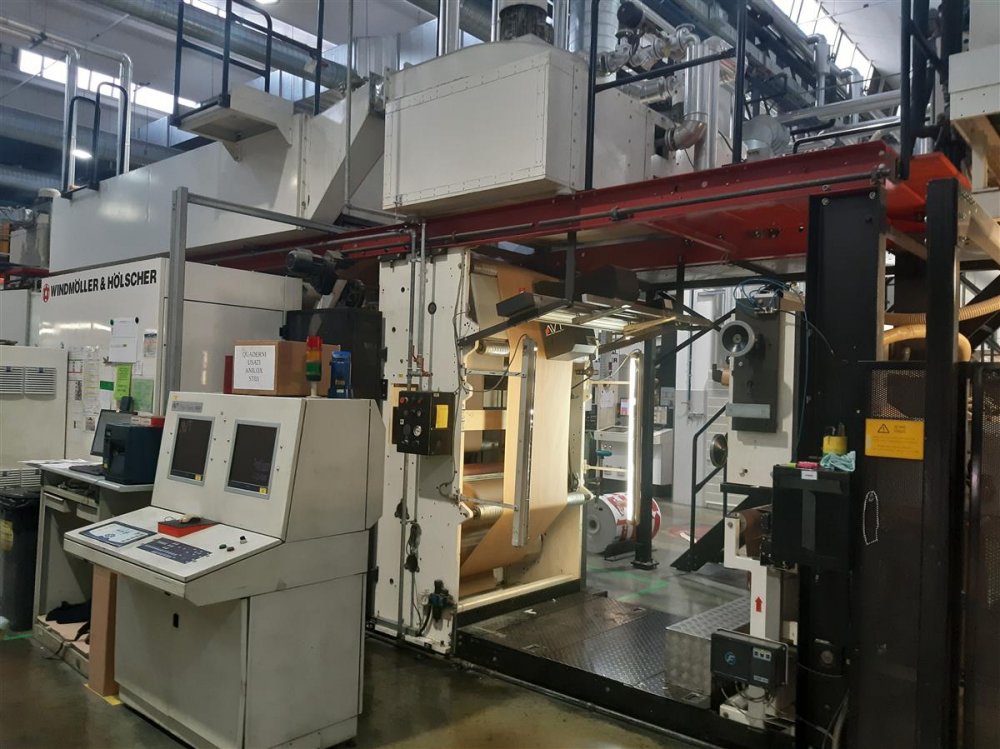

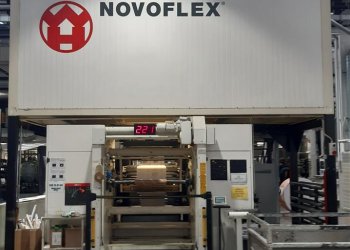

WINDMÖLLER & HÖLSCHER NOVOFLEX Flexo central drum printing press 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL882
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
NOVOFLEX
Year
2001
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1010
Min print repeat (mm)
300
Max print repeat (mm)
760
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
1300
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
1300
Drying
2 zones 4 fans , Thermo oil heaters
Videocamera
BST Premius digital
Web guides
Yes in and out
Inking system
Closed chamber doctor blades - Totally 14 chambers ( 8 in the machien + 6 spares )
Anilox
20 ceramic anilox sleeves
Print Sleeves
380 printing sleeves
Machine Code FL882
Manufacturer WINDMÖLLER & HÖLSCHER
Model NOVOFLEX
Year 2001
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1010
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1300
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1300
Drying 2 zones 4 fans , Thermo oil heaters
Videocamera BST Premius digital
Web guides Yes in and out
Inking system Closed chamber doctor blades - Totally 14 chambers ( 8 in the machien + 6 spares )
Anilox 20 ceramic anilox sleeves
Print Sleeves 380 printing sleeves
