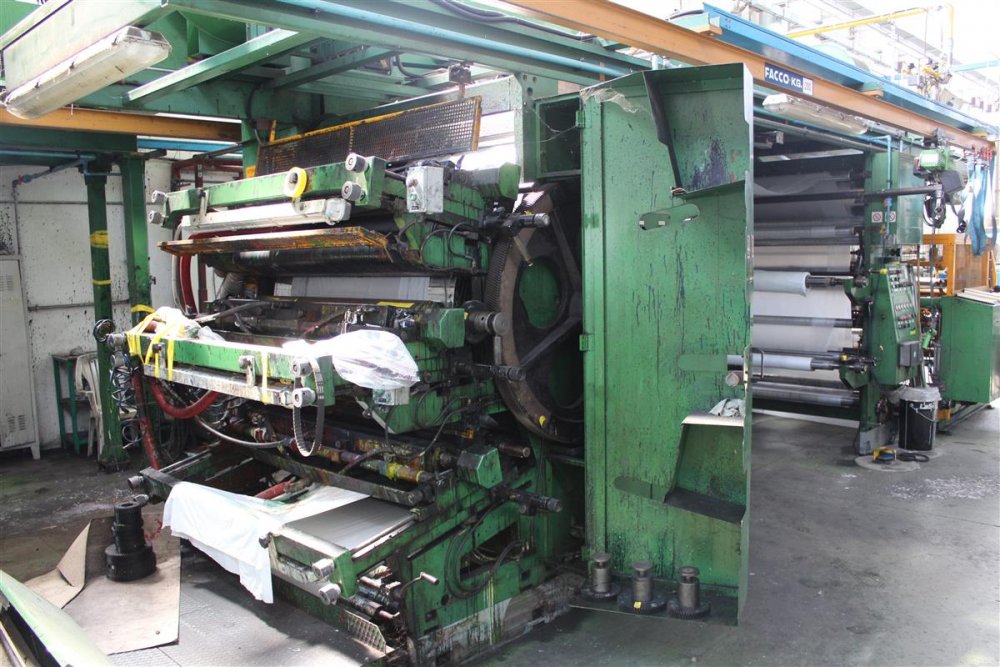

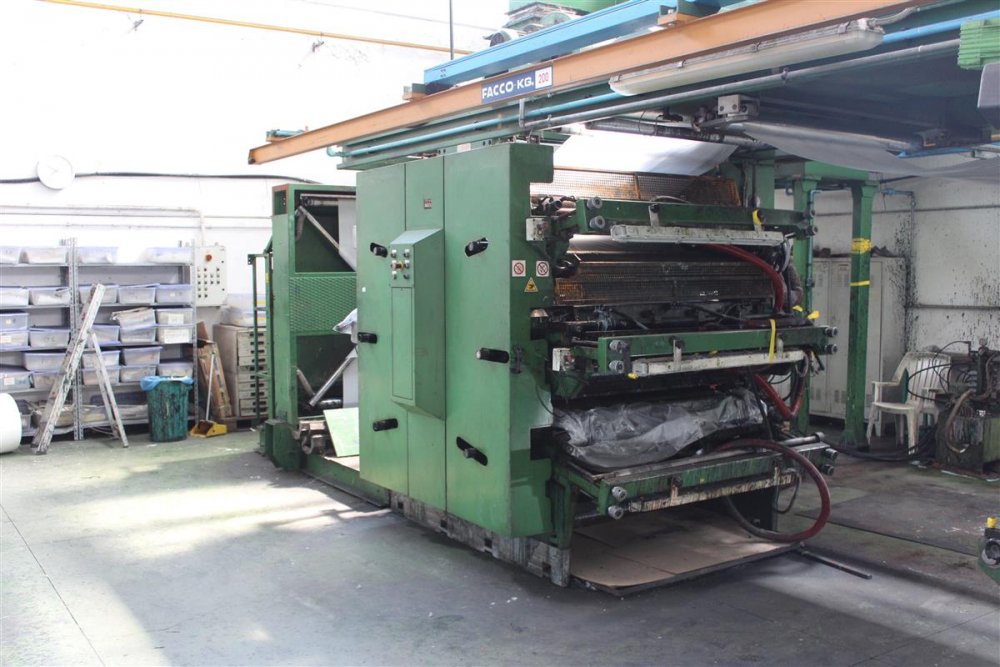

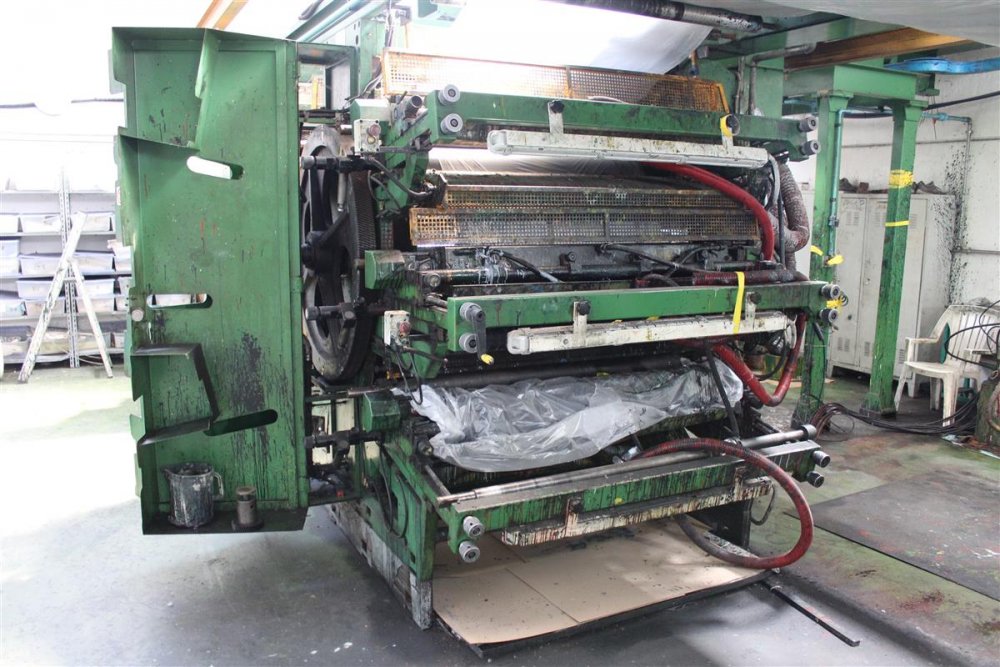

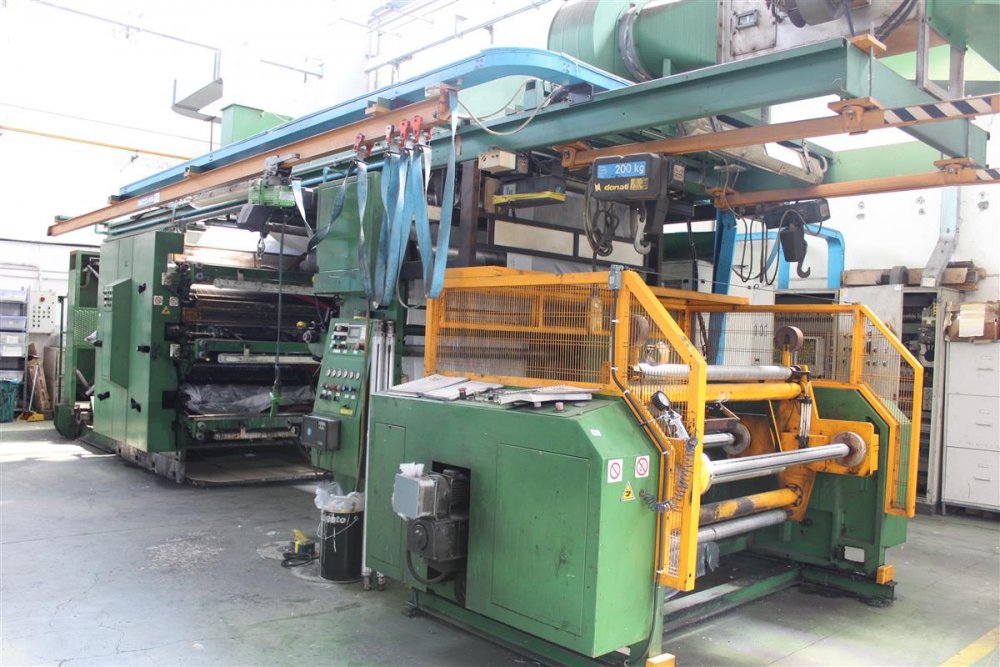

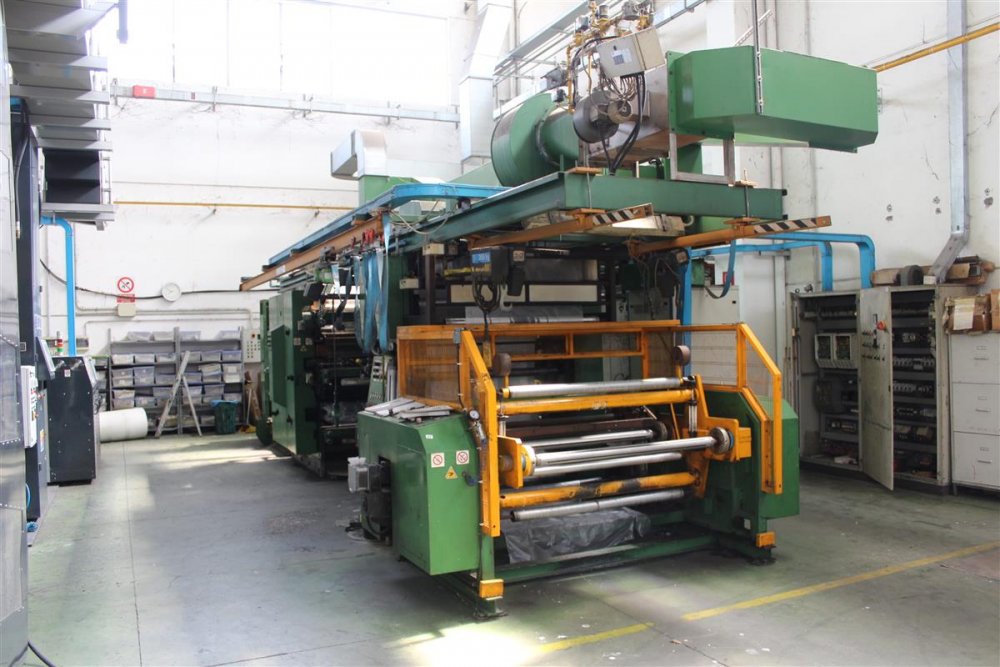

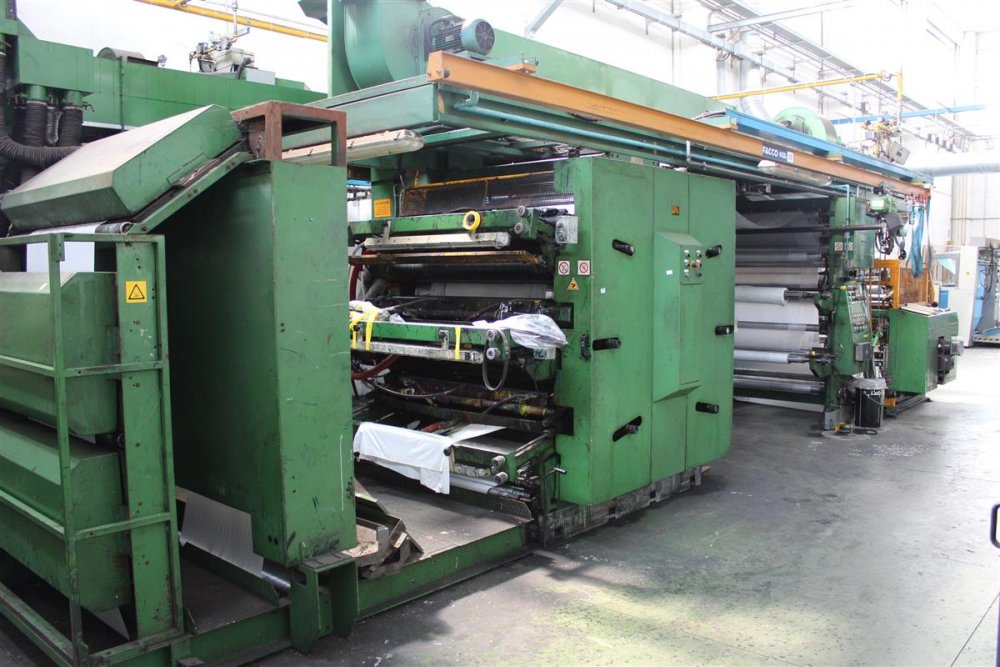

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL0965
- Manufacturer
- TCM
- Modello
- Midi 50 - 114
- Year
- 1998
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No

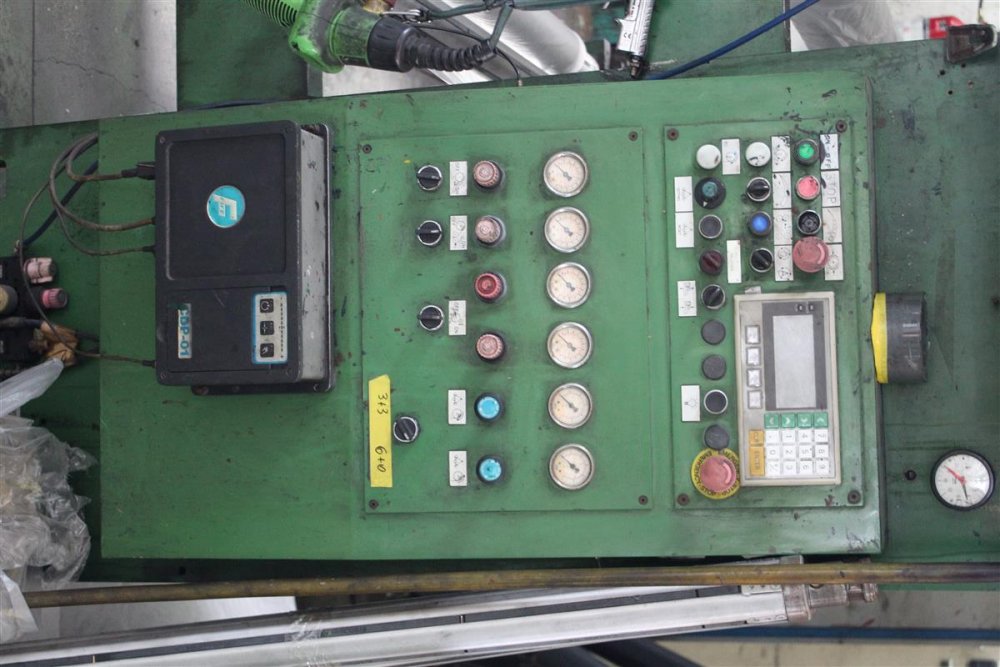

- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Doiuble Bracket
- Max reel diameter unwinder (mm)
- 1000

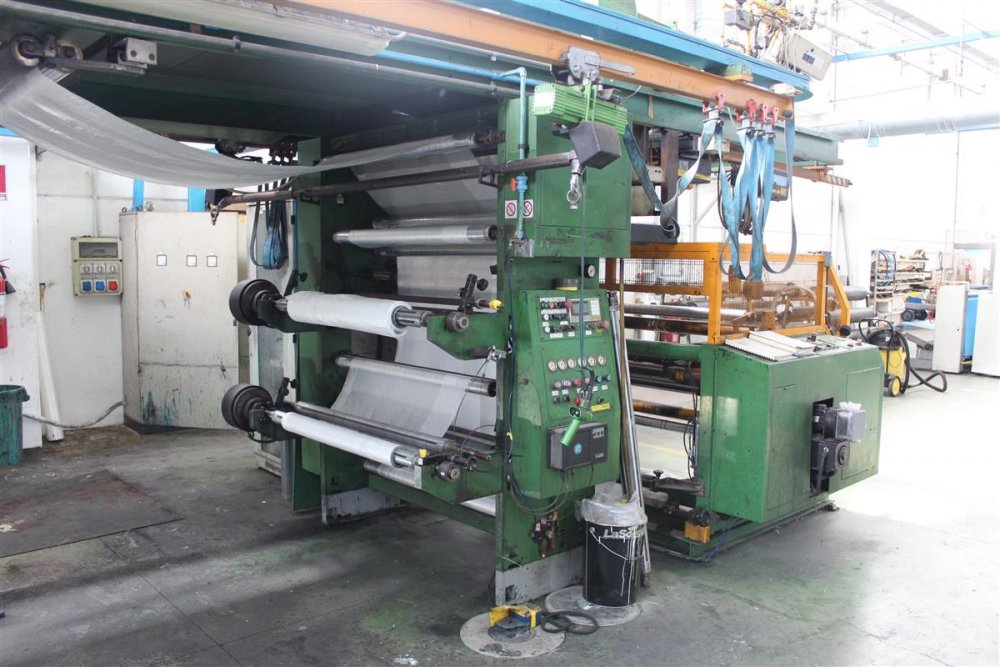

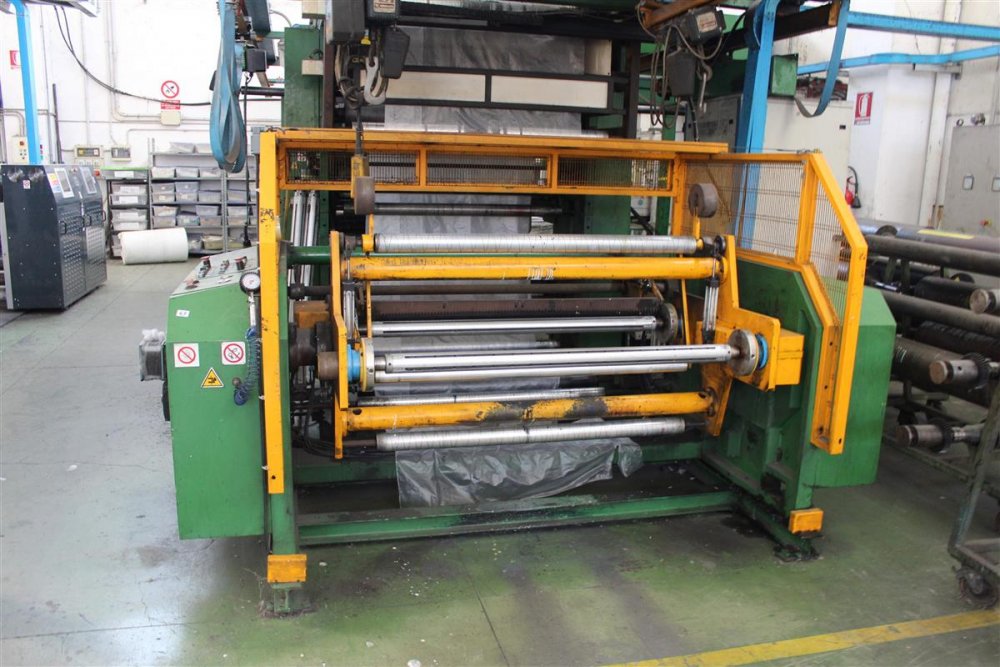

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800

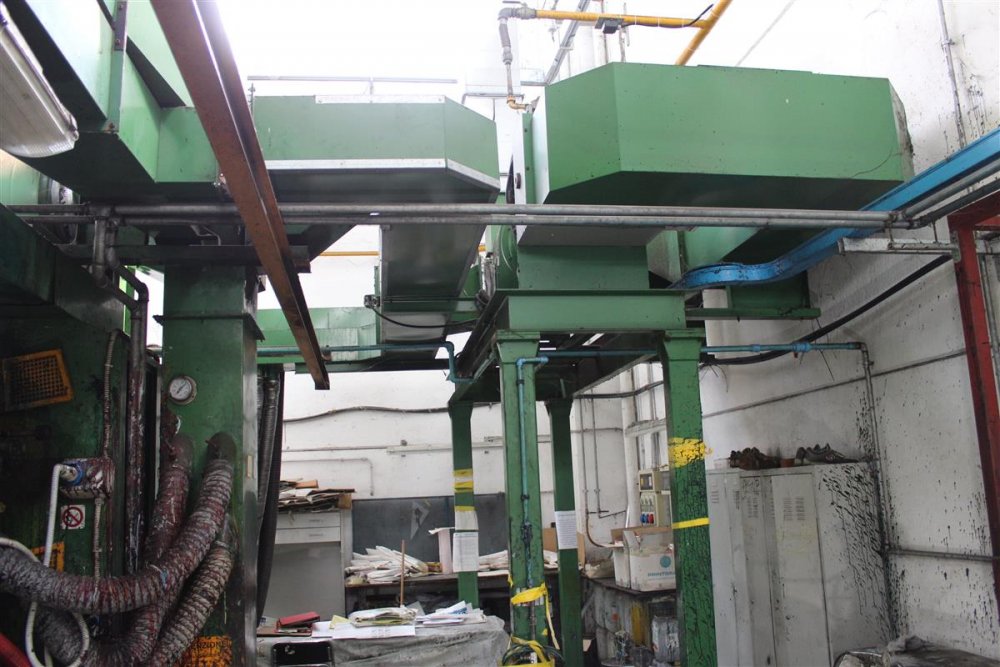

- Drying
- 2 zones , 1 Gas burners
- Videocamera
- yes Fife
- Web guides
- In and out
- Inking system
- ceramic anilox + doctor blade chamber
- Anilox
- yes 6
- Print cylinders
- 30
- Note
- Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Height 3540 mm
| Machine Code | FL0965 |
| Manufacturer | TCM |
| Modello | Midi 50 - 114 |
| Year | 1998 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Doiuble Bracket |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 1 Gas burners |
| Videocamera | yes Fife |
| Web guides | In and out |
| Inking system | ceramic anilox + doctor blade chamber |
| Anilox | yes 6 |
| Print cylinders | 30 |
| Note | Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Height 3540 mm |
