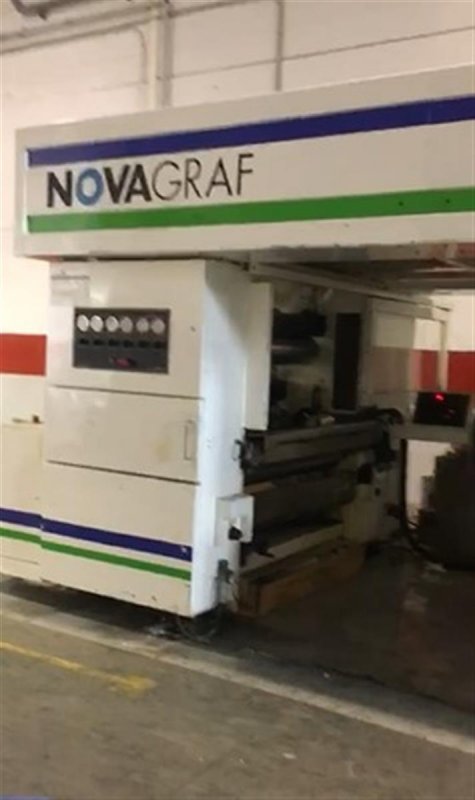

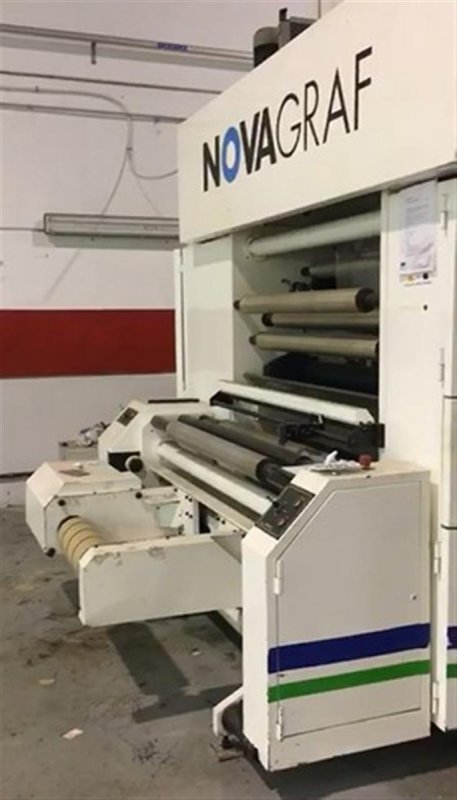

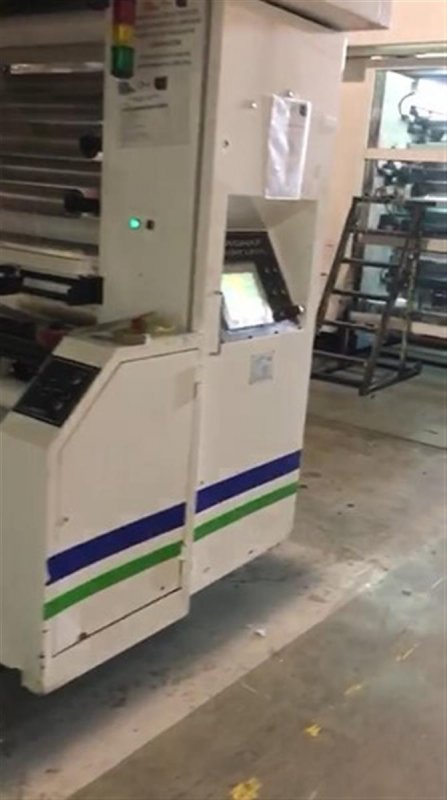

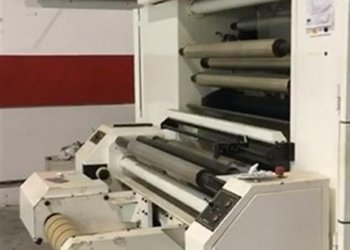

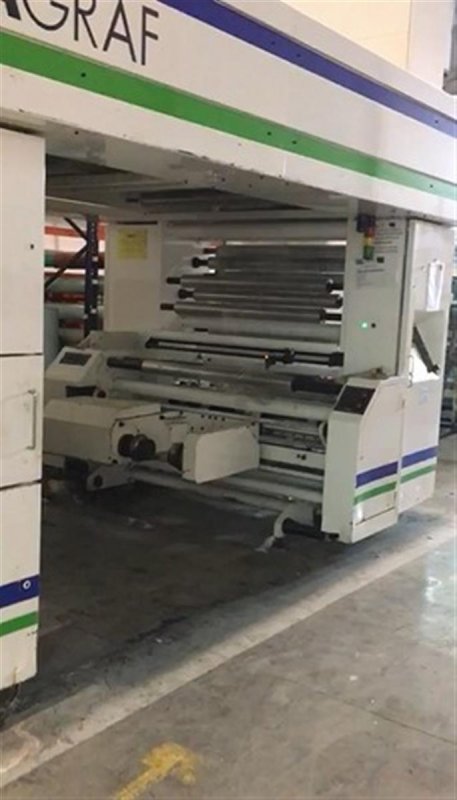

NOVAGRAF SLS 50 Laminator / coating machine SOLVENTLESS
Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
| Machine Code | LA317 |
| Manufacturer | NOVAGRAF |
| Model | SLS 50 |
| Year | 2008 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1200 |
| Materials | All type of flexible materials |
| Speed | 350 m/min |
| First unwinder type | Shaftless |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Shaftless |
| Max diameter reel rewinder | 1000 |
| Coating unit | SOLVENTLESS |

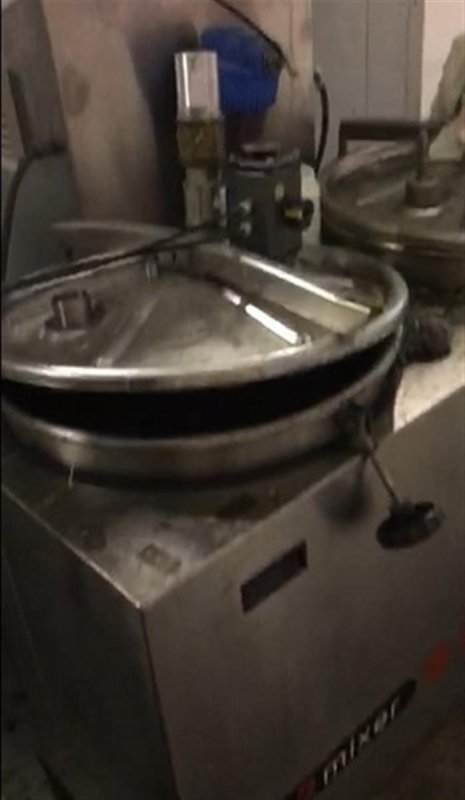

| Pumping mixing unit | yes |
| Coating rollers | 14 SLEEVES |
| Additional information | Adhesive Mixer and pumping for two components Core diam. 3" and 6 " AC drive Automatic control tension 14 Sleeves |
