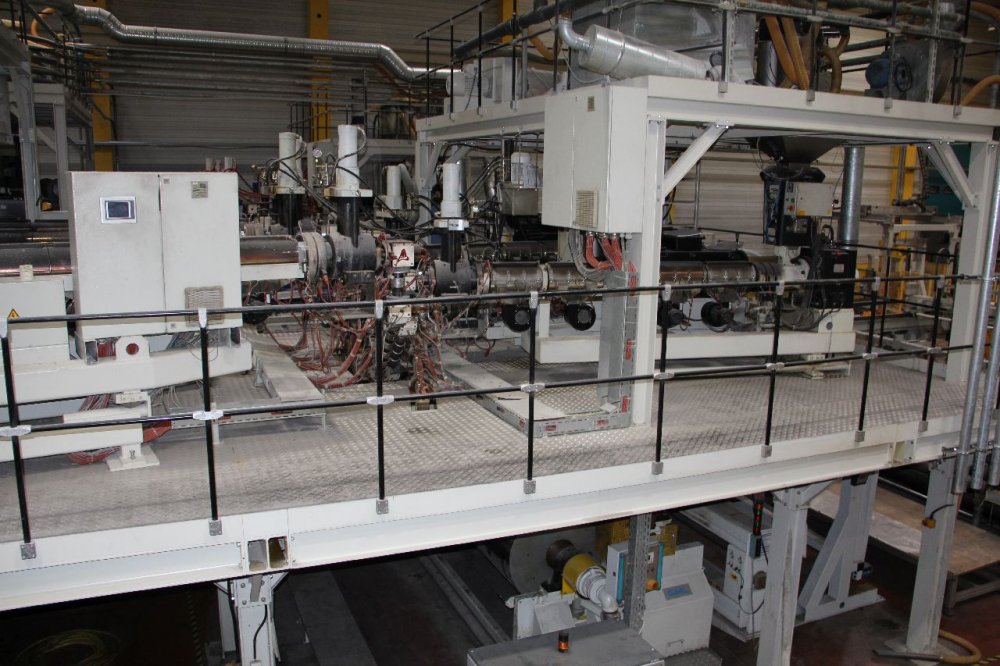

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA260
- Manufacturer
- SML
- Modello
- CAST COEX 5
- Year
- 2006
- Number of layers
- 5
- Overhaul/renovation
- yes, recent revamp to part of controls
- Film structure
- ABCDE
- Material
- Stretch film LLDPE
- Film width (mm)
- 2500
- Speed (m/min)
- Mech speed 600 mpm- net speed at rewinder 550 mpm
- Output (Kg/h)
- Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h .

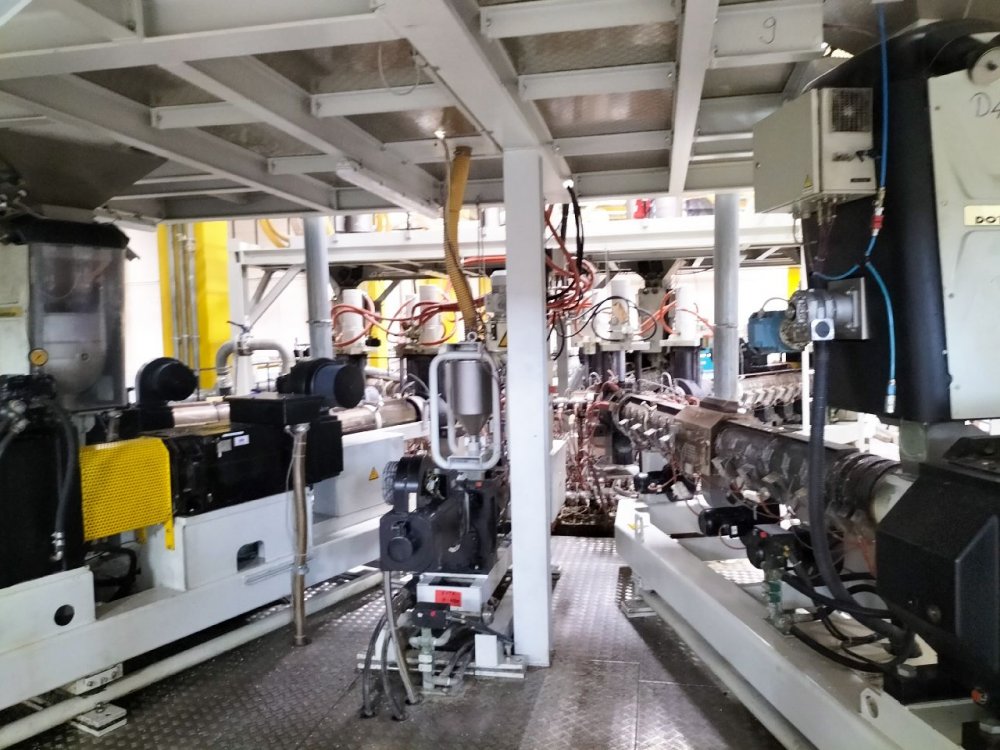

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90mm
- Description 1
- Gravimetric dosing units Doteco 2Comp.
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120mm
- Description 2
- Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen changer
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 120mm
- Description 3
- Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen changer
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 120mm
- Description 4
- Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen changer
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 90mm
- Description 5
- Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen changer
- Head description
- Automatic Die head with Internal deckling, Eltex edge pinning,
- Die width (mm)
- Gross width 3100 - 2100 mm
- Chill roll unit
- Double chill roller
- Thickness controll system
- Yes
- Web guide
- Oscillating frame
- Rewinder max reel diameter (mm)
- Jumbo rolls and Machine rolls - Spindle 3" and 6"
- Rewinder description

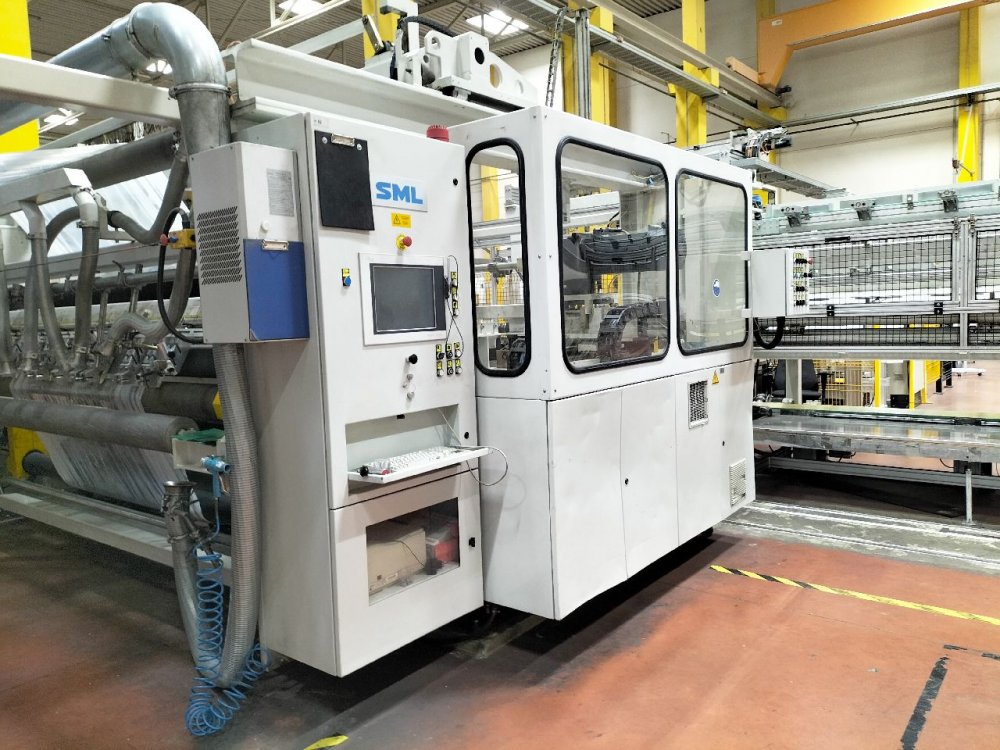

- Turret rewinder for machine reels and jumbo
- Note

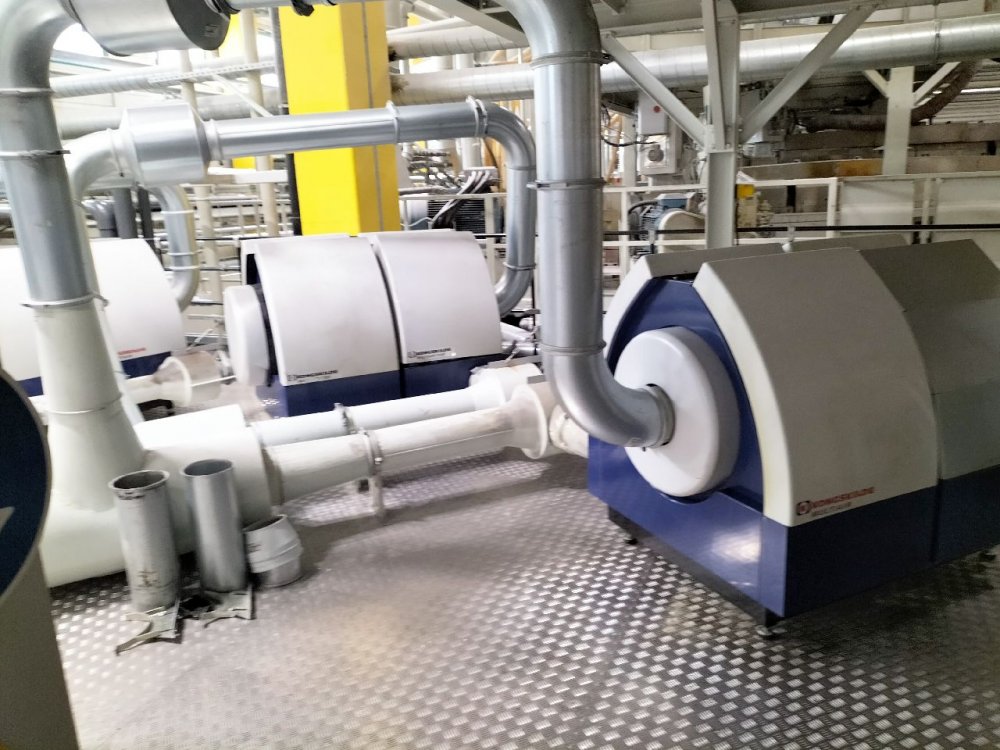

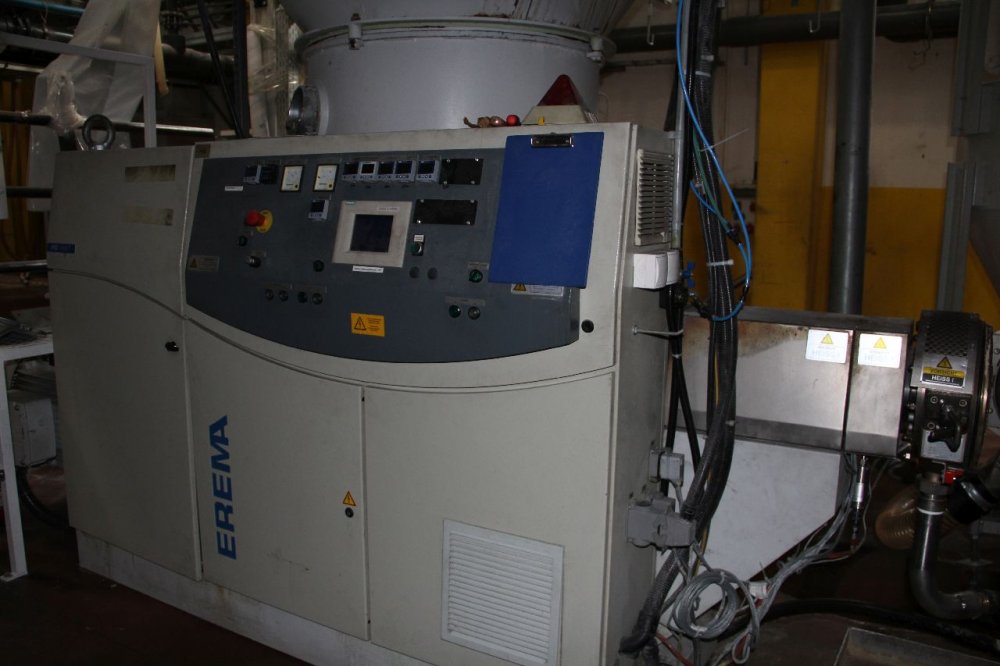

- Regrinder for edges and Erema Regranulator 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing
| Machine Code | CA260 |
| Manufacturer | SML |
| Modello | CAST COEX 5 |
| Year | 2006 |
| Number of layers | 5 |
| Overhaul/renovation | yes, recent revamp to part of controls |
| Film structure | ABCDE |
| Material | Stretch film LLDPE |
| Film width (mm) | 2500 |
| Speed (m/min) | Mech speed 600 mpm- net speed at rewinder 550 mpm |
| Output (Kg/h) | Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h . |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 90mm |
| Description 1 | Gravimetric dosing units Doteco 2Comp. |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120mm |
| Description 2 | Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen changer |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 120mm |
| Description 3 | Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen changer |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 120mm |
| Description 4 | Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen changer |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 90mm |
| Description 5 | Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen changer |
| Head description | Automatic Die head with Internal deckling, Eltex edge pinning, |
| Die width (mm) | Gross width 3100 - 2100 mm |
| Chill roll unit | Double chill roller |
| Thickness controll system | Yes |
| Web guide | Oscillating frame |
| Rewinder max reel diameter (mm) | Jumbo rolls and Machine rolls - Spindle 3" and 6" |
| Rewinder description | Turret rewinder for machine reels and jumbo |
| Note | Regrinder for edges and Erema Regranulator 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing |
SUMITOMO
-
Machine Code: CA255
-
Year: 2010
-
Film width (mm): 2300

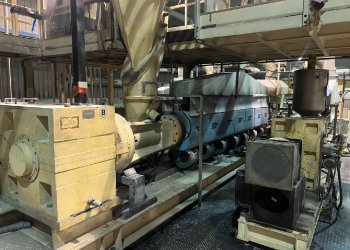

TECHNO COATING ENGINEERING 2000/5 PLUS 4E
-
