** SOLD **
Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
Ask more informations
about a similar one
- Machine Code
- LA323
- Manufacturer
- ROTOMEC/VITS
- Modello
- 1803 Strip lacquering line
- Year
- 1985
- Application
- Coating
- Working width (mm)
- 1450
- Materials
- Alufoil 20-120my
- Speed
- 200 m/min
- Drying
- Thermal oil with gas burner
- Note
- Construction years are 1985 and 2004 strip width 700 - 1.450 mm strip thickness 0,02 - 0,12 mm coil Æ external max. 1.150 mm coil Æ internal (spool) 150/250 mm coil weight max. 3,3 t lacquer apply top/bottom max. 20 g/qm speed 200 m/min working direction left to right · coil car floor type · decoiler design double decoiler (carrousel) strip tension max. 2.000 N · dancer control · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering I (top) pan roller dosing roller application roller Æ 220 mm · drying furnace I/cooling zone I not available (floating furnace) (heating thermal oil/gas burner) (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering II (bottom) pan roller dosing roller application roller Æ 220mm · strip edge control · drying furnace II/cooling zone II not available (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · waxing · recoiler design double decoiler (carrousel) strip tension max. 2.000 N · electrics Siemens PLC S7 · exhaust air system not available · lacquer preparation not available An RTO line for exhaust air purification and components for lacquer preparation can be offered separately.
| Machine Code | LA323 |
| Manufacturer | ROTOMEC/VITS |
| Modello | 1803 Strip lacquering line |
| Year | 1985 |
| Application | Coating |
| Working width (mm) | 1450 |
| Materials | Alufoil 20-120my |
| Speed | 200 m/min |
| Drying | Thermal oil with gas burner |
| Note | Construction years are 1985 and 2004 strip width 700 - 1.450 mm strip thickness 0,02 - 0,12 mm coil Æ external max. 1.150 mm coil Æ internal (spool) 150/250 mm coil weight max. 3,3 t lacquer apply top/bottom max. 20 g/qm speed 200 m/min working direction left to right · coil car floor type · decoiler design double decoiler (carrousel) strip tension max. 2.000 N · dancer control · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering I (top) pan roller dosing roller application roller Æ 220 mm · drying furnace I/cooling zone I not available (floating furnace) (heating thermal oil/gas burner) (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering II (bottom) pan roller dosing roller application roller Æ 220mm · strip edge control · drying furnace II/cooling zone II not available (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · waxing · recoiler design double decoiler (carrousel) strip tension max. 2.000 N · electrics Siemens PLC S7 · exhaust air system not available · lacquer preparation not available An RTO line for exhaust air purification and components for lacquer preparation can be offered separately. |
CML MIRACH
-
Machine Code: LA361
-
Year: 2001
-
Working width (mm): 1250
SCHIAVI CONCORDE
-
Machine Code: LA354
-
Year: 1994
-
Working width (mm): 1220
NORDMECCANICA SIMPLEX COMBI
-
Machine Code: LA336
-
Year: 1996
-
Working width (mm): 1300
UTECO CORAL
-
Machine Code: LA132
-
Year: 2006
-
Working width (mm): 800
NORDMECCANICA
-
Machine Code: LA527
-
Year: 2013
-
Working width (mm): 1300

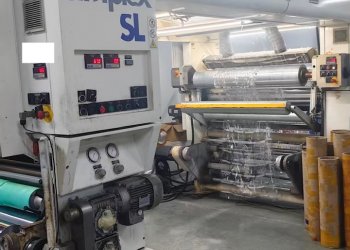

NORDMECCANICA Simplex SL
-
