- Code Machine
- LA323
- Fabricant
- ROTOMEC/VITS
- Modello

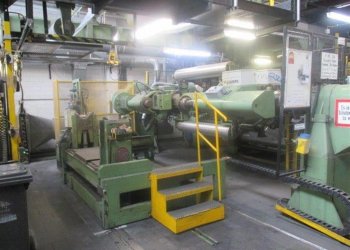

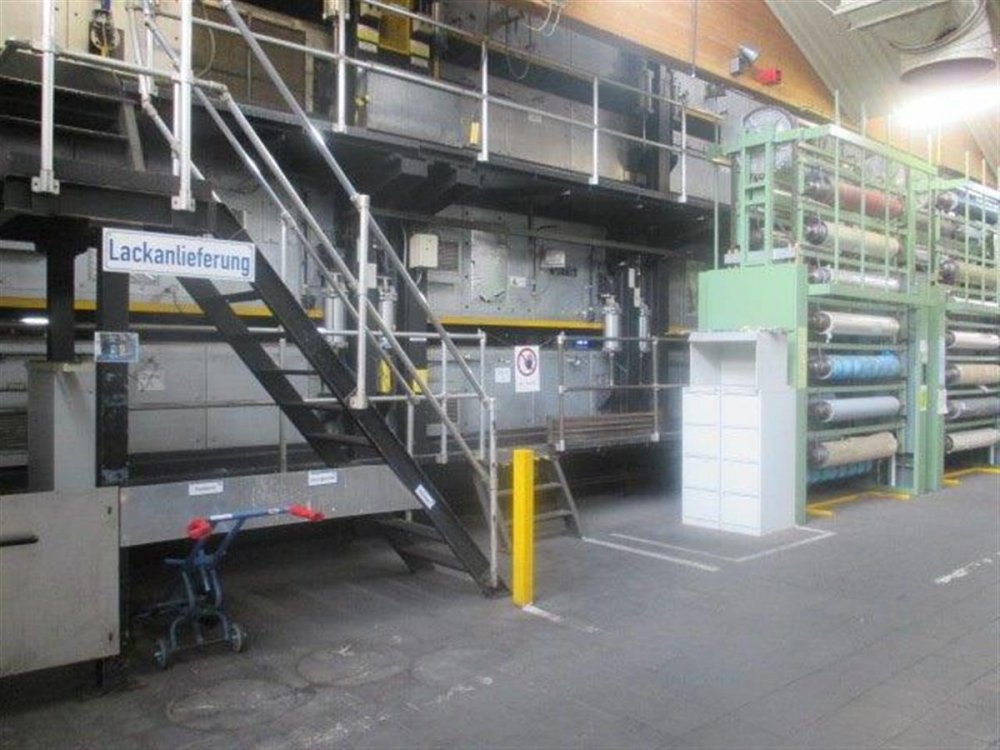

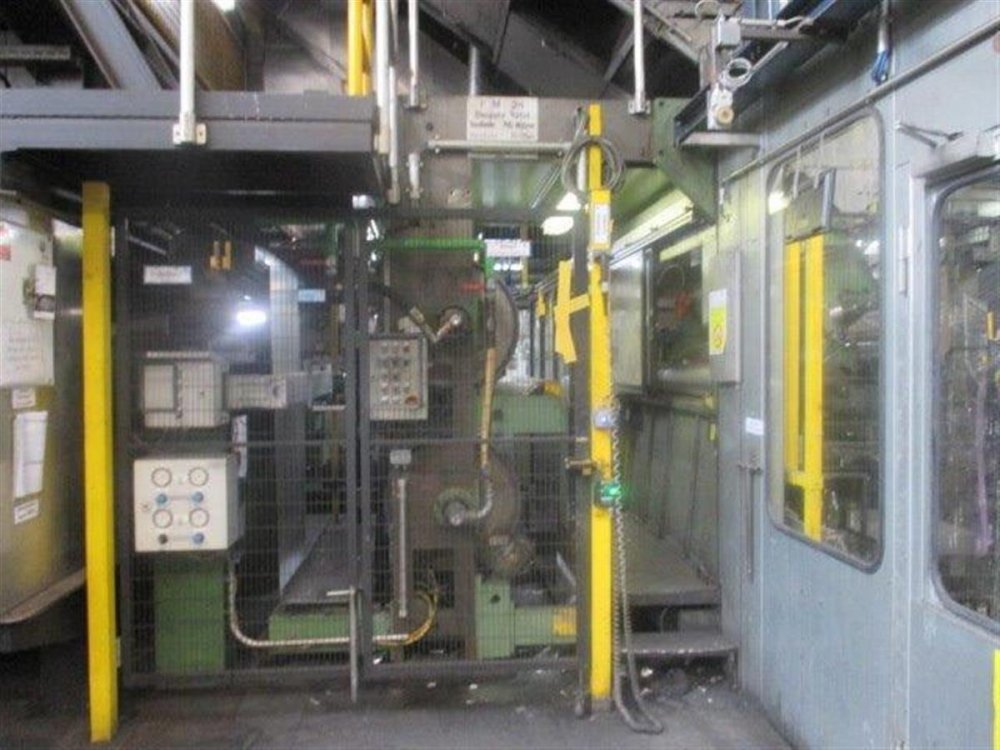

- 1803 Strip lacquering line
- Année
- 1985
- Application
- Coating
- Working width (mm)
- 1450
- Materials
- Alufoil 20-120my
- Speed
- 200 m/min
- Drying
- Thermal oil with gas burner
- Note
- Construction years are 1985 and 2004 strip width 700 - 1.450 mm strip thickness 0,02 - 0,12 mm coil Æ external max. 1.150 mm coil Æ internal (spool) 150/250 mm coil weight max. 3,3 t lacquer apply top/bottom max. 20 g/qm speed 200 m/min working direction left to right · coil car floor type · decoiler design double decoiler (carrousel) strip tension max. 2.000 N · dancer control · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering I (top) pan roller dosing roller application roller Æ 220 mm · drying furnace I/cooling zone I not available (floating furnace) (heating thermal oil/gas burner) (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering II (bottom) pan roller dosing roller application roller Æ 220mm · strip edge control · drying furnace II/cooling zone II not available (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · waxing · recoiler design double decoiler (carrousel) strip tension max. 2.000 N · electrics Siemens PLC S7 · exhaust air system not available · lacquer preparation not available An RTO line for exhaust air purification and components for lacquer preparation can be offered separately.
| Code Machine | LA323 |
| Fabricant | ROTOMEC/VITS |
| Modello | 1803 Strip lacquering line |
| Année | 1985 |
| Application | Coating |
| Working width (mm) | 1450 |
| Materials | Alufoil 20-120my |
| Speed | 200 m/min |
| Drying | Thermal oil with gas burner |
| Note | Construction years are 1985 and 2004 strip width 700 - 1.450 mm strip thickness 0,02 - 0,12 mm coil Æ external max. 1.150 mm coil Æ internal (spool) 150/250 mm coil weight max. 3,3 t lacquer apply top/bottom max. 20 g/qm speed 200 m/min working direction left to right · coil car floor type · decoiler design double decoiler (carrousel) strip tension max. 2.000 N · dancer control · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering I (top) pan roller dosing roller application roller Æ 220 mm · drying furnace I/cooling zone I not available (floating furnace) (heating thermal oil/gas burner) (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering II (bottom) pan roller dosing roller application roller Æ 220mm · strip edge control · drying furnace II/cooling zone II not available (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · waxing · recoiler design double decoiler (carrousel) strip tension max. 2.000 N · electrics Siemens PLC S7 · exhaust air system not available · lacquer preparation not available An RTO line for exhaust air purification and components for lacquer preparation can be offered separately. |
