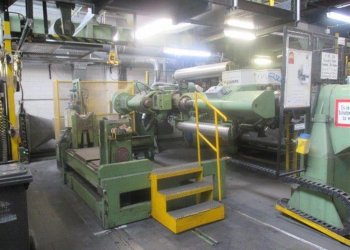

ROTOMEC/VITS 1803 Strip lacquering line Laminator / coating machine ** SOLD ** Ask more informations about a similar one

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).

Machine Code LA323
Manufacturer ROTOMEC/VITS
Model 1803 Strip lacquering line
Year 1985
Application Coating
Working width (mm) 1450
Materials Alufoil 20-120my
Speed 200 m/min
Drying Thermal oil with gas burner

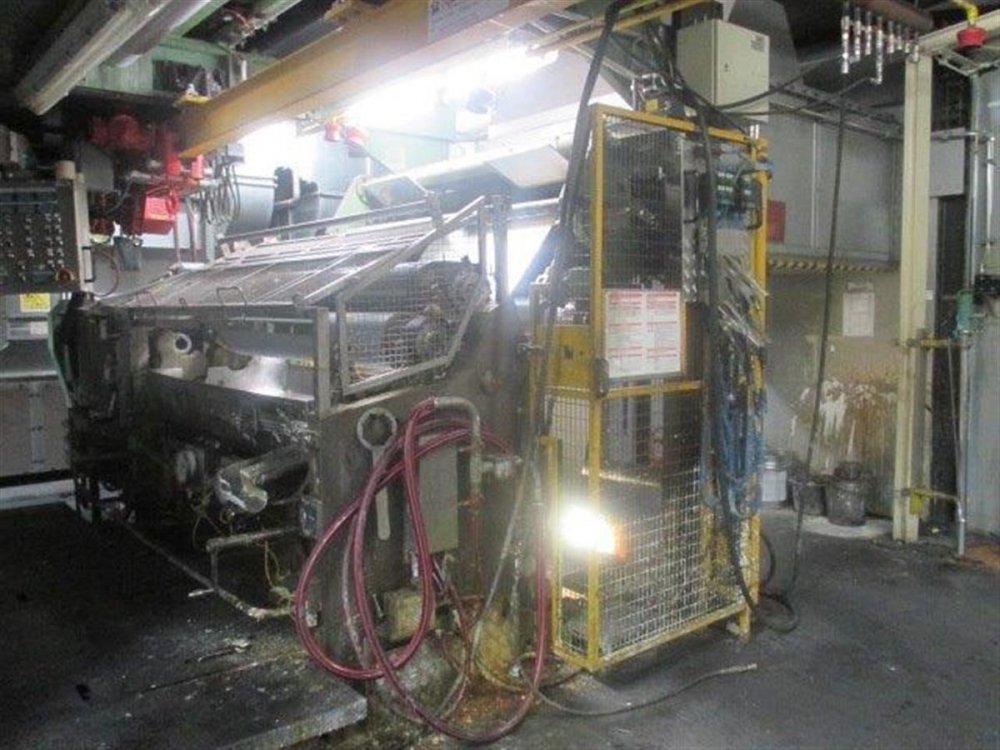

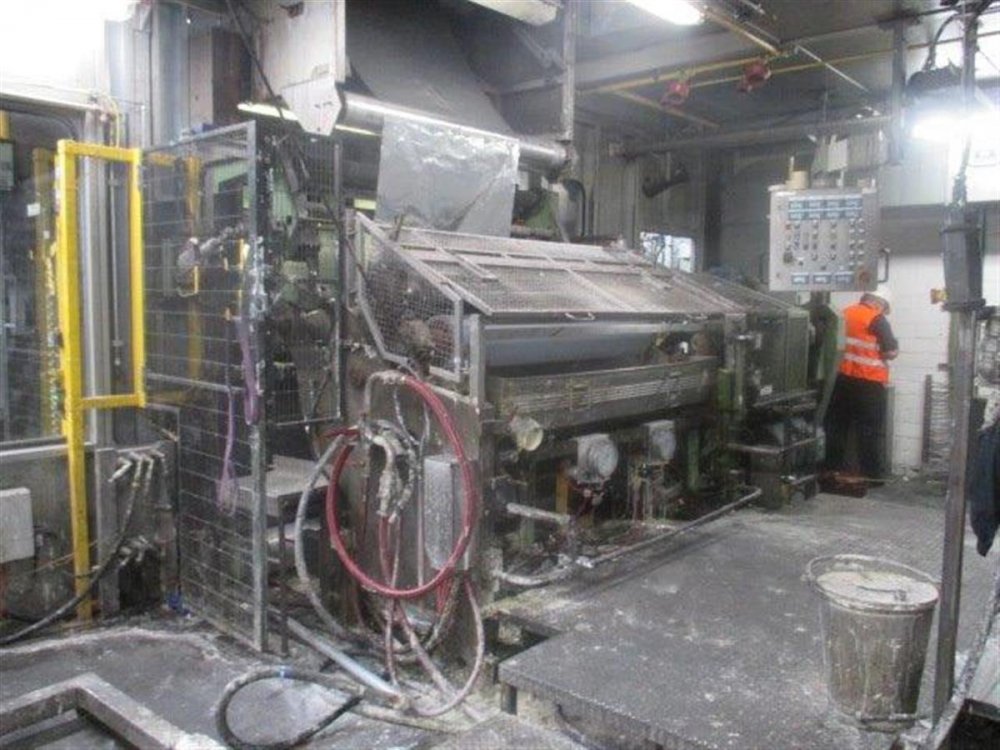

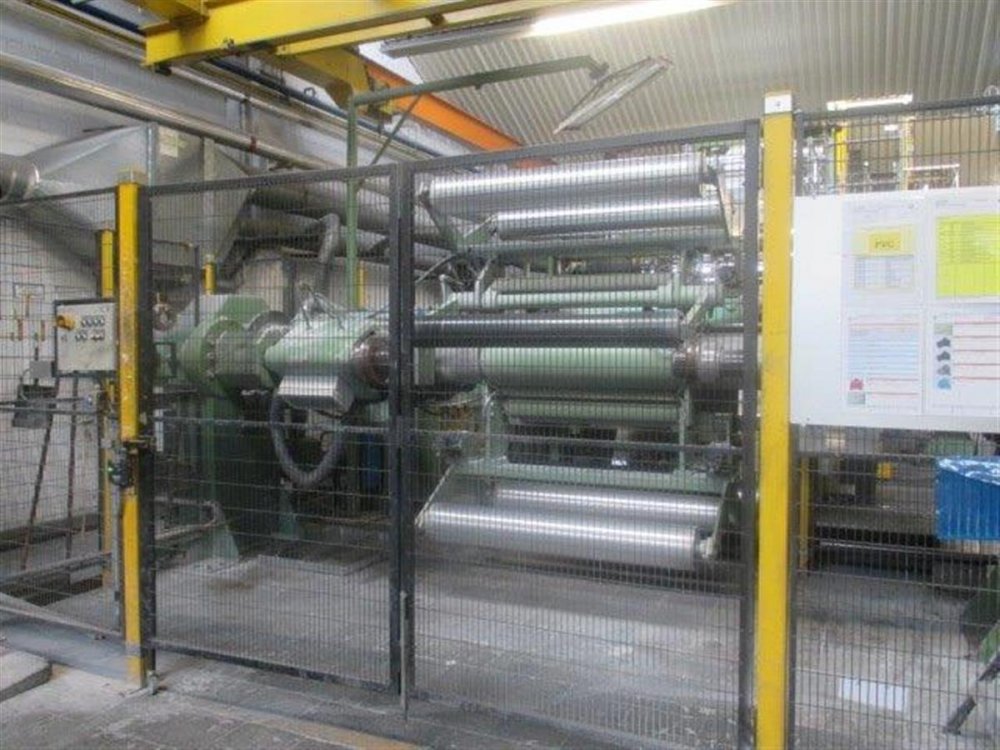

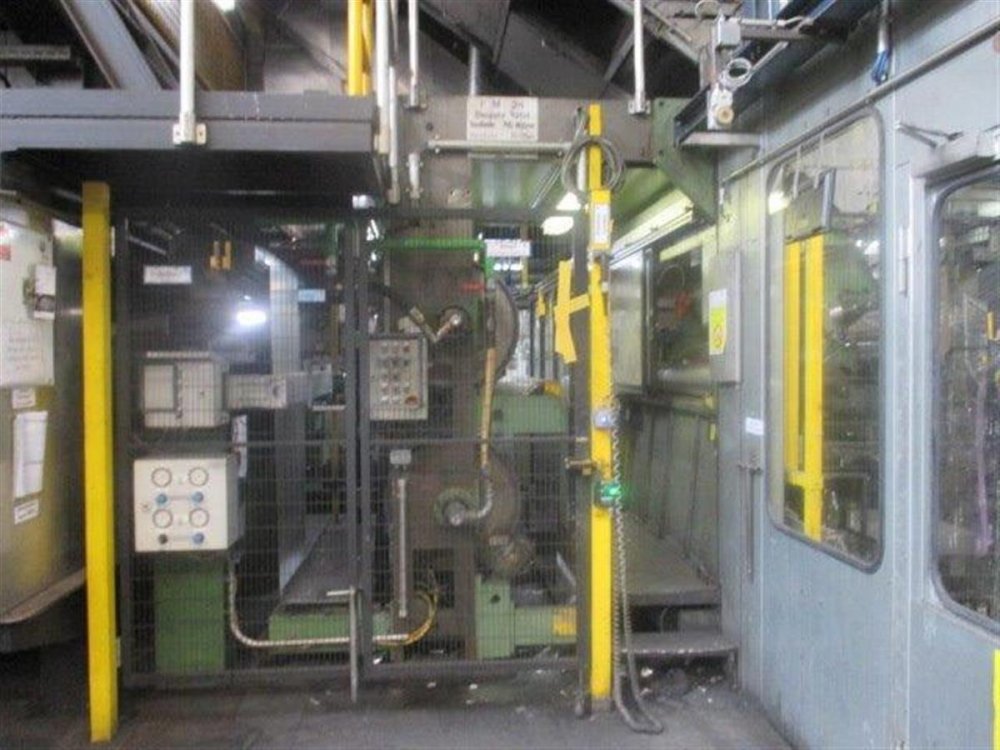

Additional information Construction years are 1985 and 2004 strip width 700 - 1.450 mm strip thickness 0,02 - 0,12 mm coil Æ external max. 1.150 mm coil Æ internal (spool) 150/250 mm coil weight max. 3,3 t lacquer apply top/bottom max. 20 g/qm speed 200 m/min working direction left to right · coil car floor type · decoiler design double decoiler (carrousel) strip tension max. 2.000 N · dancer control · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering I (top) pan roller dosing roller application roller Æ 220 mm · drying furnace I/cooling zone I not available (floating furnace) (heating thermal oil/gas burner) (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · lacquering II (bottom) pan roller dosing roller application roller Æ 220mm · strip edge control · drying furnace II/cooling zone II not available (temperature max. 320 °C) (cooling air) · bridle-roll stand roll Æ 700 mm strip tension 1.860 N · waxing · recoiler design double decoiler (carrousel) strip tension max. 2.000 N · electrics Siemens PLC S7 · exhaust air system not available · lacquer preparation not available An RTO line for exhaust air purification and components for lacquer preparation can be offered separately.

** SOLD **
