** SOLD **

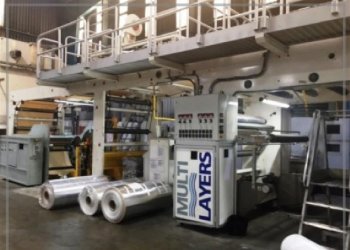

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
about a similar one
- Machine Code
- LA245
- Manufacturer
- NORDMECCANICA
- Modello
- TRIPLEX LAMINATOR
- Year
- 2006
- Application
- Triplex lamination
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1520
- Materials
- Paper/Foil/Film ,Paper gsm - 20gsm to 150gsm , foil 7 to 20 micron all plastic film
- Speed
- 275m/min
- First unwinder type
- Turret automatic
- Max diameter reel unwinder
- 1200
- Secondary unwinder type
- two single position single unwinder roll diam 1000 mm for foil and film on Hot Melt coating unit
- Max diameter reel unwinder
- 1000
- Third unwinder type
- Turret automatic
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret automatic
- Max diameter reel rewinder
- 1270
- Coating unit
- Water based using semi-flexo and rotogravure-solvent based adhesive
- Second Coating unitr
- Hotmelt adhesive die using EVA or PSA hotmelt adhesive
- Third Coating unit
- Solventless adhesive (single or two component)
| Machine Code | LA245 |
| Manufacturer | NORDMECCANICA |
| Modello | TRIPLEX LAMINATOR |
| Year | 2006 |
| Application | Triplex lamination |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Working width (mm) | 1520 |
| Materials | Paper/Foil/Film ,Paper gsm - 20gsm to 150gsm , foil 7 to 20 micron all plastic film |
| Speed | 275m/min |
| First unwinder type | Turret automatic |
| Max diameter reel unwinder | 1200 |
| Secondary unwinder type | two single position single unwinder roll diam 1000 mm for foil and film on Hot Melt coating unit |
| Max diameter reel unwinder | 1000 |
| Third unwinder type | Turret automatic |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder | 1270 |
| Coating unit | Water based using semi-flexo and rotogravure-solvent based adhesive |
| Second Coating unitr | Hotmelt adhesive die using EVA or PSA hotmelt adhesive |
| Third Coating unit | Solventless adhesive (single or two component) |
