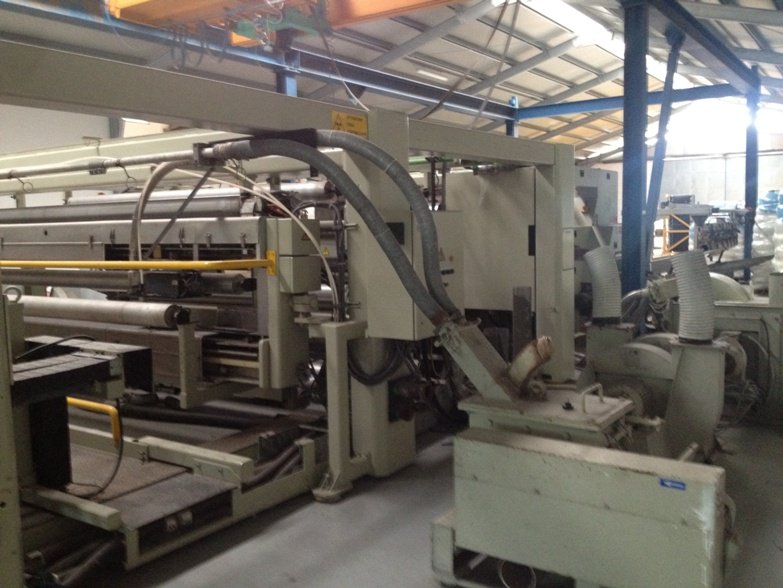

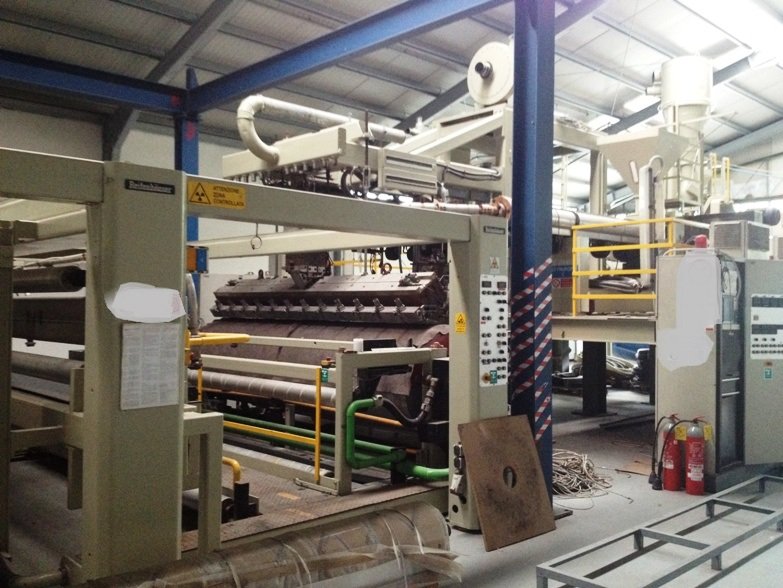

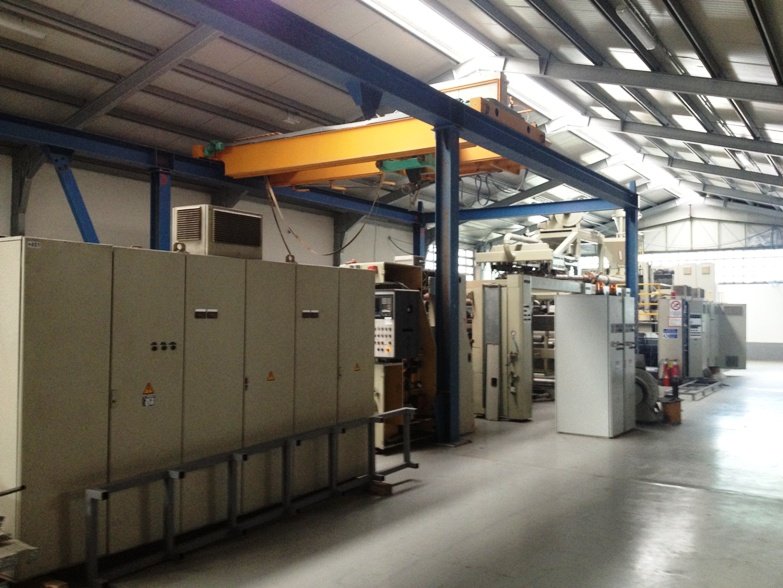

3 layers REIFENHAUSER Cast film extrusion line ** SOLD ** Ask more informations about a similar one

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA101
Manufacturer REIFENHAUSER
Year 1993
Number of layers 3
Film structure ABC
Material CPP
Film width (mm) 3100
Output (Kg/h) 1000
Extruder 1 Layer ref: A
Screw diam 90mm
Description Bimetallic, Gravimetric dosing unit, 2 components;
Extruder 2 Layer ref: B
Screw diam 180mm
Description Gravimetric dosing unit, 3 components; Extruder on side for reefed of edge-trim
Extruder 3 Layer ref: C
Screw diam 90mm
Description L/D30 ; Gravimetric dosing unit, 2 components;
Head description Make Reifenhauser; Feedblock;

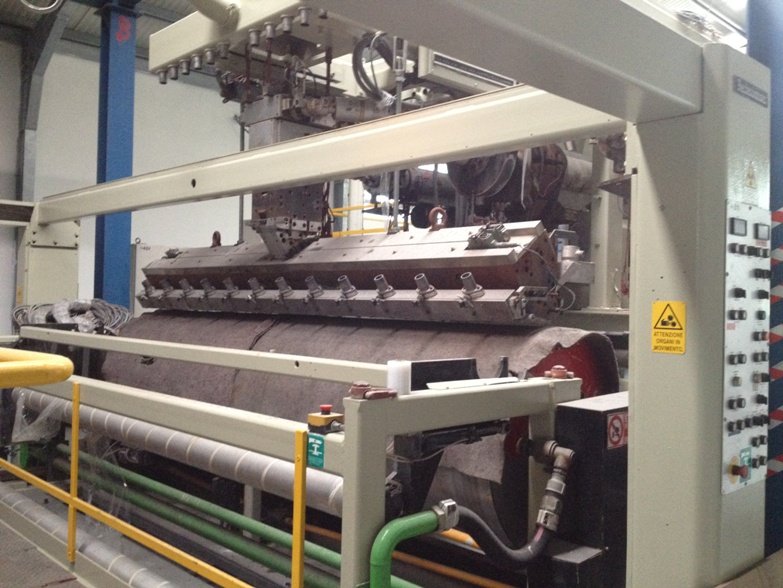

Chill roll unit 2 chill roll,1st 1000mm diam.
Thickness controll system Automatic thickness control Eberline Kripton 85 - radio active source replaces 2008
Corona treatment 2 AFS (front and back)

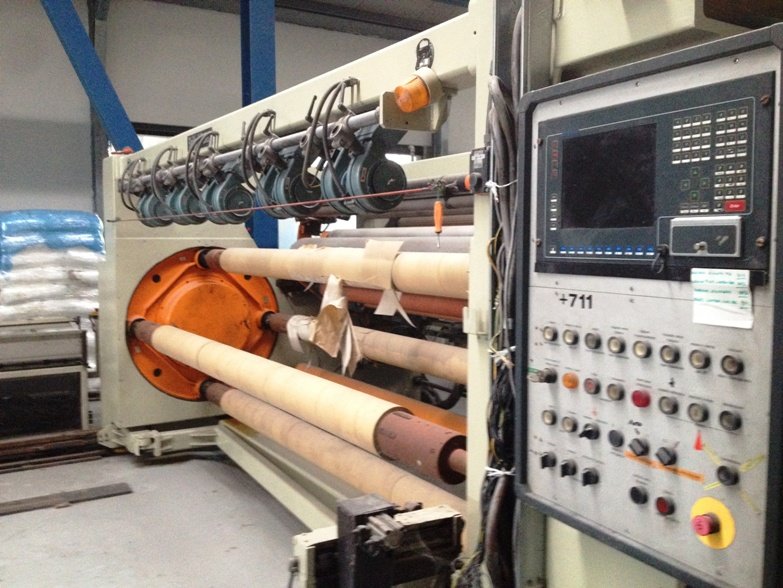

Rewinder max reel diameter (mm) 800mm
Rewinder description Turret , contact and gap type.Automatic, with 4 shafts on rewinder; Automatic brandable arms for completly automatic reels unloading and new cores loading. Automatic system to upload finished reels, packaging and for inserting new cores.
Additional information In Line slitting unit; 2 x In line recovery trims system with exact trimming and supplementary extruder. Additional equipment : Kelvi plast Termo regulation unit. Machine currently dismantled

** SOLD **
