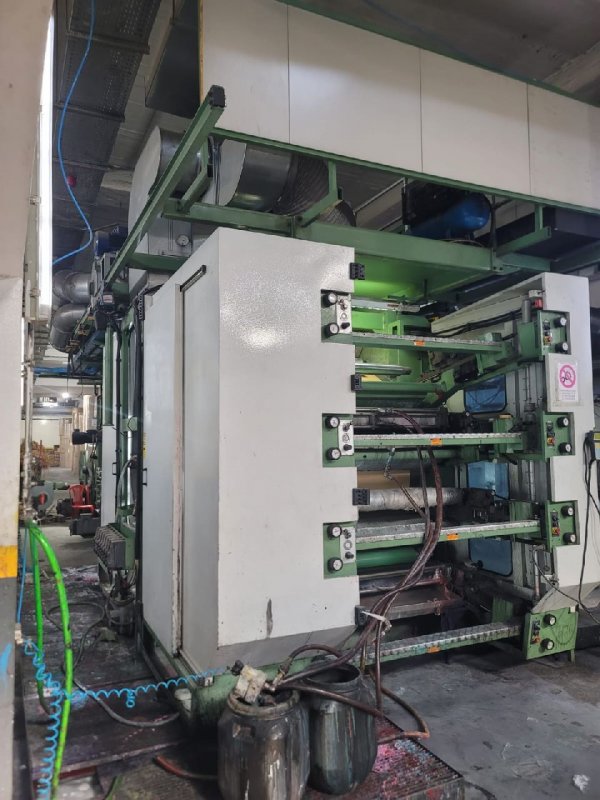

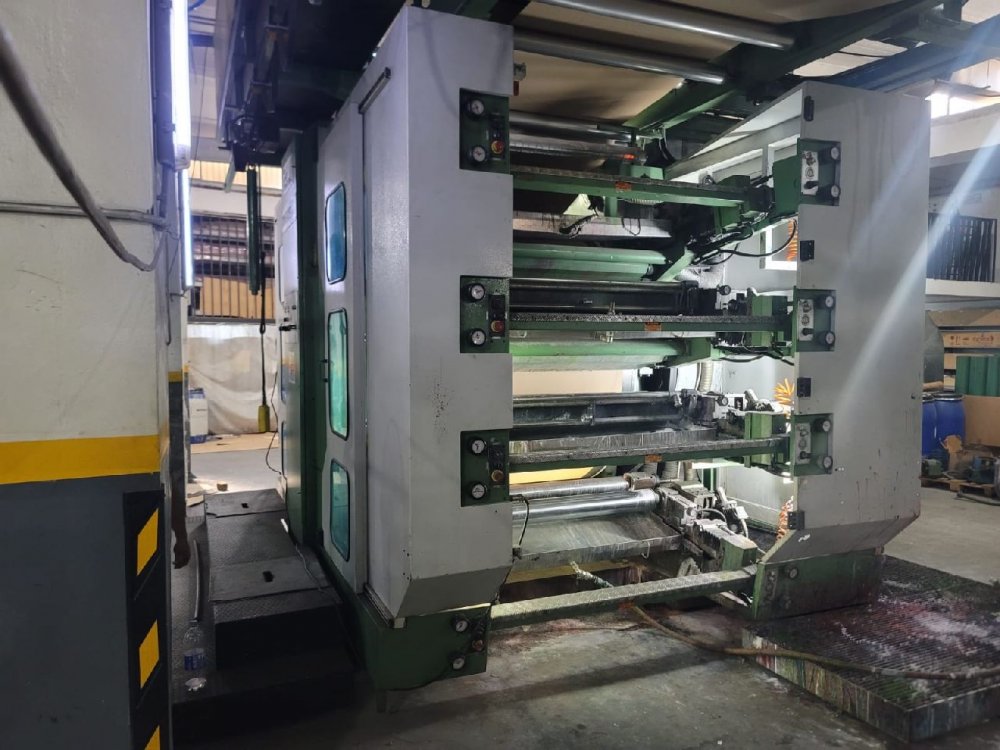

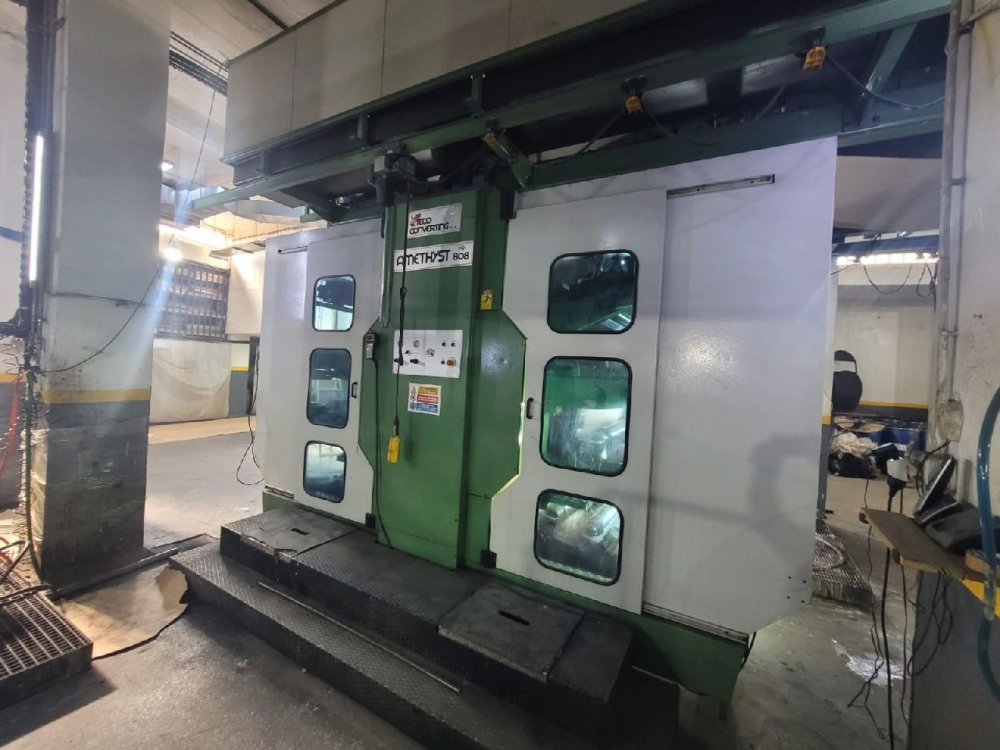

UTECO AMETHYST flexo printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL940
Manufacturer
UTECO
Model
AMETHYST
Year
2002
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
400
Max print repeat (mm)
800

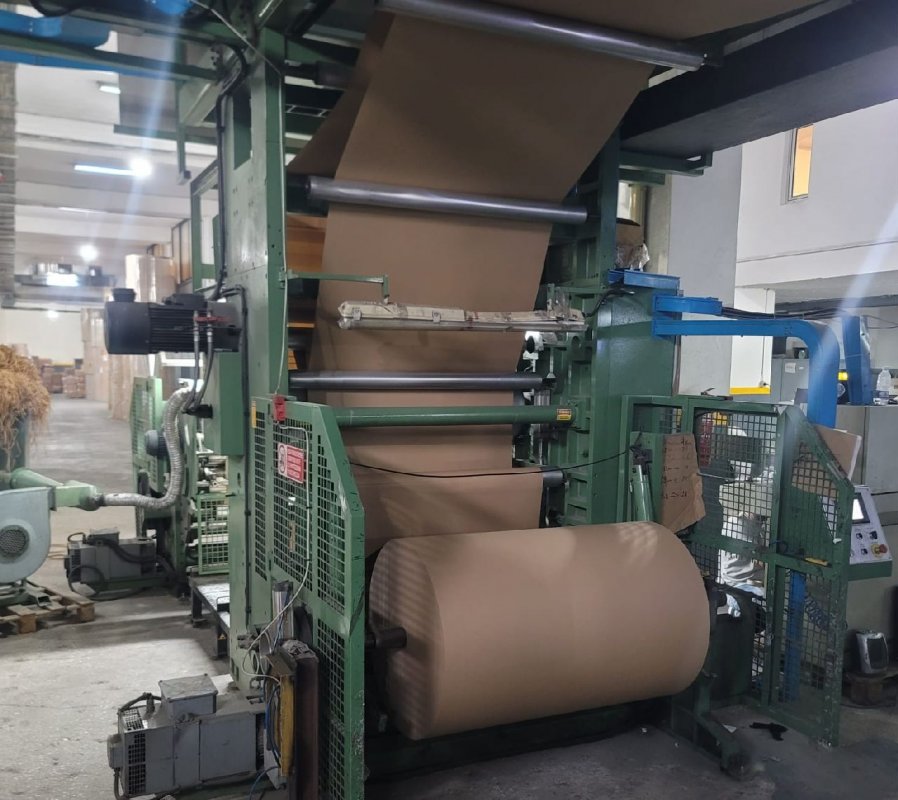

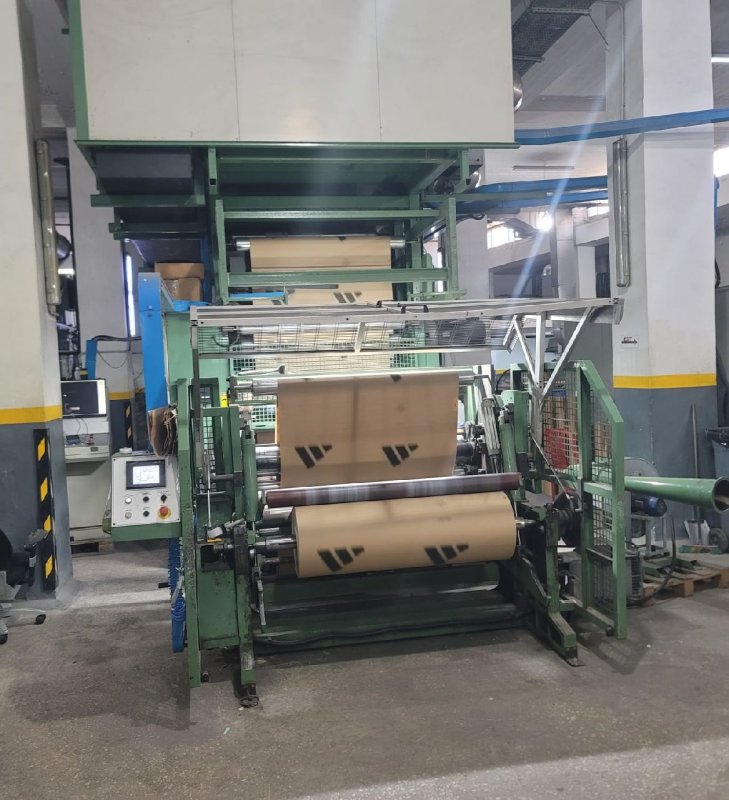

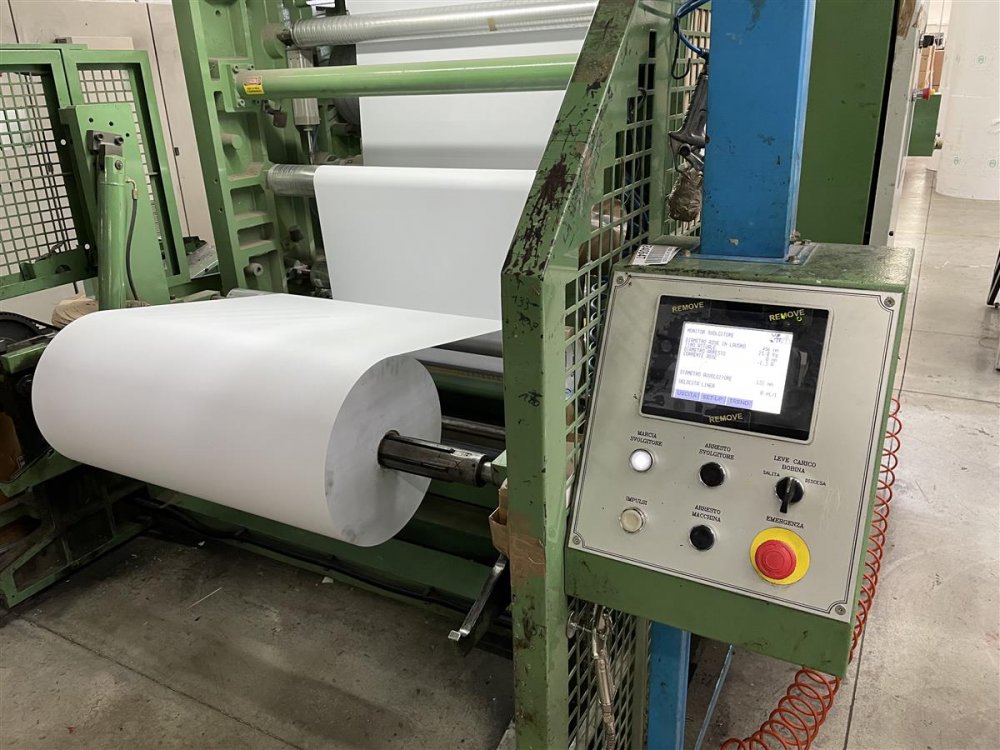

Unwinder type
SINGLE
Max reel diameter unwinder (mm)
1250

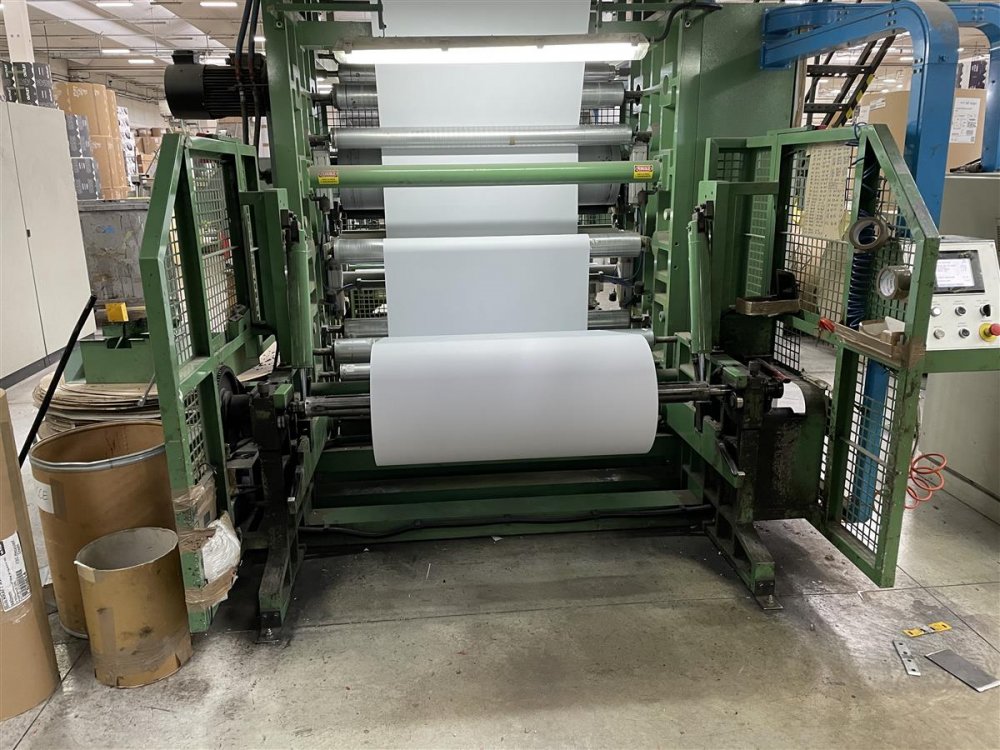

Rewinder type
SINGLE
Max reel diameter rewinder (mm)
1250

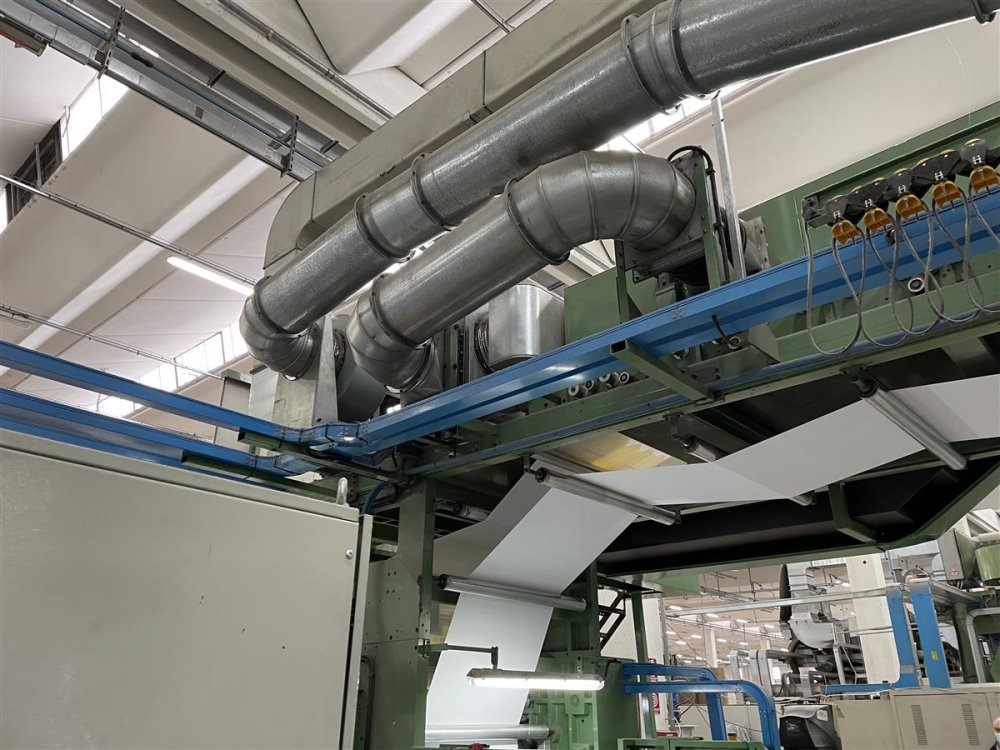

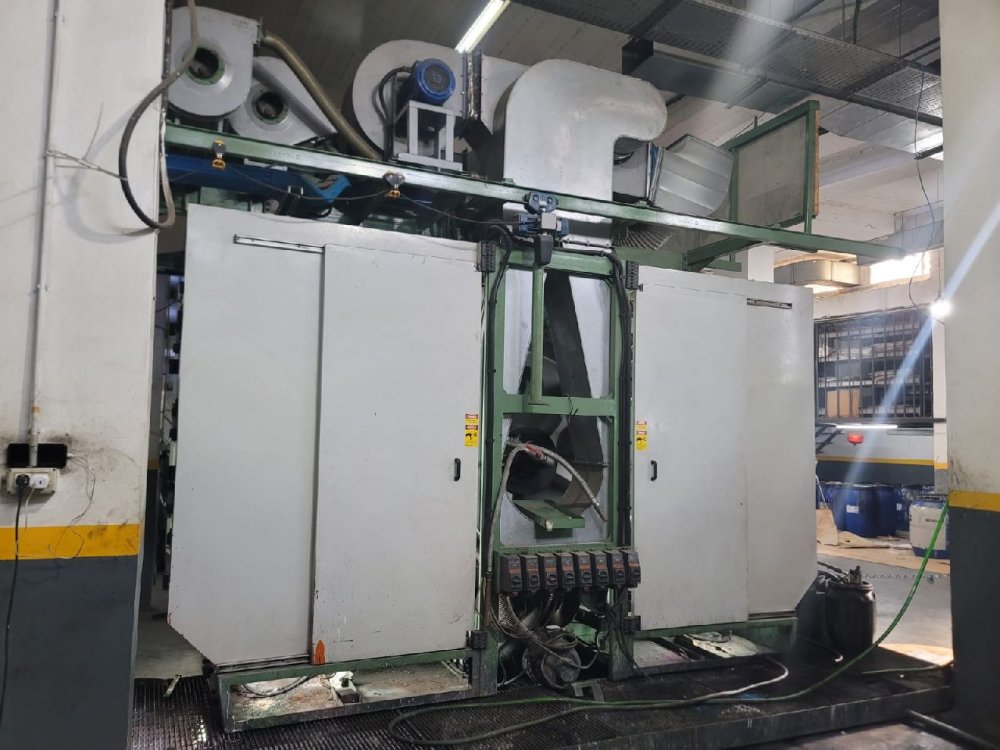

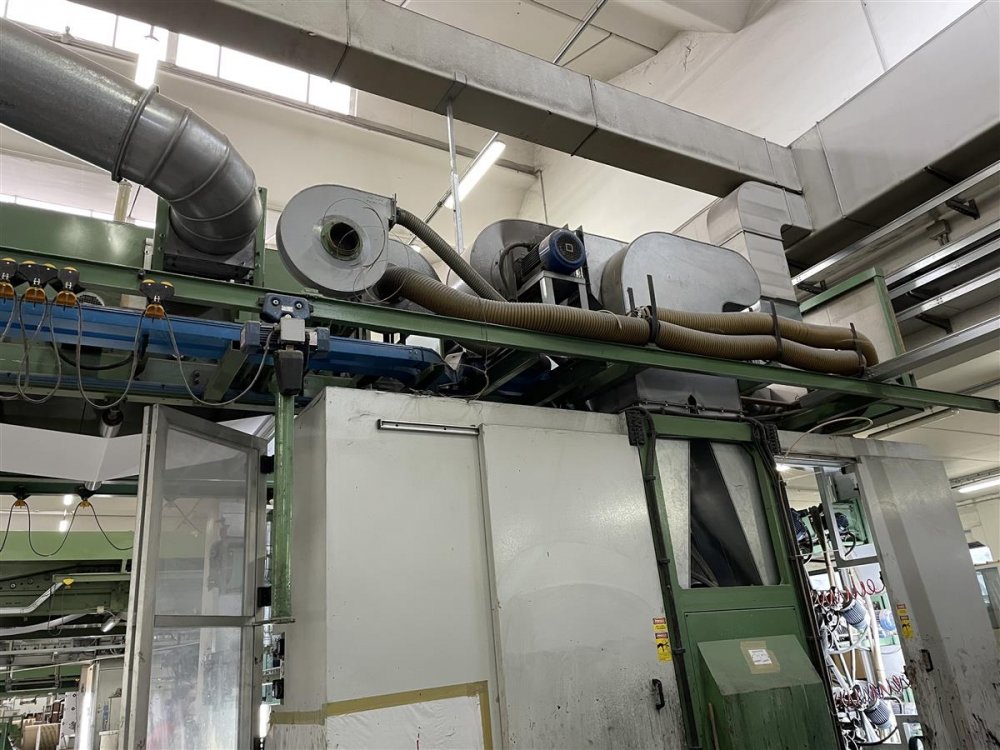

Drying
2 zones (CI unit and tunnel) with independent control, 4 motors per deck positioning
Videocamera
Selectra
Web guides
Yes, before winding
Anilox
2x 60 linee cm/ 20 cm³/m²; 3x 80 linee cm/ 18 cm³/m²; 2x 100 linee cm/ 18 cm³/m²; 4x 100 lines/ cm -15 cm³/m² ; 2x 120 lines/ cm -12.5 cm³/m² ; 4x 220 lines/ cm -8 cm³/m² ; 4x 320 lines/ cm 5.2 cm³/m²
Print Sleeves
Sleeves: 11x40cm; 7x45cm; 12x50cm; 4x52cm; 12x55cm; 7x60cm; 7x65cm; 8x70cm; Gears: 8x 40 – 45 – 50 –55 – 60 – 65 – 70 cm + 4x 52cm
Additional information
- In line slitting system 2 knives with suction - Thermoregulation for CI drum
Machine Code FL940
Manufacturer UTECO
Model AMETHYST
Year 2002
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type SINGLE
Max reel diameter unwinder (mm) 1250
Rewinder type SINGLE
Max reel diameter rewinder (mm) 1250
Drying 2 zones (CI unit and tunnel) with independent control, 4 motors per deck positioning
Videocamera Selectra
Web guides Yes, before winding
Anilox 2x 60 linee cm/ 20 cm³/m²; 3x 80 linee cm/ 18 cm³/m²; 2x 100 linee cm/ 18 cm³/m²; 4x 100 lines/ cm -15 cm³/m² ; 2x 120 lines/ cm -12.5 cm³/m² ; 4x 220 lines/ cm -8 cm³/m² ; 4x 320 lines/ cm 5.2 cm³/m²
Print Sleeves Sleeves: 11x40cm; 7x45cm; 12x50cm; 4x52cm; 12x55cm; 7x60cm; 7x65cm; 8x70cm; Gears: 8x 40 – 45 – 50 –55 – 60 – 65 – 70 cm + 4x 52cm
Additional information - In line slitting system 2 knives with suction - Thermoregulation for CI drum
