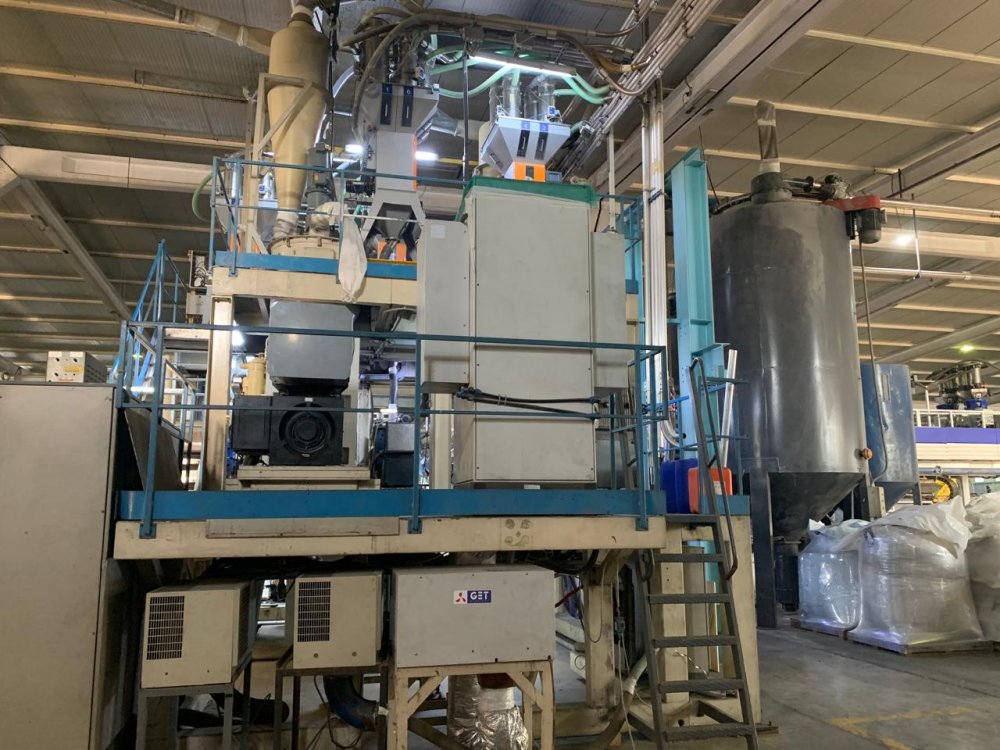

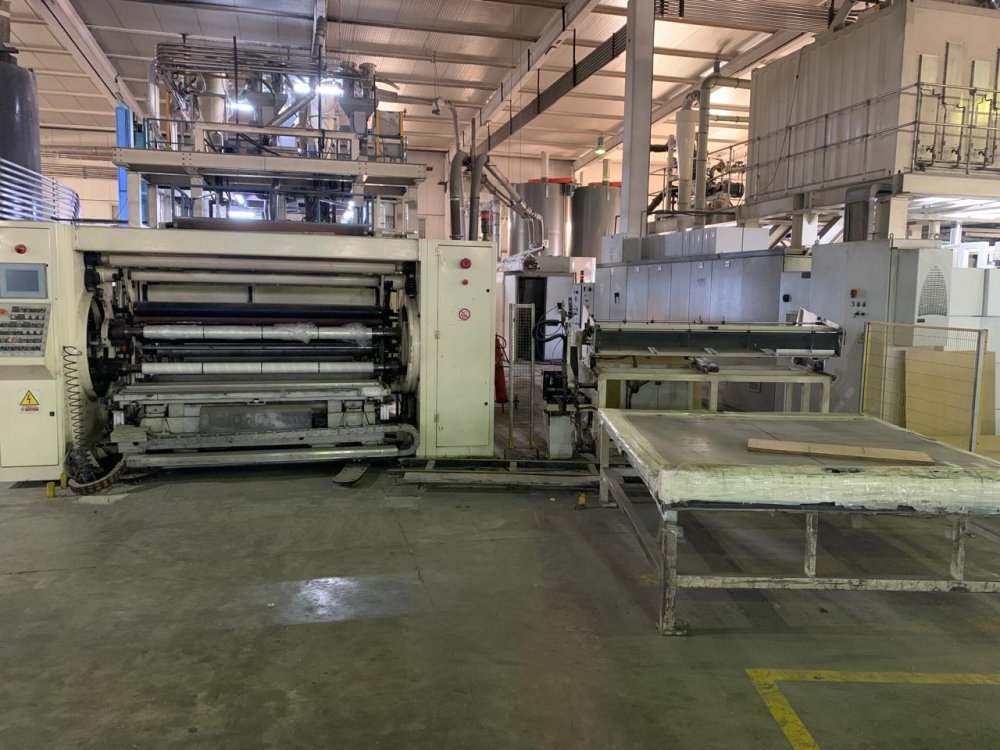

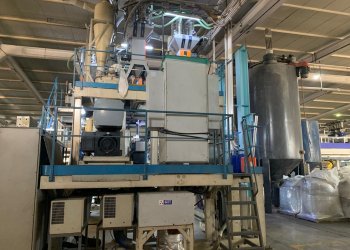

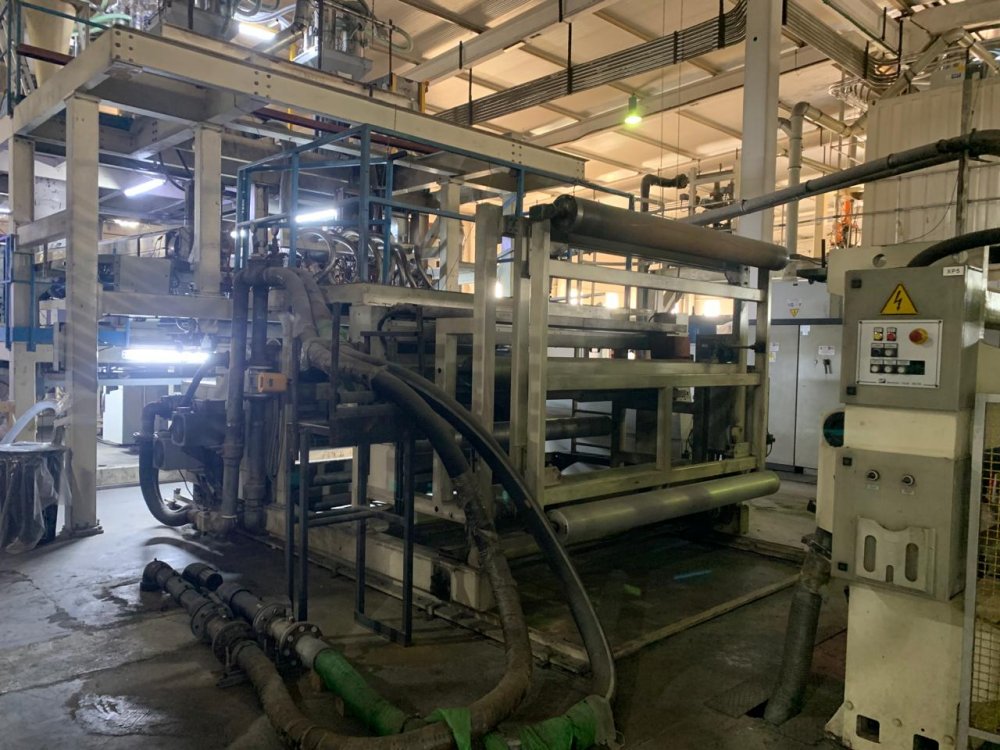

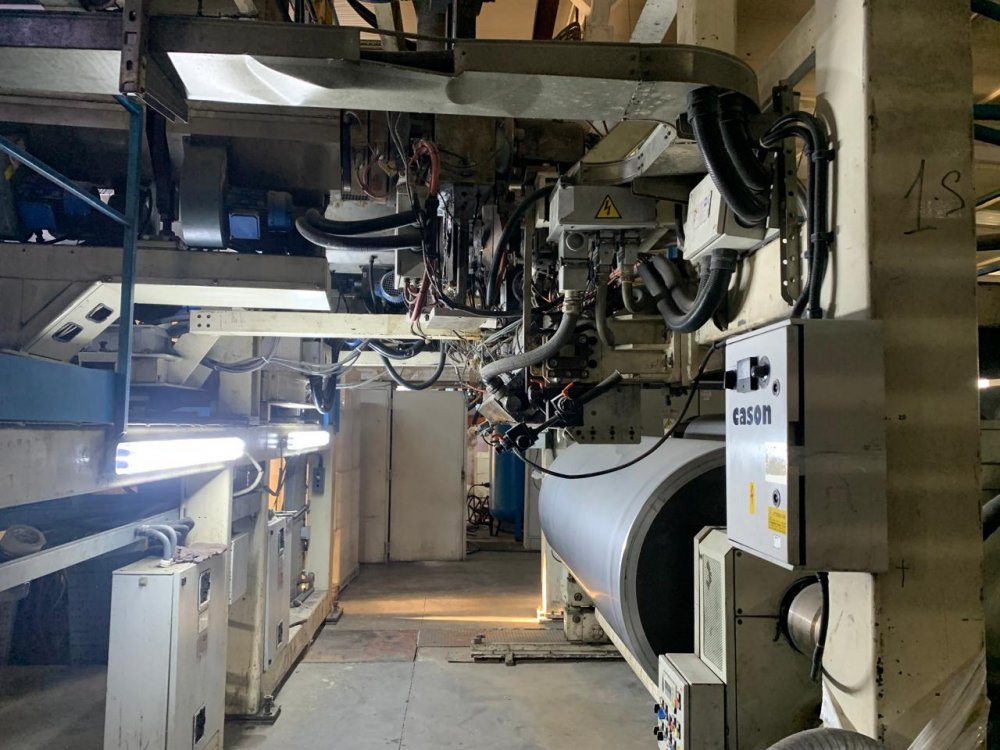

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA267
- Manufacturer
- TECNICOL
- Year
- 2000
- Number of layers
- 5
- Film structure
- CABAD
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Output (Kg/h)
- 1000kg/h

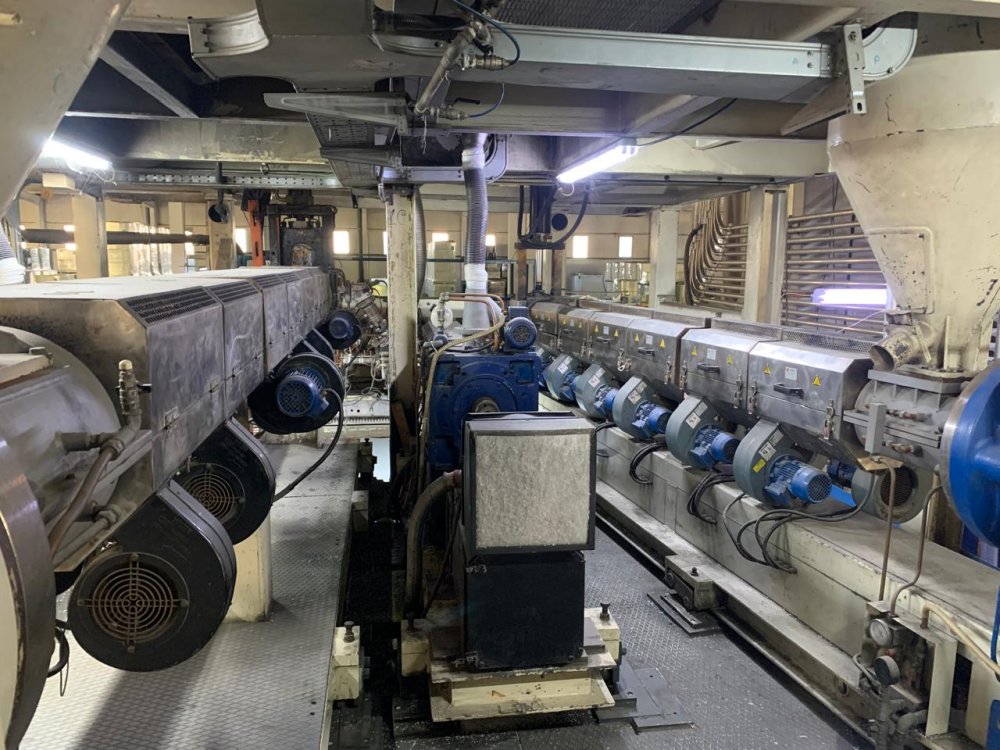

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 130mm
- Description 1

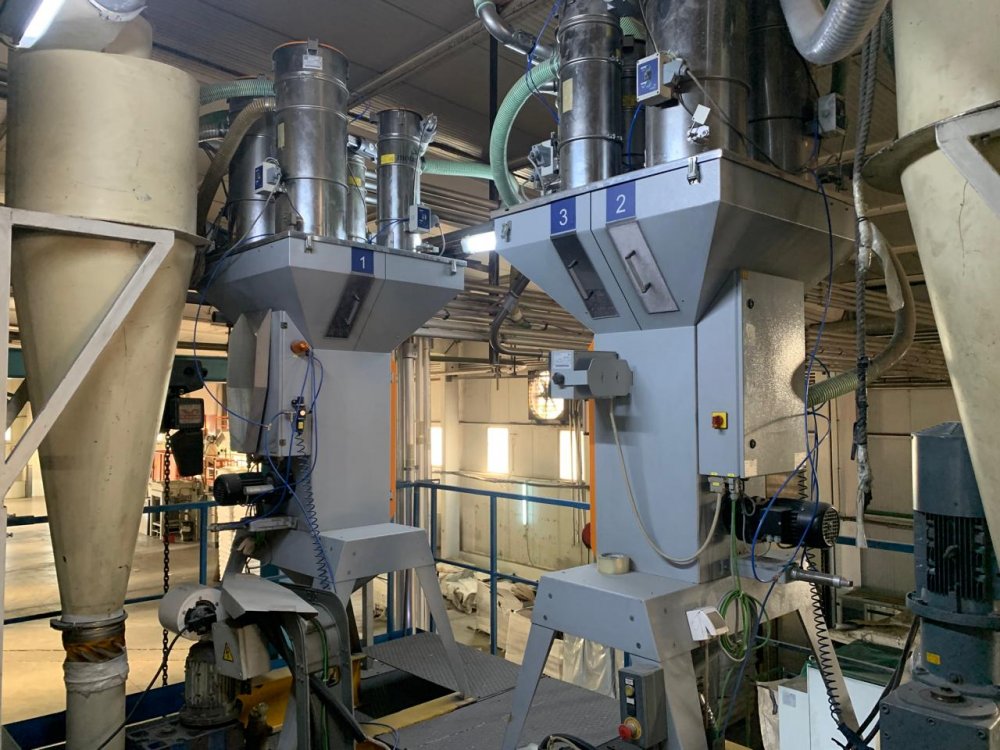

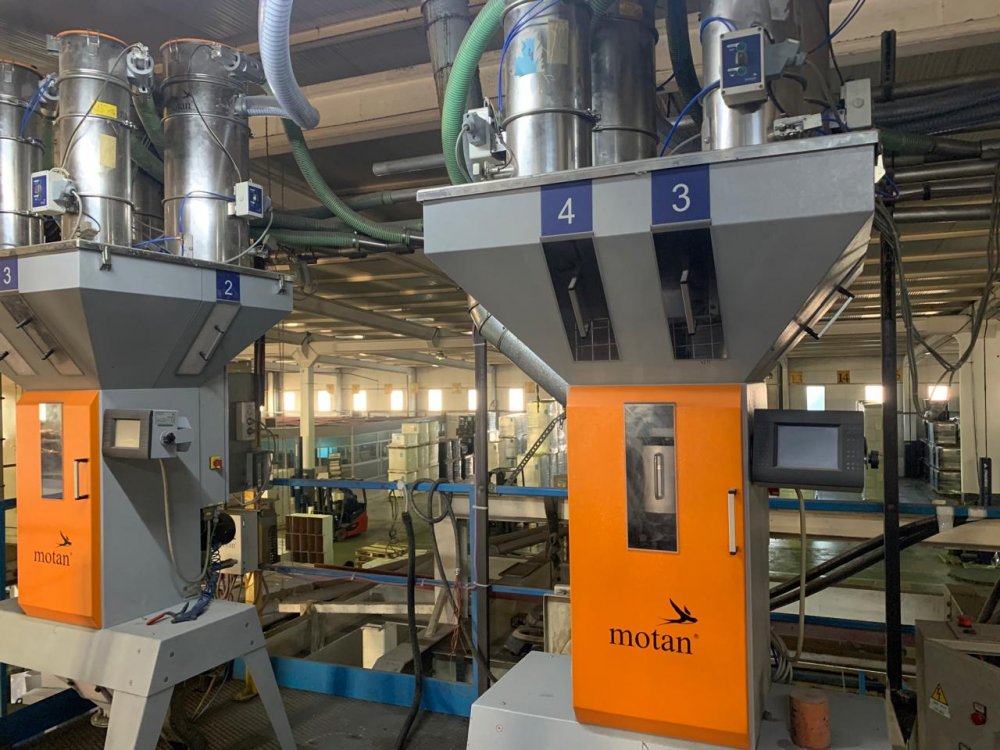

- Gravimetric dosing unit Motan 2019
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 160mm
- Description 2
- Gravimetric dosing unit Motan 2019
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 80mm
- Description 3
- Gravimetric dosing unit Motan 2019
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 80mm
- Description 4
- Gravimetric dosing unit Motan 2019
- Head description
- Simplast
- Die width (mm)
- 2660
- Thickness controll system
- Yes
- Web guide
- Yes

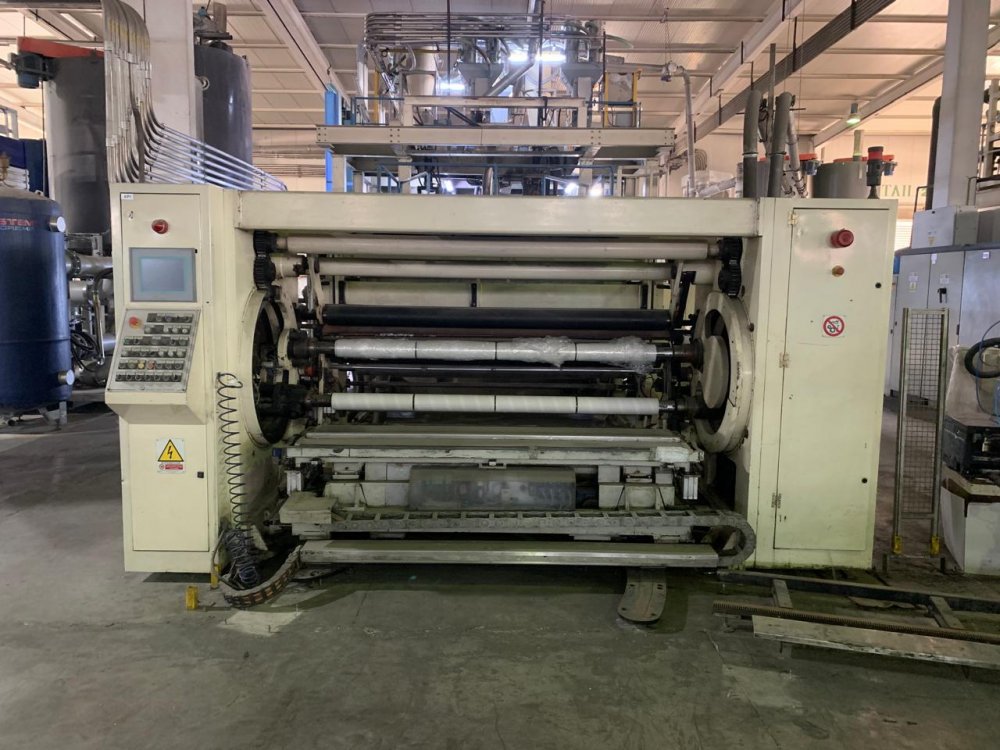

- Rewinder max reel diameter (mm)
- 422mm
- Rewinder description
- For Jumbo roll and machine rolls
- Note
- Estrusore A = diametro 130mm (estrusore che si sdoppia) Estrusore B = diametro 160mm (estrusore centrale) Estrusore C = diametro 80mm (strato interno) Estrusore D = diametro 80mm (strato esterno) Impianto dosatori Motan 2019 Possibilità di taglio 5 misure per produzioni di bobine da 15kg a 60kg ciascuna; Estrusione per film macchinabile, jumbo e colorato Die head width: 2660mm thickness control: NA rewinder type: a due braccia indipendenti ed alberi espansibili max. Diameter: 422mm
| Machine Code | CA267 |
| Manufacturer | TECNICOL |
| Year | 2000 |
| Number of layers | 5 |
| Film structure | CABAD |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Output (Kg/h) | 1000kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 130mm |
| Description 1 | Gravimetric dosing unit Motan 2019 |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 160mm |
| Description 2 | Gravimetric dosing unit Motan 2019 |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 80mm |
| Description 3 | Gravimetric dosing unit Motan 2019 |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 80mm |
| Description 4 | Gravimetric dosing unit Motan 2019 |
| Head description | Simplast |
| Die width (mm) | 2660 |
| Thickness controll system | Yes |
| Web guide | Yes |
| Rewinder max reel diameter (mm) | 422mm |
| Rewinder description | For Jumbo roll and machine rolls |
| Note | Estrusore A = diametro 130mm (estrusore che si sdoppia) Estrusore B = diametro 160mm (estrusore centrale) Estrusore C = diametro 80mm (strato interno) Estrusore D = diametro 80mm (strato esterno) Impianto dosatori Motan 2019 Possibilità di taglio 5 misure per produzioni di bobine da 15kg a 60kg ciascuna; Estrusione per film macchinabile, jumbo e colorato Die head width: 2660mm thickness control: NA rewinder type: a due braccia indipendenti ed alberi espansibili max. Diameter: 422mm |
