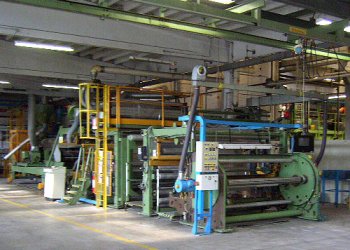

1 layers PRANDI Cast film extruder ** SOLD ** Ask more informations about a similar one

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA017
Manufacturer PRANDI
Year 1984
Number of layers 1
Material CPP
Film width (mm) 2000
Output (Kg/h) 350 kg/h gross output
Screw diam 160
Head description fixed extrusion die manual adjustment,
Die width (mm) 2300
Chill roll unit Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air;
Thickness controll system Electronic system thickness mesurement;
Corona treatment single-face corona treatment unit, FERRARINI & BENELLI
Web guide E+L
Rewinder max reel diameter (mm) 800
Rewinder description TURRET winder , transversal guillotine cut, control device: PLC Siemens
Additional information In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens

** SOLD **
