Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA194
- Manufacturer
- DOLCI
- Year
- 2011
- Number of layers
- 5
- Film structure
- 4 extruders
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- max 650 m/min
- Output (Kg/h)
- max 1200
- Extruder 1 Layer ref:
- 160/30
- Screw diam 1
- 160
- Extruder 2 Layer ref:
- 75/30
- Screw diam 2
- 75
- Extruder 3 Layer ref:
- 75/30
- Screw diam 3
- 75
- Extruder 4 Layer ref:
- 65/30
- Screw diam 4
- 65
- Head description
- Cloeren with automatic gauge correction. 5 layer Cleren feedblock
- Die width (mm)
- 2500
- Chill roll unit
- Diameters1490 and 300mm
- Thickness controll system
- NDC
- Web guide
- Yes
- Rewinder description
- Hand and machine reels With automatic 2" and 3" shaft extraction
- Note
- Products : - manual strech power 5 layers Width : 500 mm Thickness : 8-30 microns Aprox. Weight : 2kg/roll - automatic strech power 5 layers Width : 250mm, 500mm, 1000mm Thickness : 8-30 microns Aprox. Weight : 16 kg/roll - manual strech 5 layers Width 500mm Thickness 17-30 microns Weight 1.6-3.5 kg/roll - automatic strech 5 layers Width 250 mm, 500mm, 1000mm Thickness 17 or 30 microns Weight 16-17kg/roll Palletizer included
| Machine Code | CA194 |
| Manufacturer | DOLCI |
| Year | 2011 |
| Number of layers | 5 |
| Film structure | 4 extruders |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Speed (m/min) | max 650 m/min |
| Output (Kg/h) | max 1200 |
| Extruder 1 Layer ref: | 160/30 |
| Screw diam 1 | 160 |
| Extruder 2 Layer ref: | 75/30 |
| Screw diam 2 | 75 |
| Extruder 3 Layer ref: | 75/30 |
| Screw diam 3 | 75 |
| Extruder 4 Layer ref: | 65/30 |
| Screw diam 4 | 65 |
| Head description | Cloeren with automatic gauge correction. 5 layer Cleren feedblock |
| Die width (mm) | 2500 |
| Chill roll unit | Diameters1490 and 300mm |
| Thickness controll system | NDC |
| Web guide | Yes |
| Rewinder description | Hand and machine reels With automatic 2" and 3" shaft extraction |
| Note | Products : - manual strech power 5 layers Width : 500 mm Thickness : 8-30 microns Aprox. Weight : 2kg/roll - automatic strech power 5 layers Width : 250mm, 500mm, 1000mm Thickness : 8-30 microns Aprox. Weight : 16 kg/roll - manual strech 5 layers Width 500mm Thickness 17-30 microns Weight 1.6-3.5 kg/roll - automatic strech 5 layers Width 250 mm, 500mm, 1000mm Thickness 17 or 30 microns Weight 16-17kg/roll Palletizer included |
COLINES Breathable film
-
Machine Code: CA192
-
Year: 2009
-
Film width (mm): 2850

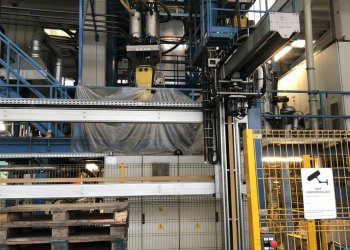

TECHNO COATING ENGINEERING 2000/5 PLUS 4E
-
