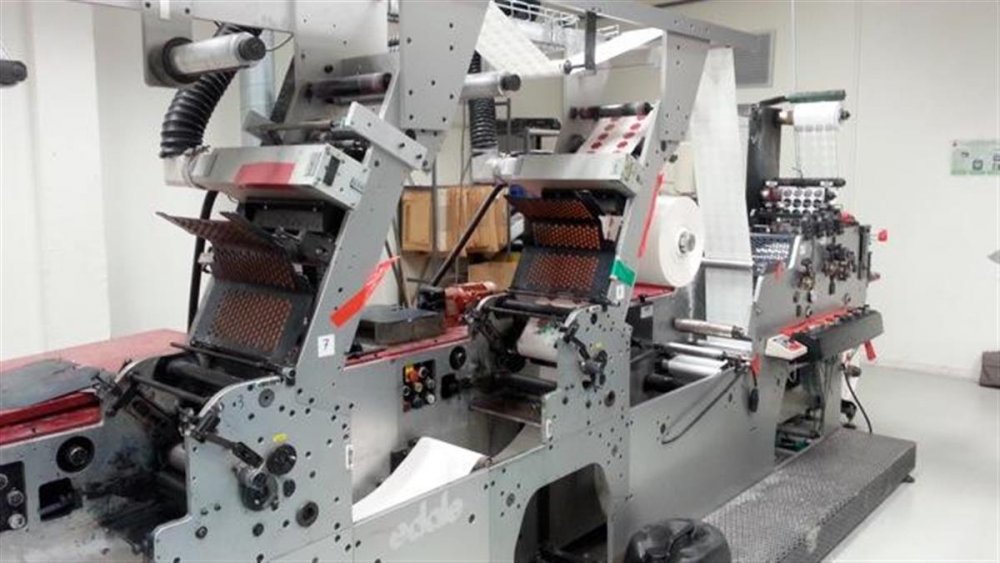

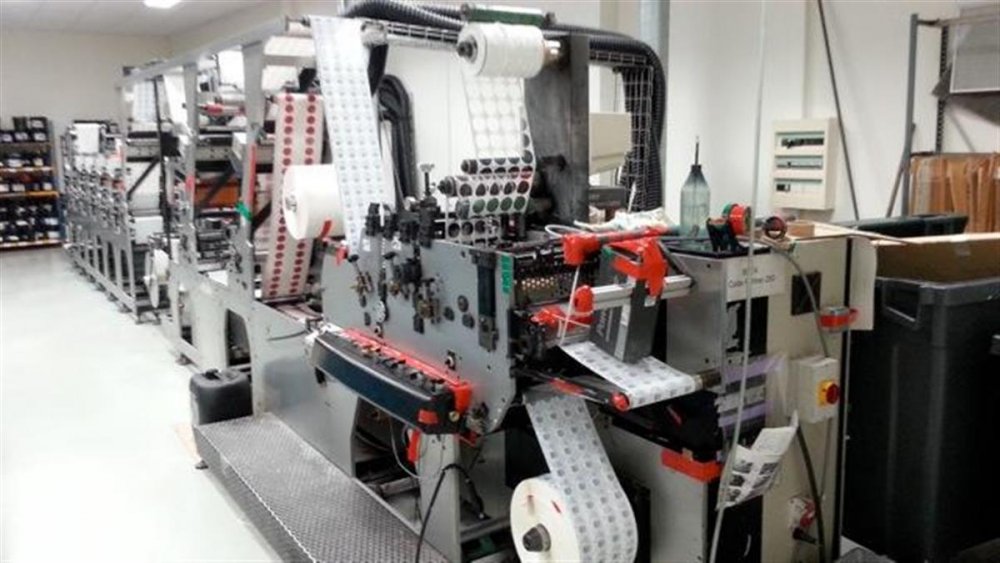

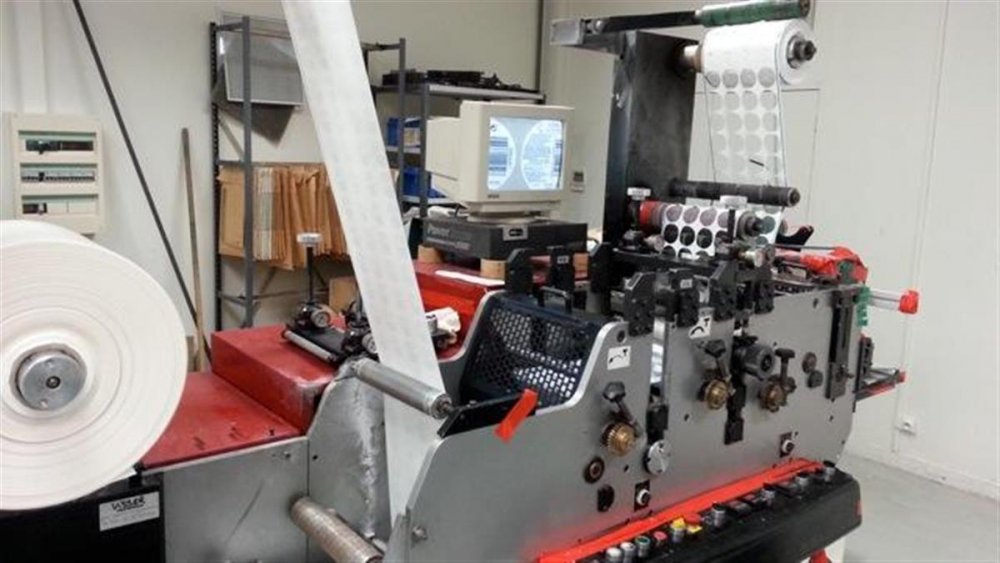

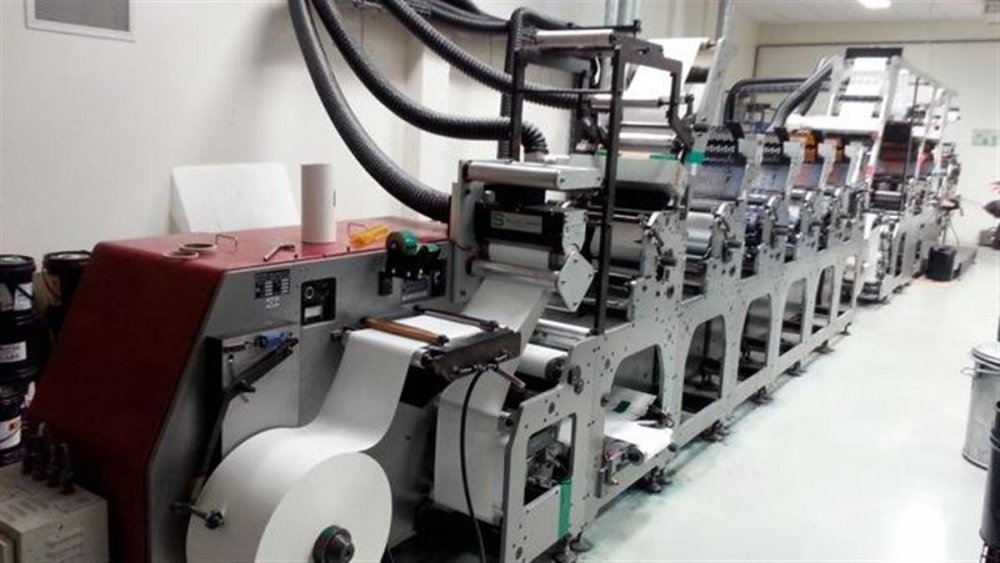

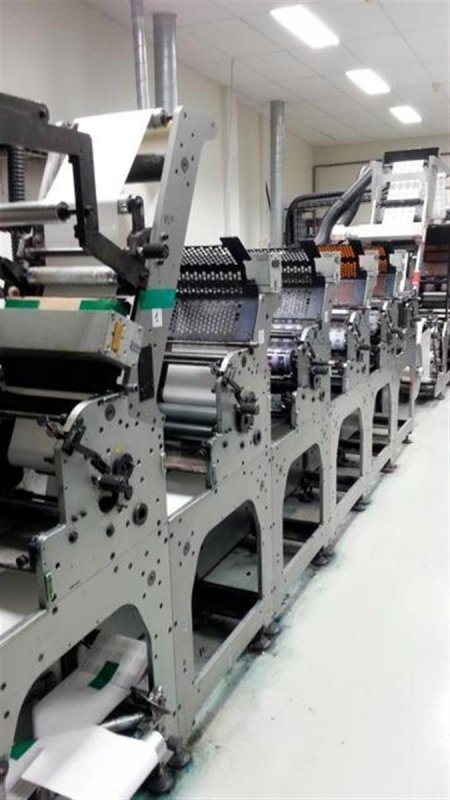

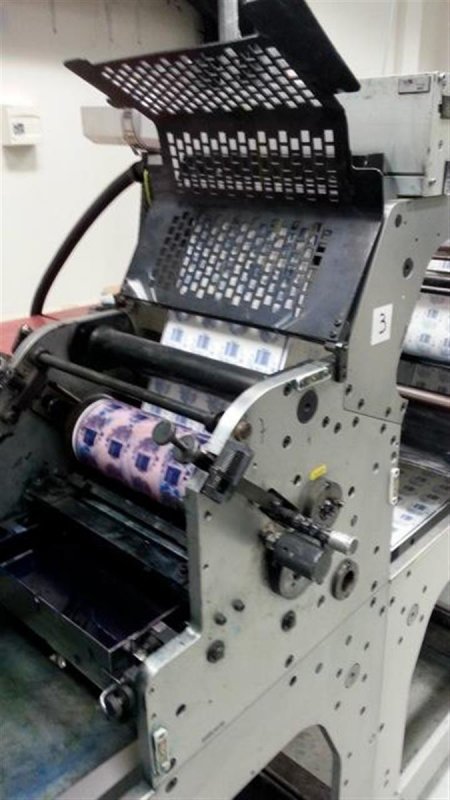

EDALE BETA 250 narrow web flexo printing machine

Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code	LAB77
Manufacturer	EDALE
Model	BETA 250
Year	2004
Number of colors	8
Web width (mm)	240
Print width (mm)	246
Drying	UV dryers x 8 .2 rotary die stations for Edale and Gallus tooling
Rewinder	Waste matrix rewind .Product rewind: 750mm
Additional information	Unwinders x 2, one at the beginning of the press and the second unwind after unit . Web tension unit x 2 with splicing table .E+L web guide x 2 Turner bar . Print units 6 + 2 with bridge to pass the first web on top of the two units .Laminating unit . Press is 14 meters long x 1.5 metres wide Add the foot print of the four UV cabinets, that are 1 meter behind the machine, each cabinet is 0.8 x 0.8 meter .When the machine is running with full UV, the power requirement is: 90 A, 3 x 400v + N +Earth Anilox 15
