Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- LAB270
- Manufacturer
- OMET
- Modello
- Varyflex V1
- Year
- 2011
- Number of colors
- 9
- Print width (mm)
- 850
- Drying
- 8 UV system with 1 lamp – E-Brike Gew 8 Cooling system for UV lamps 1 Extended hot air drying with 32 blowers with heating by means of a methane gas burner and exit cooling

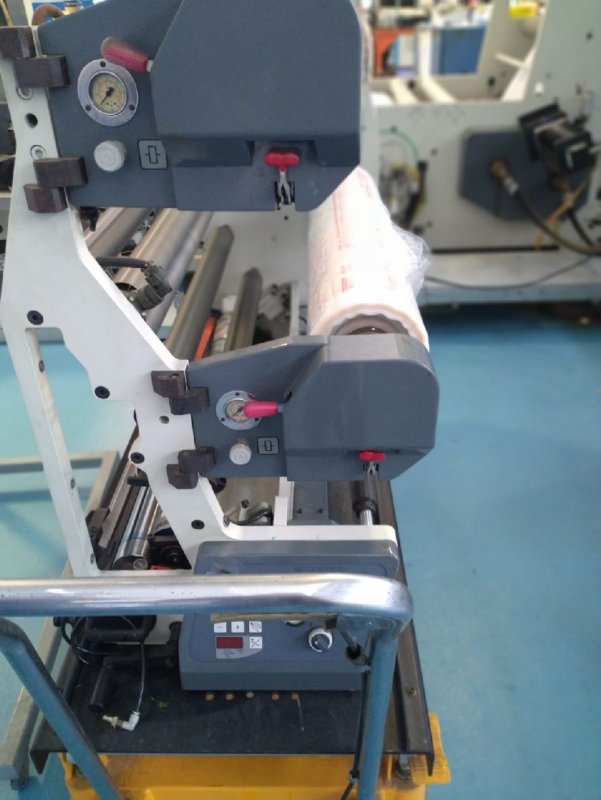

- Unwinder
- Single
- Rewinder
- Double turret
- Note

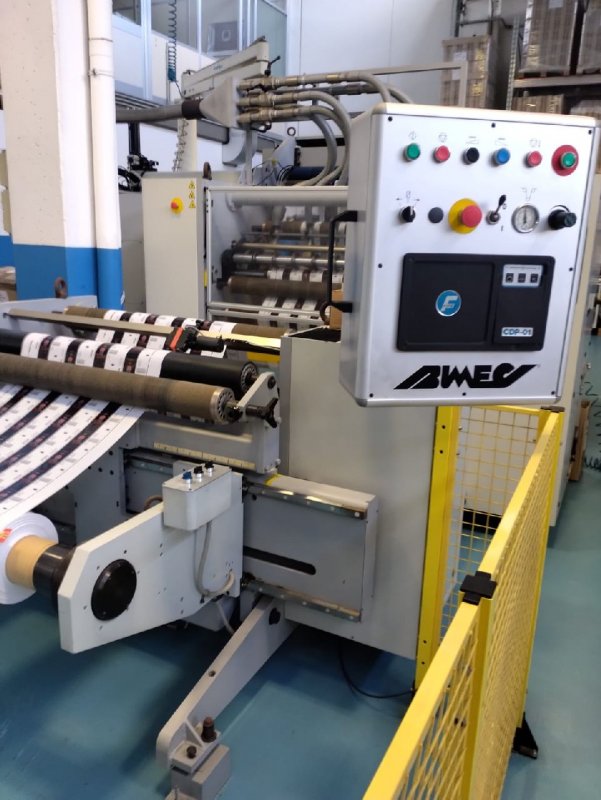

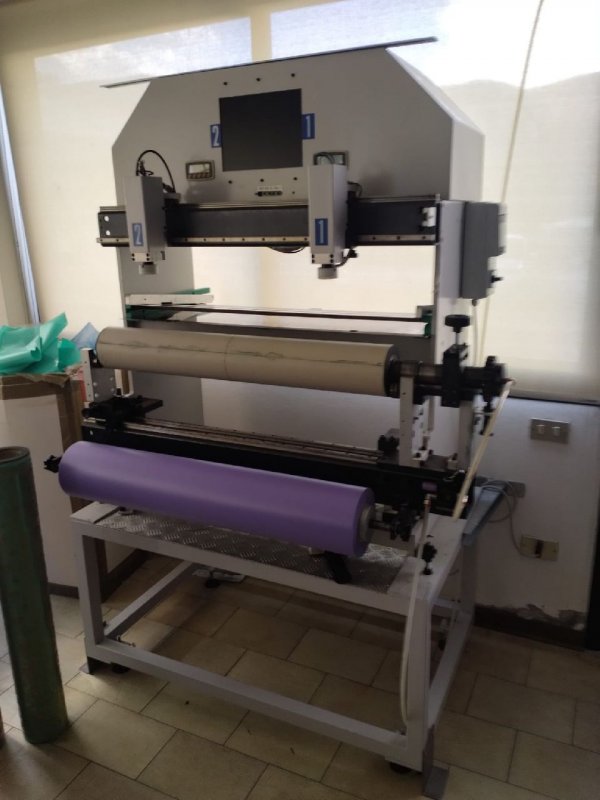

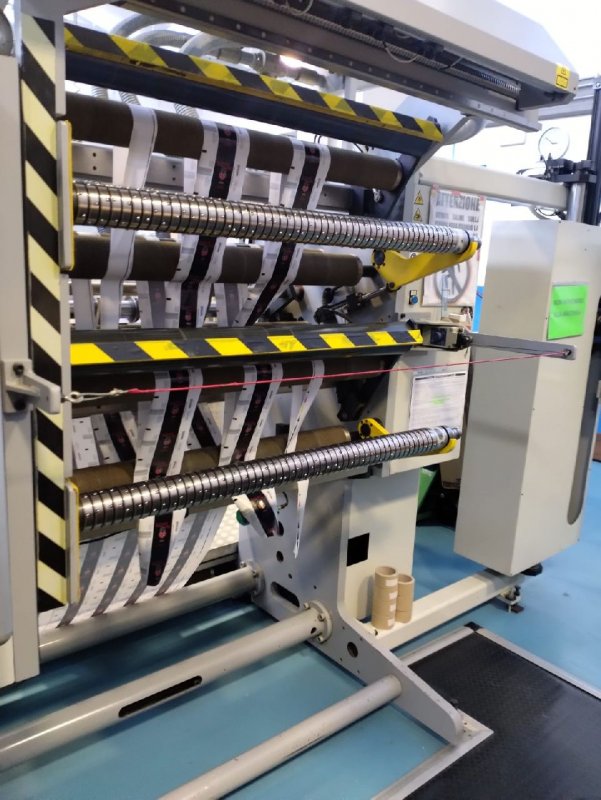

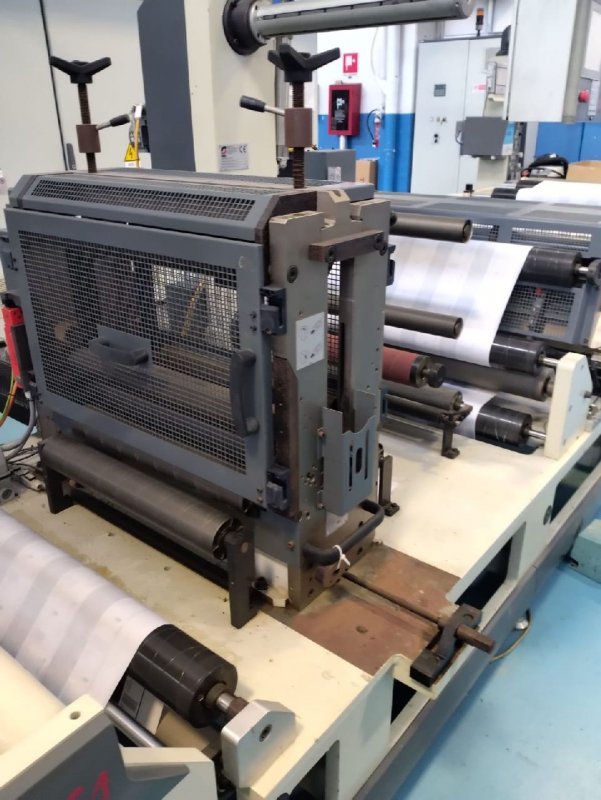

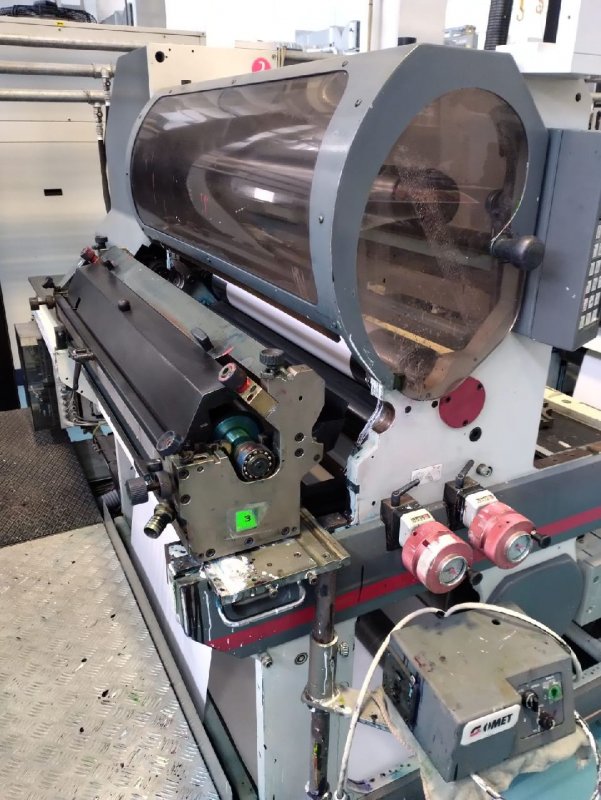

- Printing possibility - 8 colors +1 rotogravure printing unit -8 Flexo printing group, complete with drum, removable ink drawer - 1 Rotogravure printing group, specific for front side printing, complete with turning bar for back side printing for cold seal coating "PETROCOLL" 1265, from 2.8 to 3.2 gr/mq. at a maximum speed of 180 m/1 on paper Plate mounter Slitter Bimec, width 1200mm 1 Corona treatment 1 Paper cleaner with single-sided contact roller mod. ACE 1 Scrap removal station limit 530 mm 1 Viscometer for solvent inks 1 Ink supply pump and tank 1 Omet electronic register control for 8-color machine, complete with "gate" function. 1 "Vision 1" vision system 1 E+L Elscan motorized video camera 1 Cold foil group handling trolley 1 Sliding cold foil group that can be positioned in each group (no rails) 1 Longitudinal scissor cut, for Varyflex 6 Knife and counter knife for self-sharpening box cutting, Helios
| Machine Code | LAB270 |
| Manufacturer | OMET |
| Modello | Varyflex V1 |
| Year | 2011 |
| Number of colors | 9 |
| Print width (mm) | 850 |
| Drying | 8 UV system with 1 lamp – E-Brike Gew 8 Cooling system for UV lamps 1 Extended hot air drying with 32 blowers with heating by means of a methane gas burner and exit cooling |
| Unwinder | Single |
| Rewinder | Double turret |
| Note | Printing possibility - 8 colors +1 rotogravure printing unit -8 Flexo printing group, complete with drum, removable ink drawer - 1 Rotogravure printing group, specific for front side printing, complete with turning bar for back side printing for cold seal coating "PETROCOLL" 1265, from 2.8 to 3.2 gr/mq. at a maximum speed of 180 m/1 on paper Plate mounter Slitter Bimec, width 1200mm 1 Corona treatment 1 Paper cleaner with single-sided contact roller mod. ACE 1 Scrap removal station limit 530 mm 1 Viscometer for solvent inks 1 Ink supply pump and tank 1 Omet electronic register control for 8-color machine, complete with "gate" function. 1 "Vision 1" vision system 1 E+L Elscan motorized video camera 1 Cold foil group handling trolley 1 Sliding cold foil group that can be positioned in each group (no rails) 1 Longitudinal scissor cut, for Varyflex 6 Knife and counter knife for self-sharpening box cutting, Helios |
