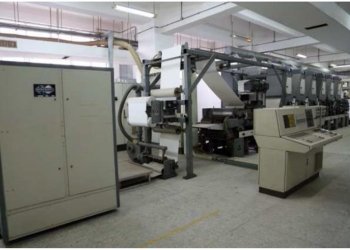

KOMORI CHAMBON 650 NL Gravure printing machine 6 colors ** SOLD ** Ask more informations about a similar one

Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.

Machine Code RO139
Manufacturer KOMORI CHAMBON
Model 650 NL
Year 1996
Number of colors 6
Trolley system Yes
Print width (mm) 650
Print repeat range (mm) 310-620 mm
Unwinder type AMAL AUTO SPLICE
Rewinder type MONOMATIC AUTO SPLICE
Max reel diameter rewinder (mm) 1000
Additional information Machine for producing of cigarette packets Web flow (operator’s view):right to left Max. production speed:150 m/min. or 400 revolutions/min. (*) AMAL auto splice unwinder with FIFE edge guide (*) The quality of the substrate, it’s grammage, it’s thickness and the shape of blank determine maximum production speed. Substrate 60 to 140 gsm Paper or complex, Paper/laminated Register accuracy(*) : Print to print 4 colors … +/- 0.15 mm Print to print 6 colors … +/- 0.20 mm Cut to print ……………. +/- 0.20 mm (*) All these register specification accuracies are given for 95% cartons. Electrical specification :380 V +/- 10%, 3 phases and neutral 50 Hz +/- 2% Utilities requirements: Power installed 290 KVA Compressed air 100 Nm/3-6 bars Chilled water 14 m3/h-3/6 bars 12° to 15°C LABEL CUTTER AND VERTICAL DELIVERY Label length:70 to 150 mm Label width:40 to 650 mm Number of labels across:1 to 7 (*) (*) In standard machine, label cutter and vertical delivery are equipped for 4 labels across. ONE AUTOMATIC SPLICER MONOMATIC auto splice Rewinder with -FIFE CDP-01 edge guide -FIFE CSP-01 SUPERVISION Color Control Min. web width 400 mm Max. reel diameter 1000 mm Manual lateral adjustment+/- 20 mm Two full roll positions Dual direction unwind Equipped with 2 pneumatic spindles (3” diameter) ONE WEB CLEANER Two heads for both web sides Dust collector ONE LATERAL WEB GUIDE Web guiding by web center line Correction range +/- 15 mm Accuracy +/- 0.10 mm ONE INFEED UNIT Ensures perfect isolation from unwind and constant tension through printing section. Pneumatic on/off nip roller on main desk

** SOLD **
