** SOLD **

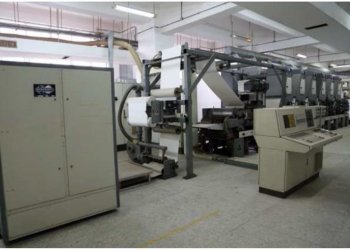

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
about a similar one
- Machine Code
- RO139
- Manufacturer
- KOMORI CHAMBON
- Modello
- 650 NL
- Year
- 1996
- Number of colors
- 6
- Trolley system
- Yes
- Print width (mm)
- 650
- Print repeat range (mm)
- 310-620 mm
- Unwinder type
- AMAL AUTO SPLICE
- Rewinder type
- MONOMATIC AUTO SPLICE
- Max reel diameter rewinder (mm)
- 1000
- Note
- Machine for producing of cigarette packets Web flow (operator’s view):right to left Max. production speed:150 m/min. or 400 revolutions/min. (*) AMAL auto splice unwinder with FIFE edge guide (*) The quality of the substrate, it’s grammage, it’s thickness and the shape of blank determine maximum production speed. Substrate 60 to 140 gsm Paper or complex, Paper/laminated Register accuracy(*) : Print to print 4 colors … +/- 0.15 mm Print to print 6 colors … +/- 0.20 mm Cut to print ……………. +/- 0.20 mm (*) All these register specification accuracies are given for 95% cartons. Electrical specification :380 V +/- 10%, 3 phases and neutral 50 Hz +/- 2% Utilities requirements: Power installed 290 KVA Compressed air 100 Nm/3-6 bars Chilled water 14 m3/h-3/6 bars 12° to 15°C LABEL CUTTER AND VERTICAL DELIVERY Label length:70 to 150 mm Label width:40 to 650 mm Number of labels across:1 to 7 (*) (*) In standard machine, label cutter and vertical delivery are equipped for 4 labels across. ONE AUTOMATIC SPLICER MONOMATIC auto splice Rewinder with -FIFE CDP-01 edge guide -FIFE CSP-01 SUPERVISION Color Control Min. web width 400 mm Max. reel diameter 1000 mm Manual lateral adjustment+/- 20 mm Two full roll positions Dual direction unwind Equipped with 2 pneumatic spindles (3” diameter) ONE WEB CLEANER Two heads for both web sides Dust collector ONE LATERAL WEB GUIDE Web guiding by web center line Correction range +/- 15 mm Accuracy +/- 0.10 mm ONE INFEED UNIT Ensures perfect isolation from unwind and constant tension through printing section. Pneumatic on/off nip roller on main desk
Machine Code | RO139 |
Manufacturer | KOMORI CHAMBON |
Modello | 650 NL |
Year | 1996 |
Number of colors | 6 |
Trolley system | Yes |
Print width (mm) | 650 |
Print repeat range (mm) | 310-620 mm |
Unwinder type | AMAL AUTO SPLICE |
Rewinder type | MONOMATIC AUTO SPLICE |
Max reel diameter rewinder (mm) | 1000 |
Note | Machine for producing of cigarette packets Web flow (operator’s view):right to left Max. production speed:150 m/min. or 400 revolutions/min. (*) AMAL auto splice unwinder with FIFE edge guide (*) The quality of the substrate, it’s grammage, it’s thickness and the shape of blank determine maximum production speed. Substrate 60 to 140 gsm Paper or complex, Paper/laminated Register accuracy(*) : Print to print 4 colors … +/- 0.15 mm Print to print 6 colors … +/- 0.20 mm Cut to print ……………. +/- 0.20 mm (*) All these register specification accuracies are given for 95% cartons. Electrical specification :380 V +/- 10%, 3 phases and neutral 50 Hz +/- 2% Utilities requirements: Power installed 290 KVA Compressed air 100 Nm/3-6 bars Chilled water 14 m3/h-3/6 bars 12° to 15°C LABEL CUTTER AND VERTICAL DELIVERY Label length:70 to 150 mm Label width:40 to 650 mm Number of labels across:1 to 7 (*) (*) In standard machine, label cutter and vertical delivery are equipped for 4 labels across. ONE AUTOMATIC SPLICER MONOMATIC auto splice Rewinder with -FIFE CDP-01 edge guide -FIFE CSP-01 SUPERVISION Color Control Min. web width 400 mm Max. reel diameter 1000 mm Manual lateral adjustment+/- 20 mm Two full roll positions Dual direction unwind Equipped with 2 pneumatic spindles (3” diameter) ONE WEB CLEANER Two heads for both web sides Dust collector ONE LATERAL WEB GUIDE Web guiding by web center line Correction range +/- 15 mm Accuracy +/- 0.10 mm ONE INFEED UNIT Ensures perfect isolation from unwind and constant tension through printing section. Pneumatic on/off nip roller on main desk |
