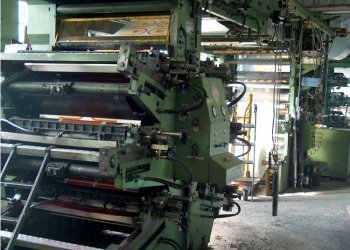

CARINT GEMINI S 12 flexo press 6 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL490
Manufacturer: CARINT
Modello: GEMINI S 12
Year: 1989
Number of colors: 6
Overhaul/renovation: RENOVATED IN 2004
Gearless: No
Fast sleeve change: No
Web width (mm): 1050
Print width (mm): 1000
Min print repeat (mm): 350
Max print repeat (mm): 800
Unwinder type: TURRET
Rewinder type: TURRET
Drying: THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS
Web guides: 2
Inking system: 6 doctor blades;
Anilox: 11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm
Print cylinders: 57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm
Note: Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying;

Machine Code	FL490
Manufacturer	CARINT
Modello	GEMINI S 12
Year	1989
Number of colors	6
Overhaul/renovation	RENOVATED IN 2004
Gearless	No
Fast sleeve change	No
Web width (mm)	1050
Print width (mm)	1000
Min print repeat (mm)	350
Max print repeat (mm)	800
Unwinder type	TURRET
Rewinder type	TURRET
Drying	THERMAL OIL or HOT WATER THROUGH 2 HEAT EXCHANGERS
Web guides	2
Inking system	6 doctor blades;
Anilox	11 pieces: 4x 100L/cm, 2x120, 2x160, 1x200, 2x220L/cm
Print cylinders	57 pieces , plate 2.54mm printing cylinders/gears : 4 x 400mm; 6x 420mm; 5x430mm; 6x550mm; 6x560mm; 6x640mm; 6x660mm; 6x680mm; 6x720mm; 6x730mm
Note	Mechanical Speed : max 200m/min. Dimensions L x H x W : 9x 4x 2,6m; Cooling unit; Drying section tunnel and between colours drying;
