** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1165
- Manufacturer
- KBA FLEXOTECNICA
- Modello
- FX8
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

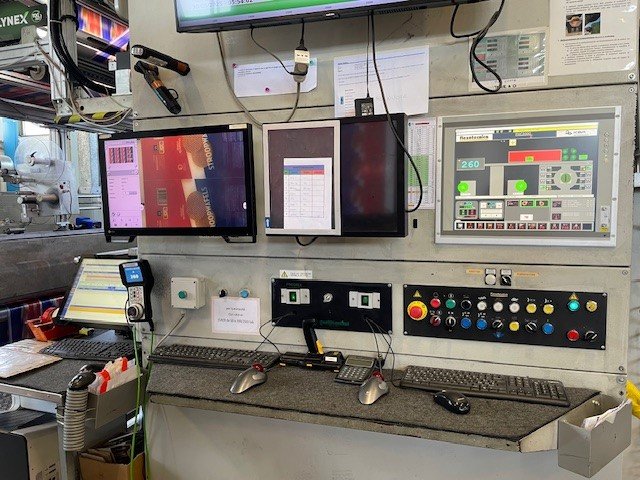

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 800
- Unwinder type
- Automatic Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil

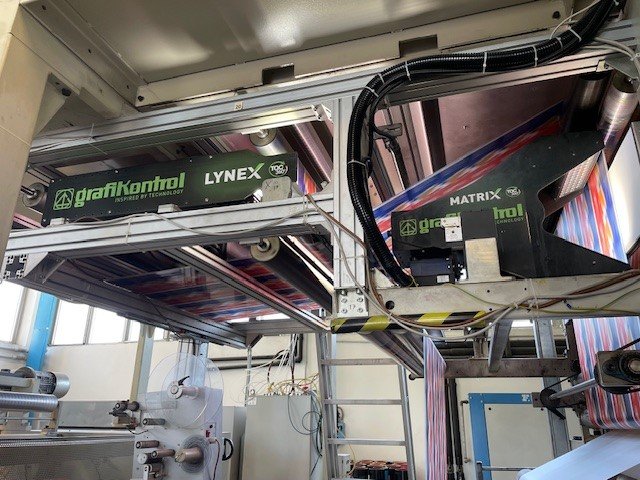

- Videocamera
- Yes Grafykontrol Matrix with auto register control an additinal Grafykontrol 100% inspection
- Corona treatment
- Yes ME.RO.
- Web guides
- 2 webguide system 1 before printing unit 1 before winder

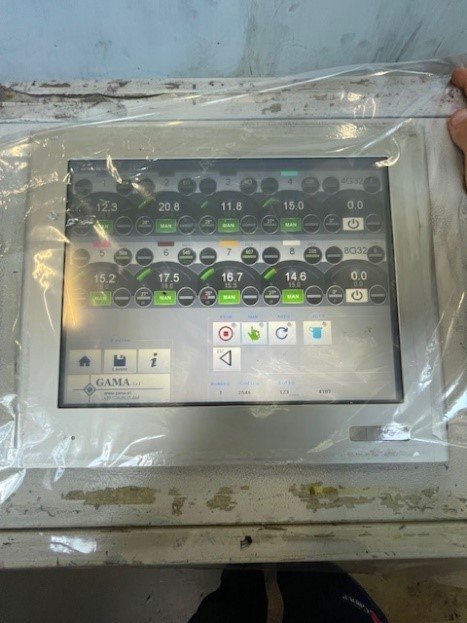

- Vyscosity control
- Gama Viscosity Control System VISG265VID
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades
- Anilox
- 40 approx.3x90 L/cm-vol.23, 1x L/cm-vol.17, 1x140 L/cm-vol. 9, 1x120 L/cm-vol. 11,5, 2x120 L/cm-vol. 10, 1x220 L/cm-vol. 11, 5x280L/cm-vol. 8, 3x300 L/cm-vol. 7, 2x320 L/cm-vol. 6, 3x360 L/cm-vol. 6, 3x380 L/cm-vol. 5, 2x420 L/cm-vol. 4,2 , 6x460L/cm-vol. 4, 1x520 L/cm-vol. 4,5, 1x521 L/cm-vol. 4,5, 1x Apex S, 1x Apex M, 1xApex L, 1xApex XL
- Print Sleeves
- 400 approx. repeats as follows: 400,410,420,430,440,450,460,470,490,500,510,520,530,535,540,550,560,570,580,590,600,620,625,630,640,660,670,680,700,710,720,740,760,770,780
- Print cylinders
- 2 sets of 8 carriers
- Note
- Automatic Sleeve storage Stimm
| Machine Code | FL1165 |
| Manufacturer | KBA FLEXOTECNICA |
| Modello | FX8 |
| Year | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 800 |
| Unwinder type | Automatic Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil |
| Videocamera | Yes Grafykontrol Matrix with auto register control an additinal Grafykontrol 100% inspection |
| Corona treatment | Yes ME.RO. |
| Web guides | 2 webguide system 1 before printing unit 1 before winder |
| Vyscosity control | Gama Viscosity Control System VISG265VID |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades |
| Anilox | 40 approx.3x90 L/cm-vol.23, 1x L/cm-vol.17, 1x140 L/cm-vol. 9, 1x120 L/cm-vol. 11,5, 2x120 L/cm-vol. 10, 1x220 L/cm-vol. 11, 5x280L/cm-vol. 8, 3x300 L/cm-vol. 7, 2x320 L/cm-vol. 6, 3x360 L/cm-vol. 6, 3x380 L/cm-vol. 5, 2x420 L/cm-vol. 4,2 , 6x460L/cm-vol. 4, 1x520 L/cm-vol. 4,5, 1x521 L/cm-vol. 4,5, 1x Apex S, 1x Apex M, 1xApex L, 1xApex XL |
| Print Sleeves | 400 approx. repeats as follows: 400,410,420,430,440,450,460,470,490,500,510,520,530,535,540,550,560,570,580,590,600,620,625,630,640,660,670,680,700,710,720,740,760,770,780 |
| Print cylinders | 2 sets of 8 carriers |
| Note | Automatic Sleeve storage Stimm |
