Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
- Machine Code
- FL1186
- Manufacturer
- FISCHER & KRECKE
- Modello
- 16S-10k
- Year
- 2005
- Number of colors
- 10
- Overhaul/renovation
- In 2022: New Main OCS Computer New Valve Island for CI New Valve Island for Winder & Rewinder Spare Rexroth motors for: Printing shaft Anilox roller Two carbon printing shafts included
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1050
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 750
- Unwinder type
- Turret non stop
- Max reel diameter unwinder (mm)
- 1000

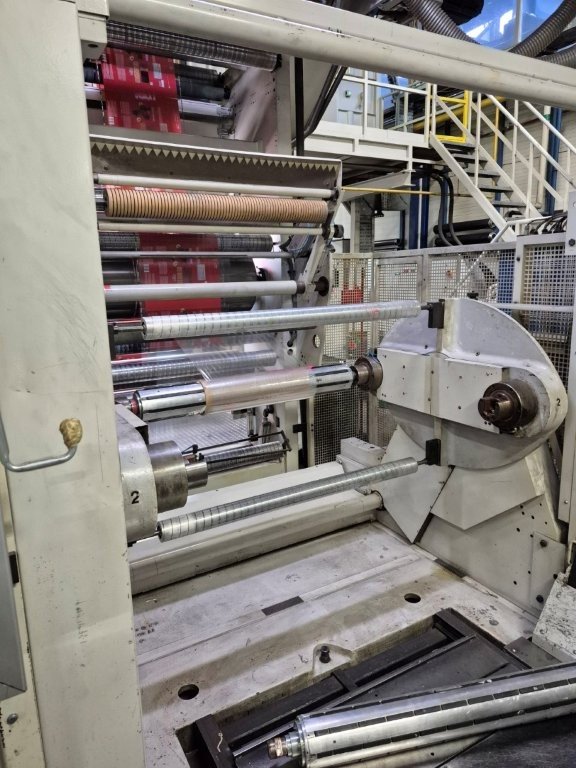

- Rewinder type
- Double Unwinding Shaft with Dancing Rollers
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
- Videocamera
- BST IPQ Print Control / View System Latest-generation inspection & print monitoring technology. (installed in 2023)
- Web guides
- Yes, before CI and before winder
- Inking system
- Closed chamber doctor blades and pneumatic ink pumps
- Anilox
- 4x 470 L/cm-Vol.3,5 4x 420 L/cm-Vol. 4 4x 340 L/cm-Vol.4,5 2x 340L/cm -Vol.5,5 3x 330 L/cm-Vol.5,5 2x 280 L/cm-Vol. 5,5 1x 280 L/cm-Vol. 8 2x 220 L/cm-Vol. 7 1x 195 L/cm-Vol. 8,5 1x 180 L/cm-Vol. 9 1x 160 L/cm-Vol. 14 1x 160 L/cm-Vol. 10 1x 100 L/cm-Vol. 14 2x 80 L/cm-Vol. 20
- Print Sleeves
- 10x360mm, 10x380mm, 10x390mm, 18x 400mm, 18x 420mm, 10x 430mm, 20x 440mm, 10x450mm, 10x460mm, 10x470mm, 10x480mm, 10x 500mm, 10x 510mm, 10x 520mm, 10x 530mm, 10x 540mm, 10x560mm, 10x580mm, 10x600m, 10x 610mm, 10x 620mm, 10x 630mm, 10x640mm, 10x 650mm, 10x 660mm
- Note
- Dancing rollers system
| Machine Code | FL1186 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 16S-10k |
| Year | 2005 |
| Number of colors | 10 |
| Overhaul/renovation | In 2022: New Main OCS Computer New Valve Island for CI New Valve Island for Winder & Rewinder Spare Rexroth motors for: Printing shaft Anilox roller Two carbon printing shafts included |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1100 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 750 |
| Unwinder type | Turret non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Double Unwinding Shaft with Dancing Rollers |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | BST IPQ Print Control / View System Latest-generation inspection & print monitoring technology. (installed in 2023) |
| Web guides | Yes, before CI and before winder |
| Inking system | Closed chamber doctor blades and pneumatic ink pumps |
| Anilox | 4x 470 L/cm-Vol.3,5 4x 420 L/cm-Vol. 4 4x 340 L/cm-Vol.4,5 2x 340L/cm -Vol.5,5 3x 330 L/cm-Vol.5,5 2x 280 L/cm-Vol. 5,5 1x 280 L/cm-Vol. 8 2x 220 L/cm-Vol. 7 1x 195 L/cm-Vol. 8,5 1x 180 L/cm-Vol. 9 1x 160 L/cm-Vol. 14 1x 160 L/cm-Vol. 10 1x 100 L/cm-Vol. 14 2x 80 L/cm-Vol. 20 |
| Print Sleeves | 10x360mm, 10x380mm, 10x390mm, 18x 400mm, 18x 420mm, 10x 430mm, 20x 440mm, 10x450mm, 10x460mm, 10x470mm, 10x480mm, 10x 500mm, 10x 510mm, 10x 520mm, 10x 530mm, 10x 540mm, 10x560mm, 10x580mm, 10x600m, 10x 610mm, 10x 620mm, 10x 630mm, 10x640mm, 10x 650mm, 10x 660mm |
| Note | Dancing rollers system |
