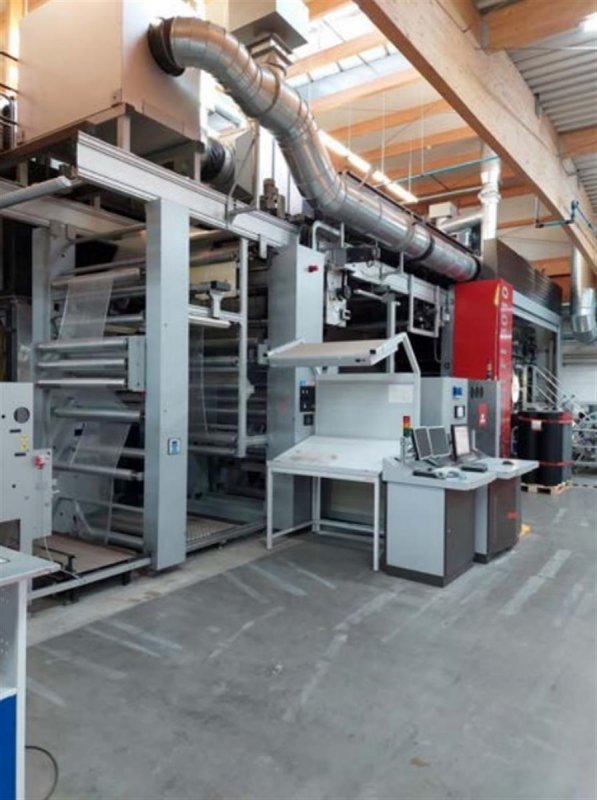

COMEXI FI 3010 Flexo central drum printing press 10 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL1021
Manufacturer
COMEXI
Model
FI 3010
Year
2008
Number of colors
10
Print possibilityes
10+0
Gearless
Yes
Fast sleeve change
Yes

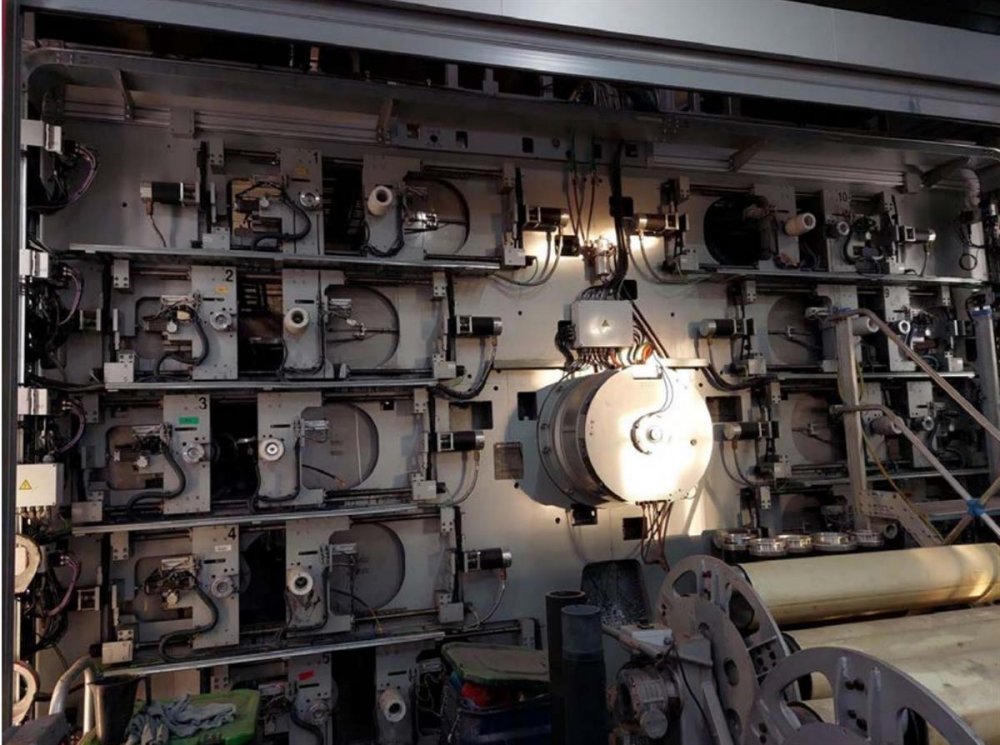

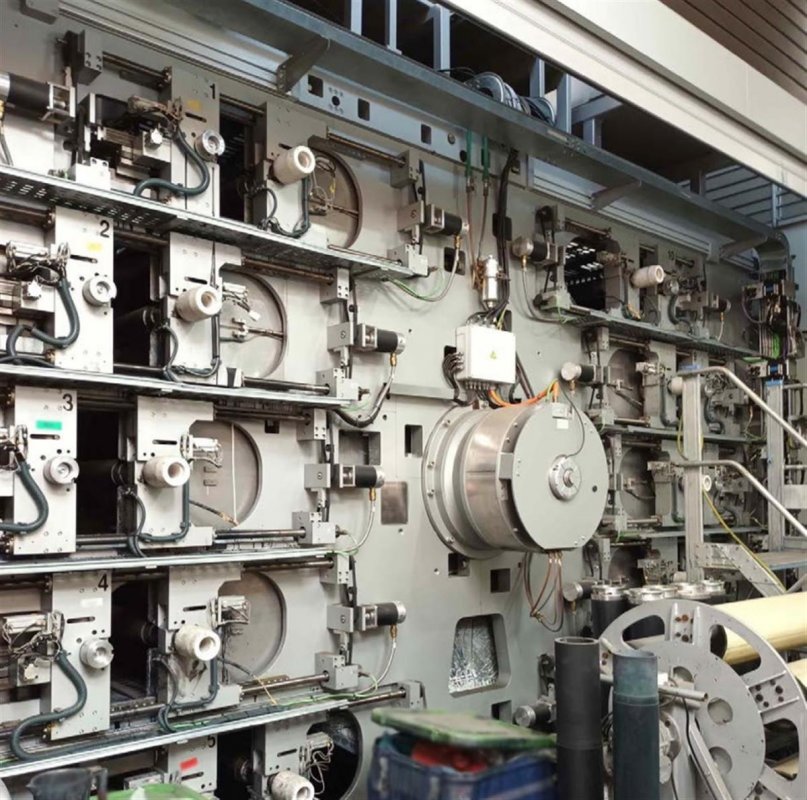

4 motor per deck CNC position system
Yes

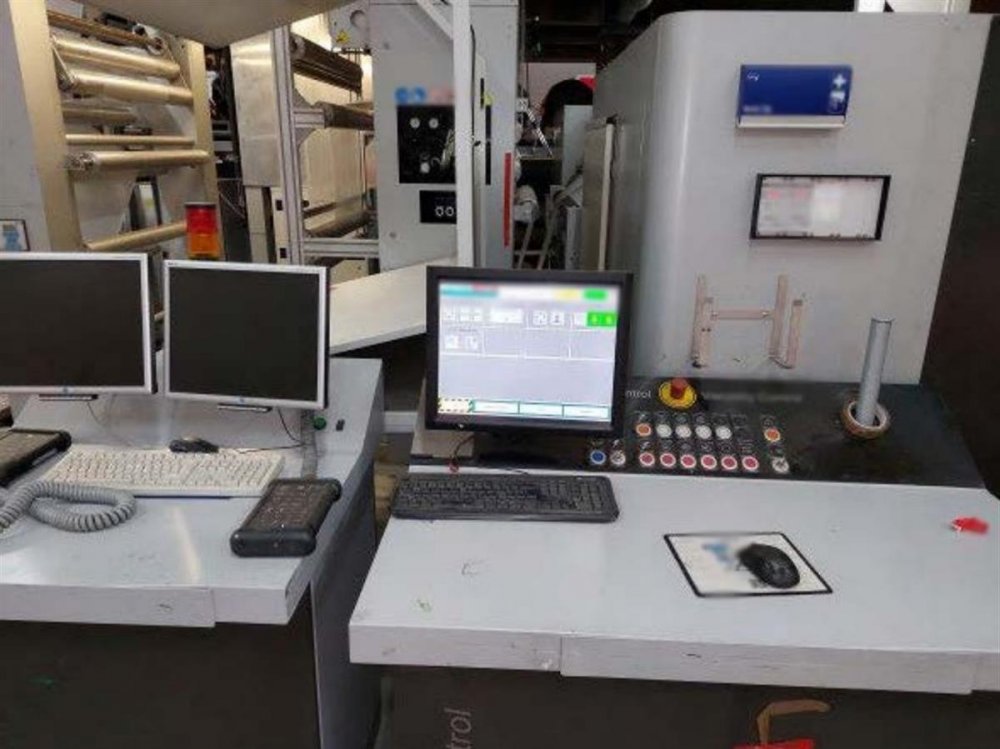

Computer supervision
No
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
400
Max print repeat (mm)
1250
Unwinder type
Turret shaftless automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret shaftless automatic
Max reel diameter rewinder (mm)
1000

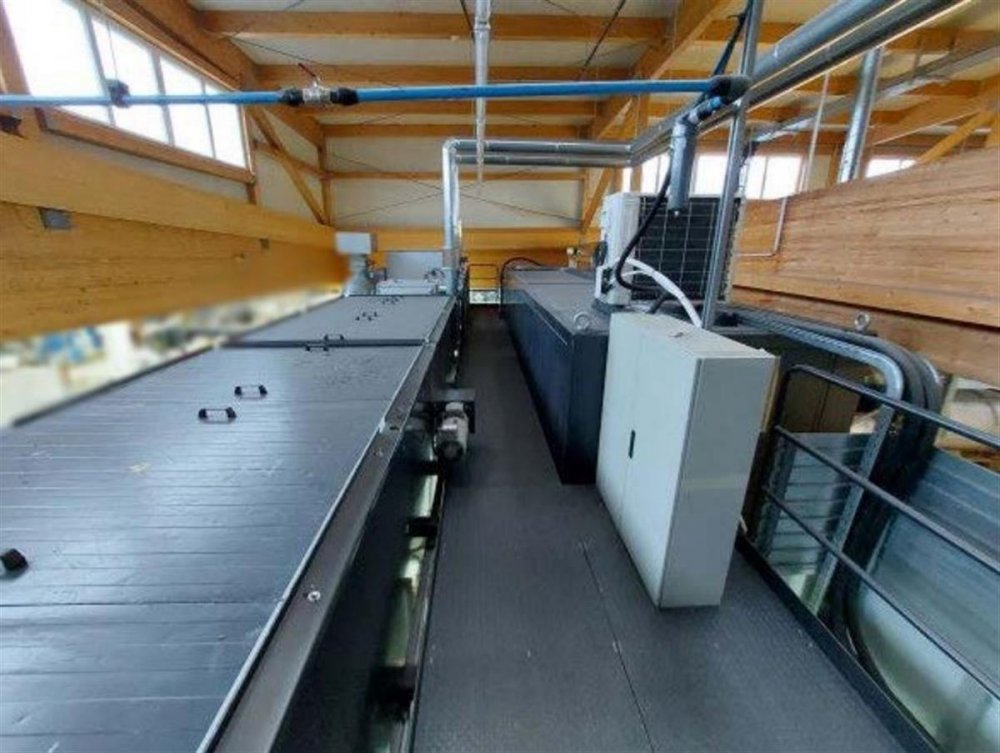

Drying
2 zones , four fans Steam. Boiler excluded
Videocamera
AVT Print Vision Jupiter
Corona treatment
Softal
Web guides
BST in and out

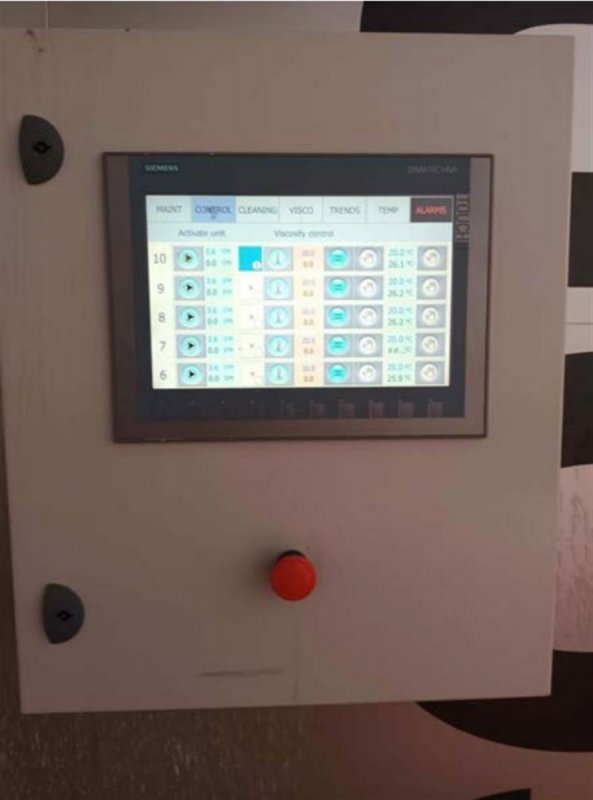

Vyscosity control
Yes automatic
Washing system
Yes Sincroclean
Inking system
Ceramic anilox + Chambered doctor blade
Anilox
23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
Print Sleeves
400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
Additional information
Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw
Machine Code FL1021
Manufacturer COMEXI
Model FI 3010
Year 2008
Number of colors 10
Print possibilityes 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision No
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 400
Max print repeat (mm) 1250
Unwinder type Turret shaftless automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret shaftless automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones , four fans Steam. Boiler excluded
Videocamera AVT Print Vision Jupiter
Corona treatment Softal
Web guides BST in and out
Vyscosity control Yes automatic
Washing system Yes Sincroclean
Inking system Ceramic anilox + Chambered doctor blade
Anilox 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
Print Sleeves 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
Additional information Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw
