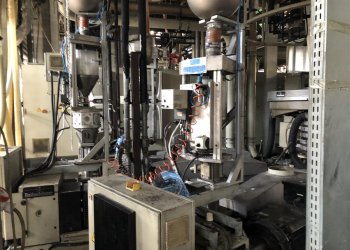

3 layers REIFENHAUSER blown film plant

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Machine Code EX686
Manufacturer REIFENHAUSER
Year 2003
Number of layers 3
Film structure ABC
Material LDPE, LLDPE, MDPE Others in blends
Film Width (mm) 2300
Output (Kg/h) 400
Extruder 1 Layer ref: A
Screw diam 60
Description Gravimetric dosing system Doteco 6 comp
Extruder 2 Layer ref: B
Screw diam 80
Description Gravimetric dosing system Doteco 6 comp
Extruder 3 Layer ref: C
Screw diam 60
Description Gravimetric dosing system Doteco 6 comp
Die diam (mm) 400 mm
Thickness controll system Automatic thickness profile control
Bubble cage Motorized
Take off unit oscillating take off unit Reinhold wide 2300 mm with gusseting panels
Corona treatment MERO
Web guide E+L
Rewinder max reel diameter 1000
Rewinder description Model UFA 01 A1

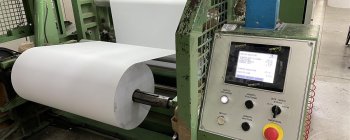

Additional information In line Uteco printing unit 8 colors wide 2000 mm Edge trim recovery Macchi Recotrim
