** SOLD **

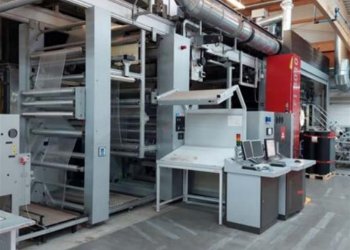

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1021
- Manufacturer
- COMEXI
- Modello
- FI 3010
- Year
- 2008
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1250
- Unwinder type
- Turret shaftless automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret shaftless automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded
- Videocamera
- AVT Print Vision Jupiter
- Corona treatment
- Softal
- Web guides
- BST in and out
- Vyscosity control
- Yes automatic
- Washing system
- Yes Synchroclean
- Inking system
- Ceramic anilox + Chambered doctor blade
- Anilox
- 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
- Print Sleeves
- 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
- Note
- Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification.
Machine Code | FL1021 |
Manufacturer | COMEXI |
Modello | FI 3010 |
Year | 2008 |
Number of colors | 10 |
Print possibilityes | 10+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1320 |
Print width (mm) | 1270 |
Min print repeat (mm) | 400 |
Max print repeat (mm) | 1250 |
Unwinder type | Turret shaftless automatic |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret shaftless automatic |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded |
Videocamera | AVT Print Vision Jupiter |
Corona treatment | Softal |
Web guides | BST in and out |
Vyscosity control | Yes automatic |
Washing system | Yes Synchroclean |
Inking system | Ceramic anilox + Chambered doctor blade |
Anilox | 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2 |
Print Sleeves | 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10 |
Note | Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification. |
