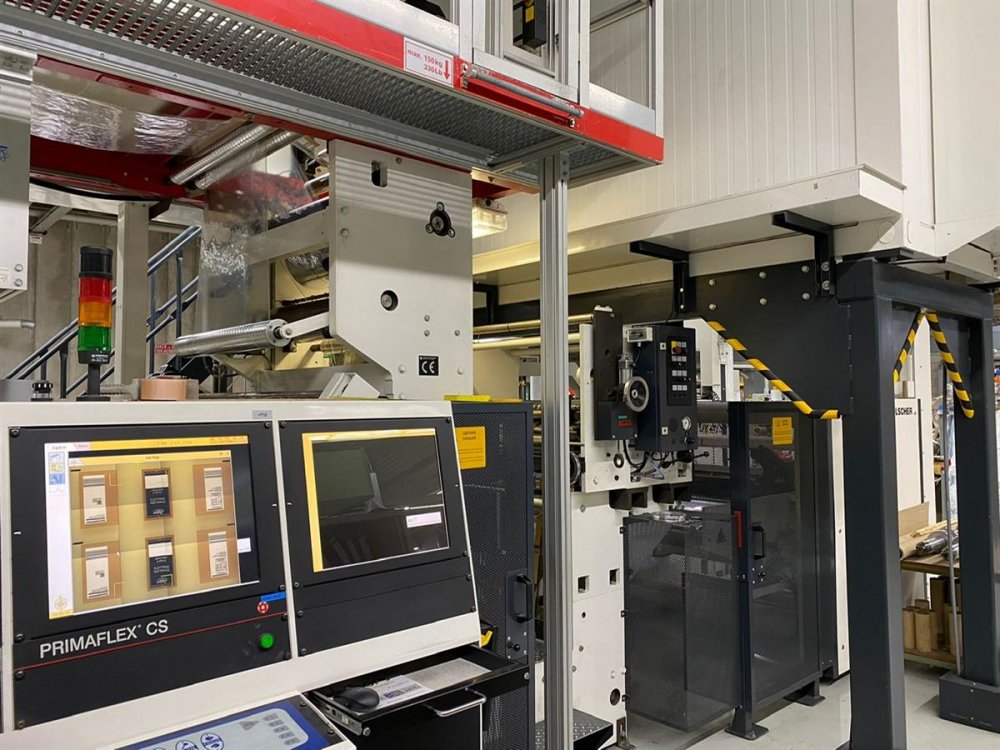

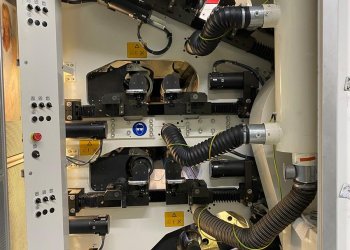

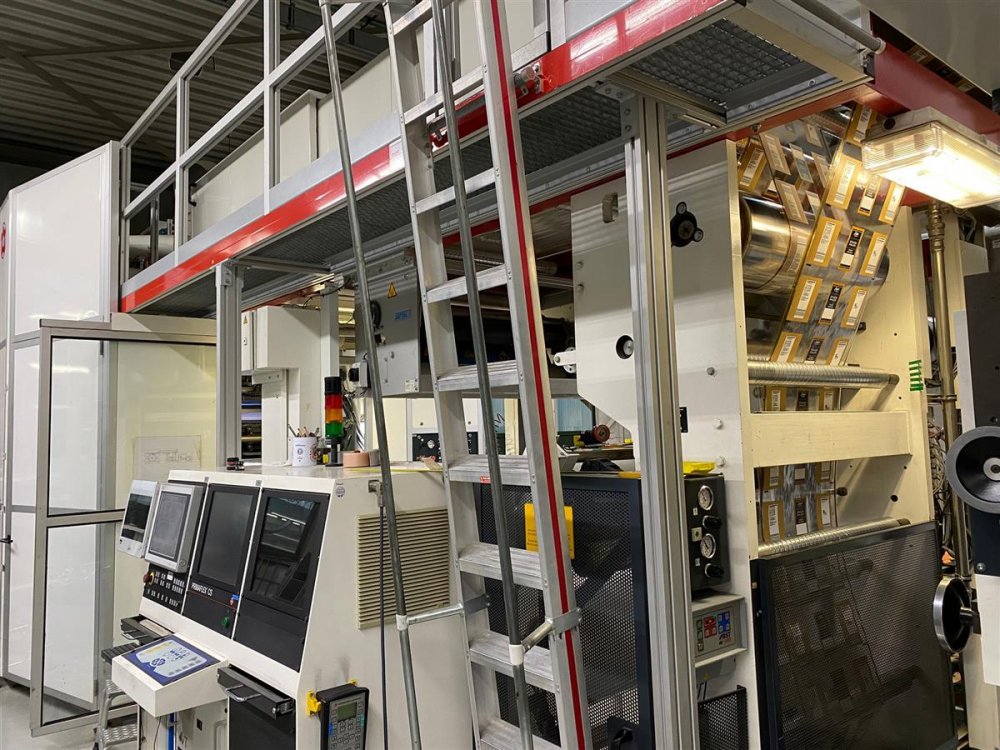

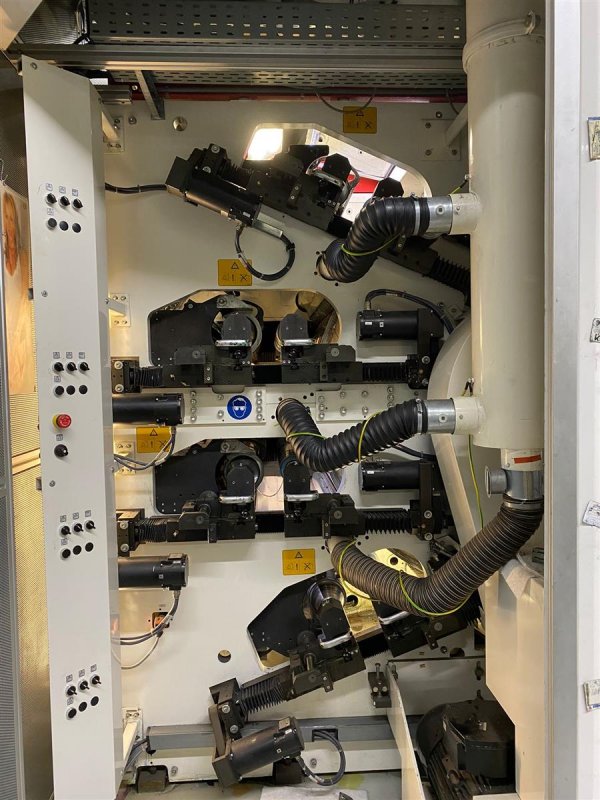

WINDMÖLLER & HÖLSCHER PRIMAFLEX CS flexo printing machine 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL979
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
PRIMAFLEX CS
Year
2004
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
850
Print width (mm)
835
Min print repeat (mm)
255
Max print repeat (mm)
800
Unwinder type
Turret Automatic Nonstop with roll lifting platform . Web tension 25-270 N
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic Nonstop with roll unloading platform . Web tension 25- 300 N . Razor cut slitting unit adjustable every 5 mm with driven banana .
Max reel diameter rewinder (mm)
800
Drying
2 zones 4 fans electric heaters . Automatic air recirculation system with ENPRO solvent concentration control
Videocamera
AVT Jupiter
Corona treatment
Driven Softal corona treater with antistatic bar
Web guides
1 BST EKR 1500, webguide with motorized positioning of the edge sensor after unwinder and 1 BST EKR 1500 at rewinder
Vyscosity control
yes
Inking system
Closed chamber doctor blades
Anilox
21 ceramic anilox sleeves as follows; 4x 460 L/cm-volume 5; 3x 340 L/cm-vol 5 ;1x 255 L/cm-vol. 8,1; 3x 200 L/cm-vol. 8 ;
Print Sleeves
compressible sleeves with repeat length: 290, 300, 320, 340, 350, 360, 380, 400, 420, 430, 440, 450, 465, 490, 500, 520 and 560 (each repeat 8 sleeves)
Print cylinders
Adapters for flag thin and classic: 300, 320, 350, 360, 380, 400, 440 and 500 (variable numbers for each repeat length).
Additional information
2 doctor chamber printing station 1-4 and 2 doctor chambers printing station 5-8 2 diaphragm pumps
Machine Code FL979
Manufacturer WINDMÖLLER & HÖLSCHER
Model PRIMAFLEX CS
Year 2004
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 850
Print width (mm) 835
Min print repeat (mm) 255
Max print repeat (mm) 800
Unwinder type Turret Automatic Nonstop with roll lifting platform . Web tension 25-270 N
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic Nonstop with roll unloading platform . Web tension 25- 300 N . Razor cut slitting unit adjustable every 5 mm with driven banana .
Max reel diameter rewinder (mm) 800
Drying 2 zones 4 fans electric heaters . Automatic air recirculation system with ENPRO solvent concentration control
Videocamera AVT Jupiter
Corona treatment Driven Softal corona treater with antistatic bar
Web guides 1 BST EKR 1500, webguide with motorized positioning of the edge sensor after unwinder and 1 BST EKR 1500 at rewinder
Vyscosity control yes
Inking system Closed chamber doctor blades
Anilox 21 ceramic anilox sleeves as follows; 4x 460 L/cm-volume 5; 3x 340 L/cm-vol 5 ;1x 255 L/cm-vol. 8,1; 3x 200 L/cm-vol. 8 ;
Print Sleeves compressible sleeves with repeat length: 290, 300, 320, 340, 350, 360, 380, 400, 420, 430, 440, 450, 465, 490, 500, 520 and 560 (each repeat 8 sleeves)
Print cylinders Adapters for flag thin and classic: 300, 320, 350, 360, 380, 400, 440 and 500 (variable numbers for each repeat length).
Additional information 2 doctor chamber printing station 1-4 and 2 doctor chambers printing station 5-8 2 diaphragm pumps
