Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1181
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Novoflex
- Year
- 1999
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil
- Videocamera
- Yes
- Web guides
- BST
- Vyscosity control
- new viscosity meter, electric ink circulation system
- Anilox
- ± 35 pcs
- Print Sleeves
- ± 300 pcs
- Note
- Materials : LDPE, PP, PA: 20–150 µm, HDPE, OPP: 12–100 µm, Laminates: approx. 120–150 µm, Paper: 30–120 g/m², ALU (soft, hard): from 10 µm Inline trimming / slitting
| Machine Code | FL1181 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Novoflex |
| Year | 1999 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil |
| Videocamera | Yes |
| Web guides | BST |
| Vyscosity control | new viscosity meter, electric ink circulation system |
| Anilox | ± 35 pcs |
| Print Sleeves | ± 300 pcs |
| Note | Materials : LDPE, PP, PA: 20–150 µm, HDPE, OPP: 12–100 µm, Laminates: approx. 120–150 µm, Paper: 30–120 g/m², ALU (soft, hard): from 10 µm Inline trimming / slitting |
CARINT Discovery
-
Machine Code: FL1133
-
Year: 1999
-
Web width (mm): 1500
PRINTPLAS PKF 1200-6
-
Machine Code: FL1171
-
Year: 2018
-
Web width (mm): 1250

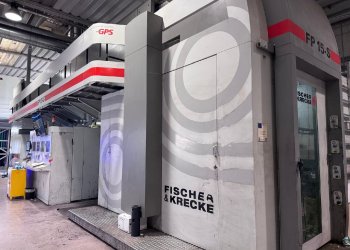

BOBST FISCHER & KRECKE FK 15 S
-
