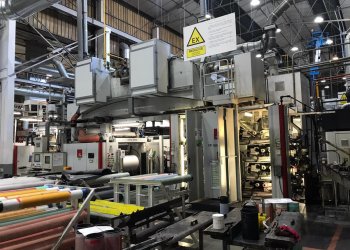

COMEXI FP1808 GL flexographic printing machine 8 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL923
Manufacturer COMEXI
Model FP1808 GL
Year 2003
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1070
Print width (mm) 1020
Min print repeat (mm) 350
Max print repeat (mm) 700
Unwinder type Turret automatic non stop with roll lifting system
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic non stop with roll lifting system
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
Videocamera Yes ELTROMAT Meshcon
Corona treatment yes SHERMAN
Web guides Yes in and out OPG system
Vyscosity control Yes Inelme SICCT
Washing system Automatic wash up system
Inking system Closed chamber doctor blades and ceramic anilox sleeves
Anilox 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
Print Sleeves 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
