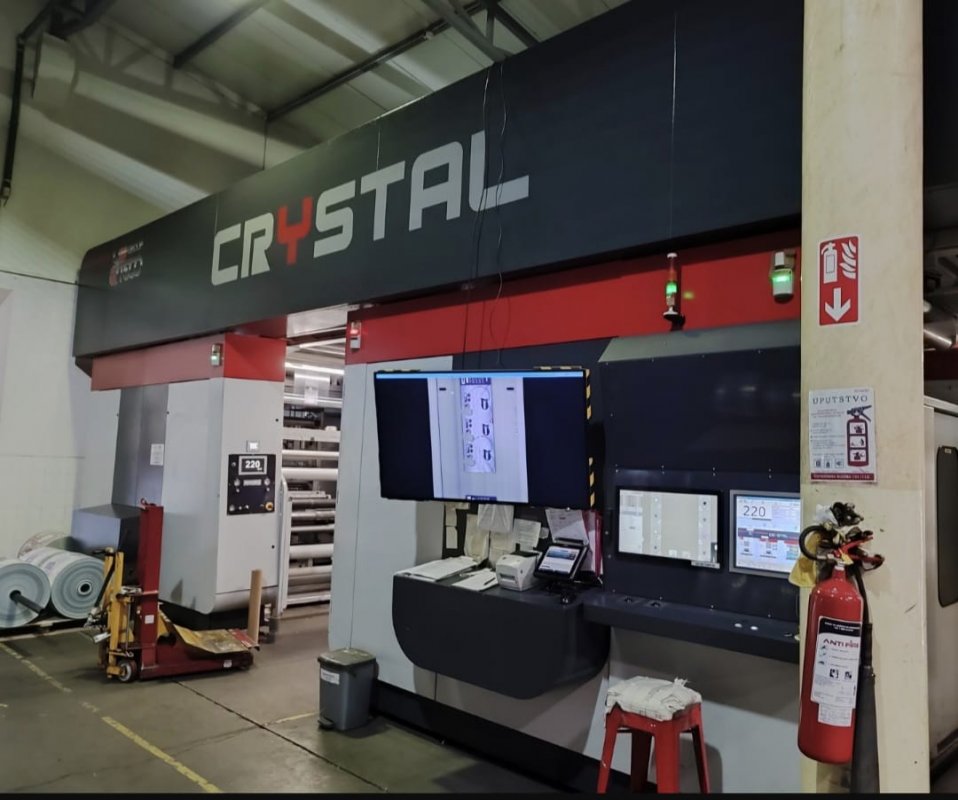

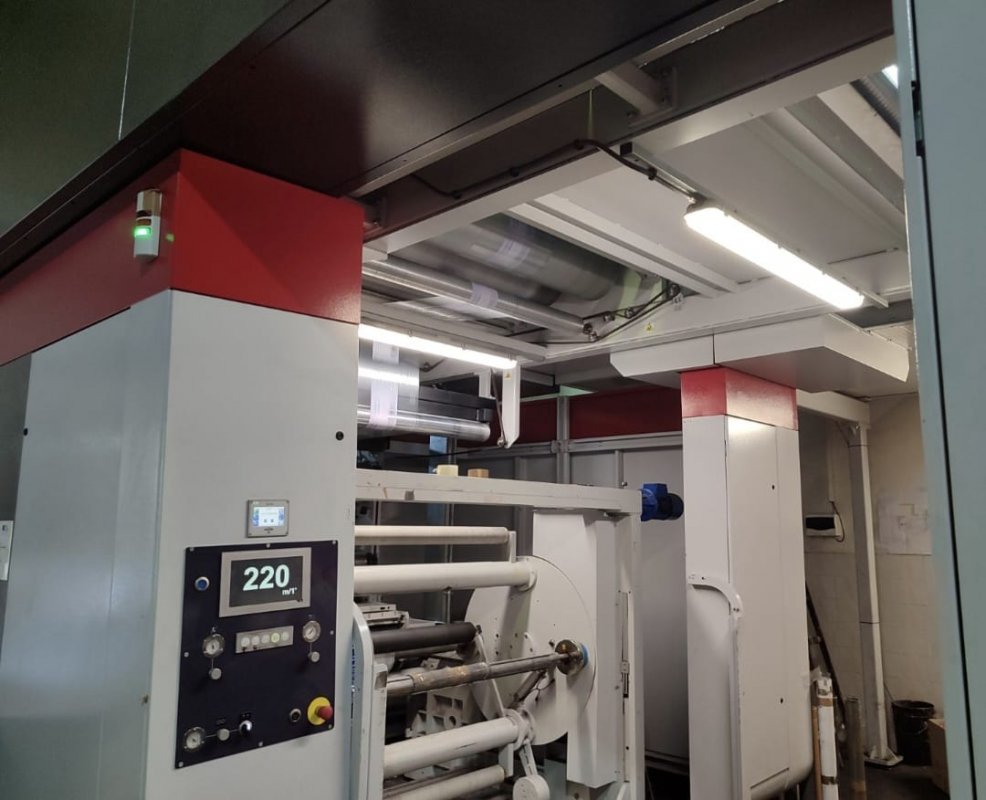

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1175
- Manufacturer
- UTECO
- Modello
- CRYSTAL 808
- Year
- 2019
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control
- Videocamera
- Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control
- Corona treatment
- Yes Ferrarini Benelli, driven
- Web guides
- yes in and out
- Vyscosity control
- yes automatic Gama G 26
- Washing system
- Automatic wash up system
- Inking system
- Closed chamber doctor blades
- Print Sleeves
- 224 printing sleevs 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780
- Note
- Machine end 2019 installed 2020 Reprint system comlete with register control Automatic printing pressur setting Kiss and Go Automatic printing pressure adj .with speed P2P
| Machine Code | FL1175 |
| Manufacturer | UTECO |
| Modello | CRYSTAL 808 |
| Year | 2019 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control |
| Videocamera | Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control |
| Corona treatment | Yes Ferrarini Benelli, driven |
| Web guides | yes in and out |
| Vyscosity control | yes automatic Gama G 26 |
| Washing system | Automatic wash up system |
| Inking system | Closed chamber doctor blades |
| Print Sleeves | 224 printing sleevs 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780 |
| Note | Machine end 2019 installed 2020 Reprint system comlete with register control Automatic printing pressur setting Kiss and Go Automatic printing pressure adj .with speed P2P |
BIELLONI AXIOMA
-
Machine Code: FL1162
-
Year: 2015
-
Web width (mm): 1650
COMEXI FP 2210 GL
-
Machine Code: FL1159
-
Year: 2002
-
Web width (mm): 1270

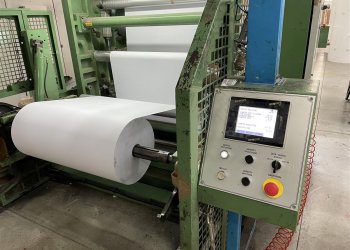

UTECO AMETHYST
-
