COMEXI FW2110 flexo printing machine 10 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
Machine Code
FL1095
Manufacturer
COMEXI
Modello
FW2110
Year
2008
Number of colors
10
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
920
Print width (mm)
870
Min print repeat (mm)
350
Max print repeat (mm)
800
Unwinder type
Single Shaftless,core size : 76.2mm
Max reel diameter unwinder (mm)
1000
Rewinder type
Single Shaftless, core size : 76.2mm
Max reel diameter rewinder (mm)
1000
Drying

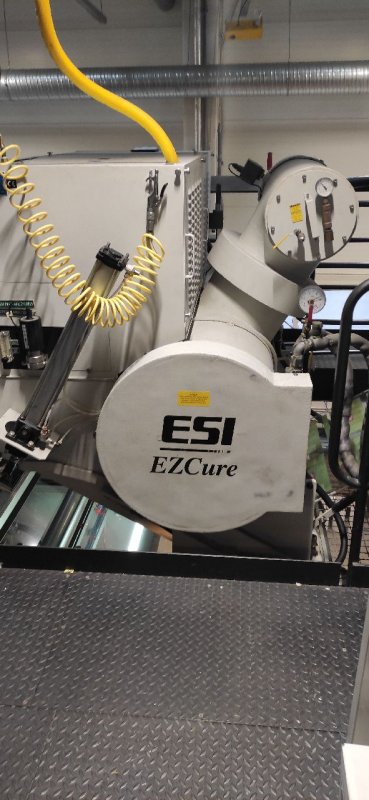

ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm
Videocamera
AVT PRINT VISION JUPITER
Corona treatment
SOFTAL corona treating one 5 Kw generator
Web guides
Yes, before printing and before rewinding
Note
Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator
Machine Code FL1095
Manufacturer COMEXI
Modello FW2110
Year 2008
Number of colors 10
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 920
Print width (mm) 870
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type Single Shaftless,core size : 76.2mm
Max reel diameter unwinder (mm) 1000
Rewinder type Single Shaftless, core size : 76.2mm
Max reel diameter rewinder (mm) 1000
Drying ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm
Videocamera AVT PRINT VISION JUPITER
Corona treatment SOFTAL corona treating one 5 Kw generator
Web guides Yes, before printing and before rewinding
Note Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator
