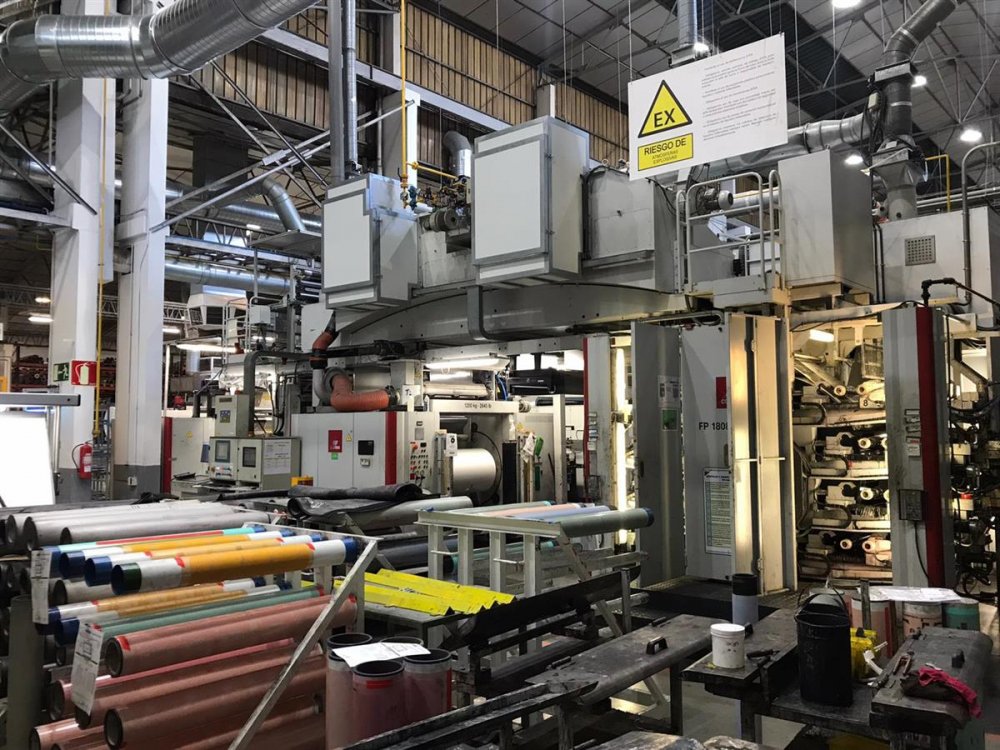

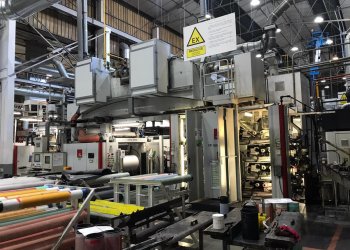

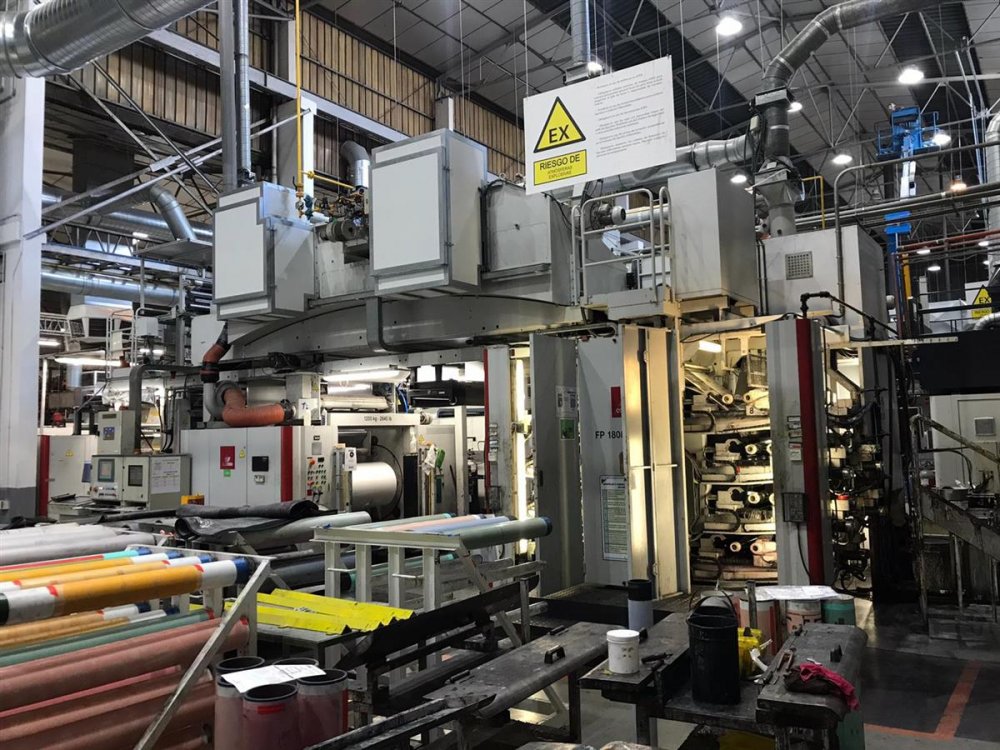

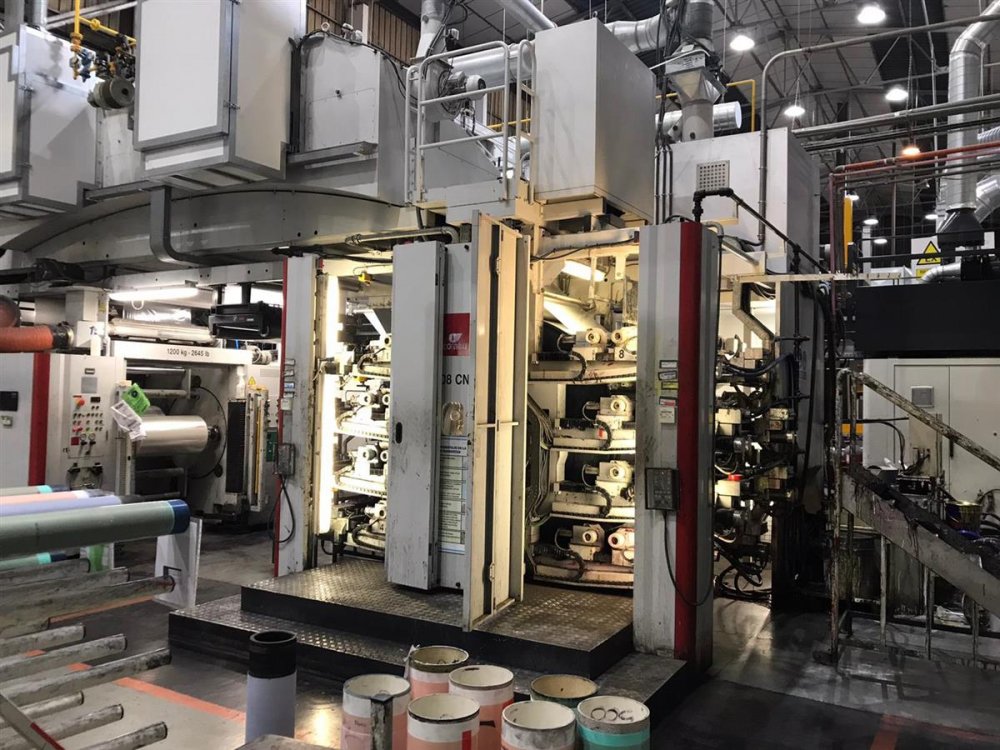

COMEXI FP1808 GL Flexo printer 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL923
Manufacturer
COMEXI
Model
FP1808 GL
Year
2003
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes

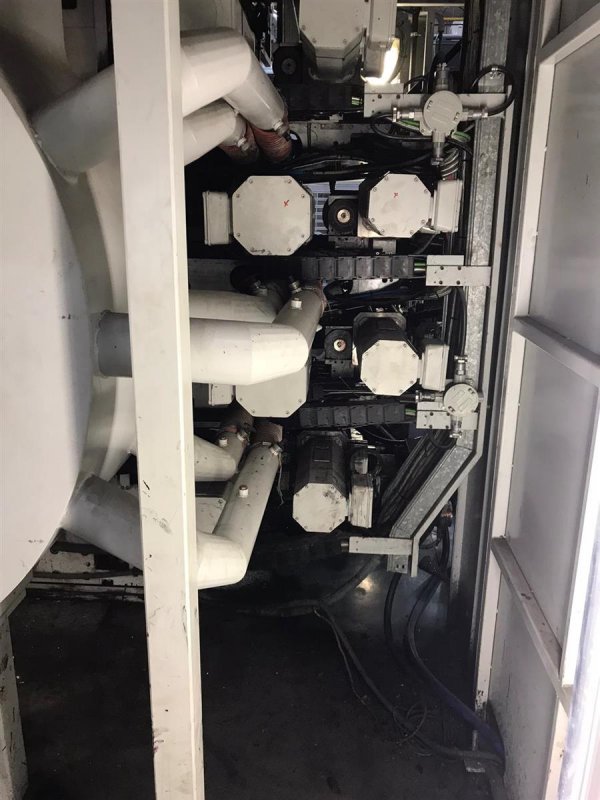

4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1070
Print width (mm)
1020
Min print repeat (mm)
350
Max print repeat (mm)
700
Unwinder type
Turret automatic non stop with roll lifting system
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic non stop with roll lifting system
Max reel diameter rewinder (mm)
1000
Drying

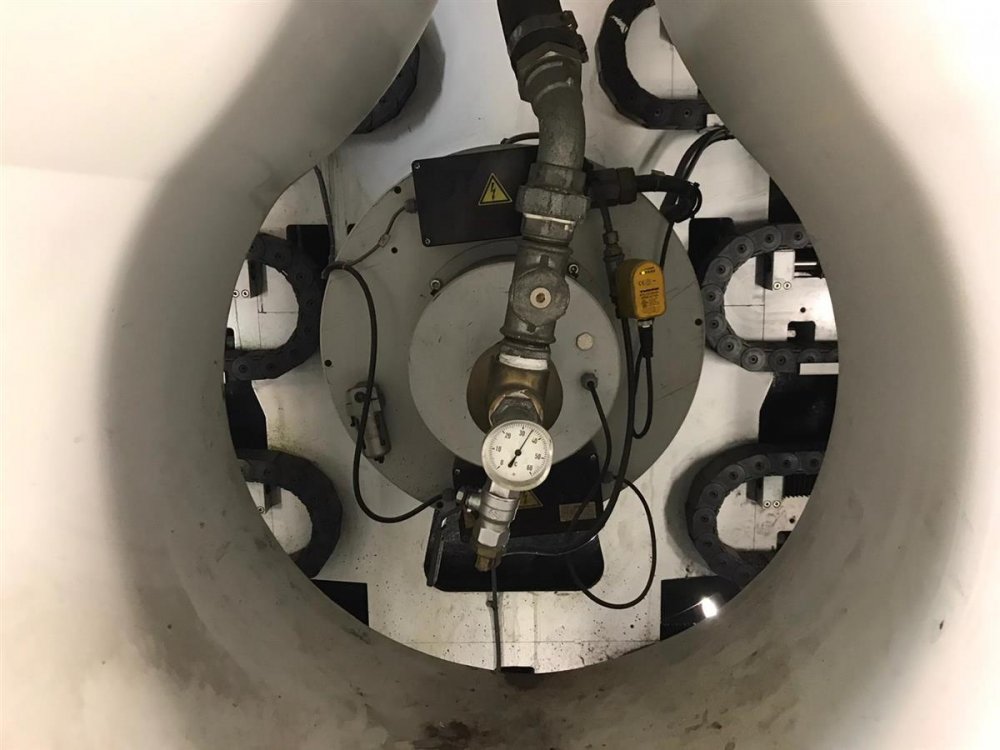

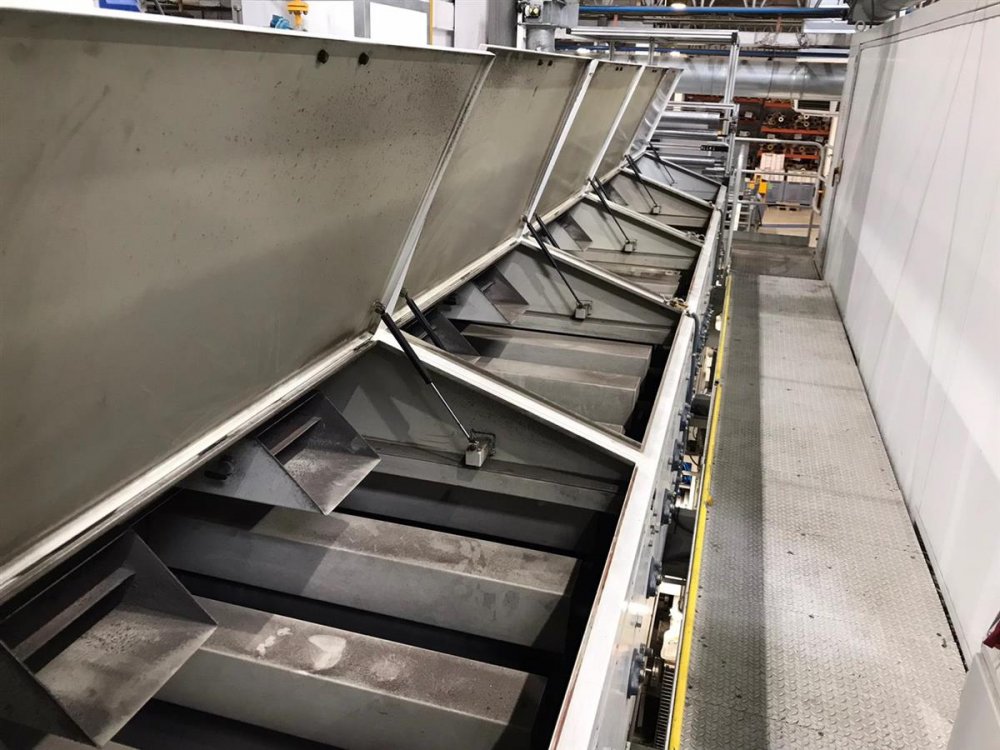

2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
Videocamera
Yes ELTROMAT Meshcon
Corona treatment
yes SHERMAN

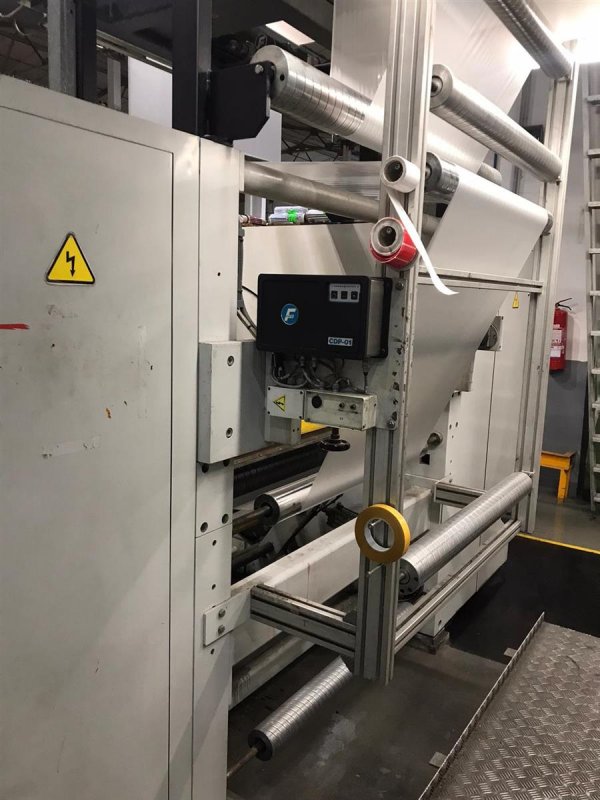

Web guides
Yes in and out OPG system

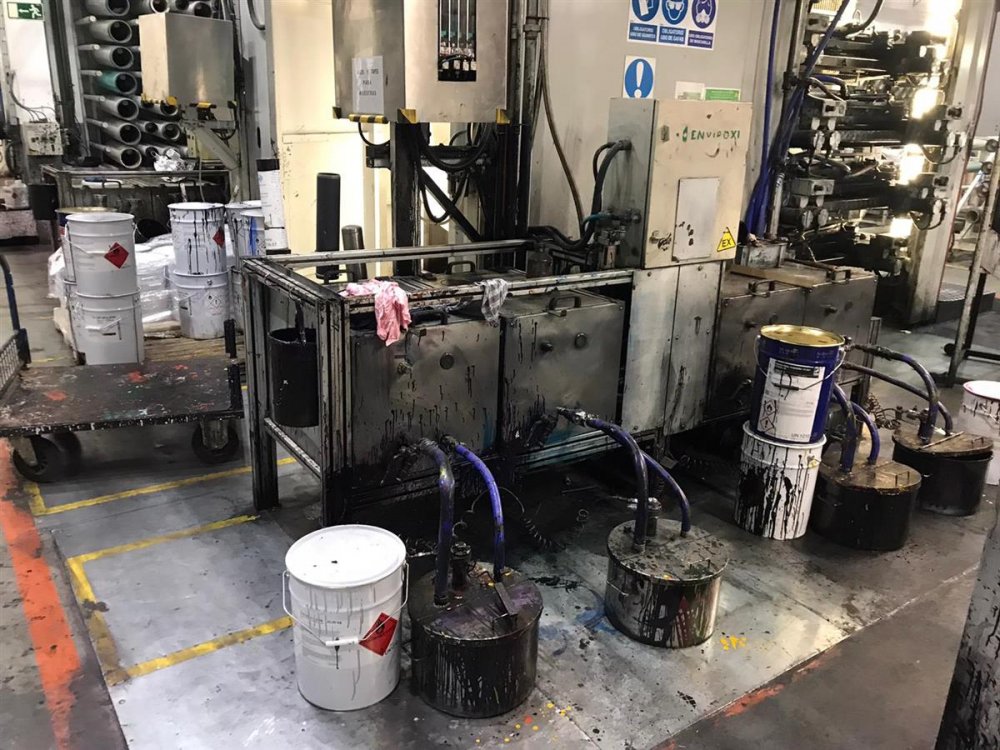

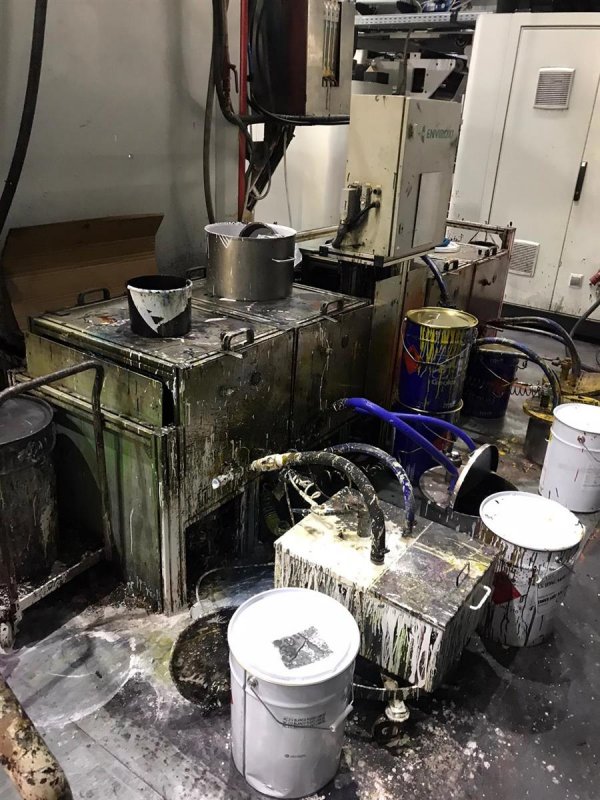

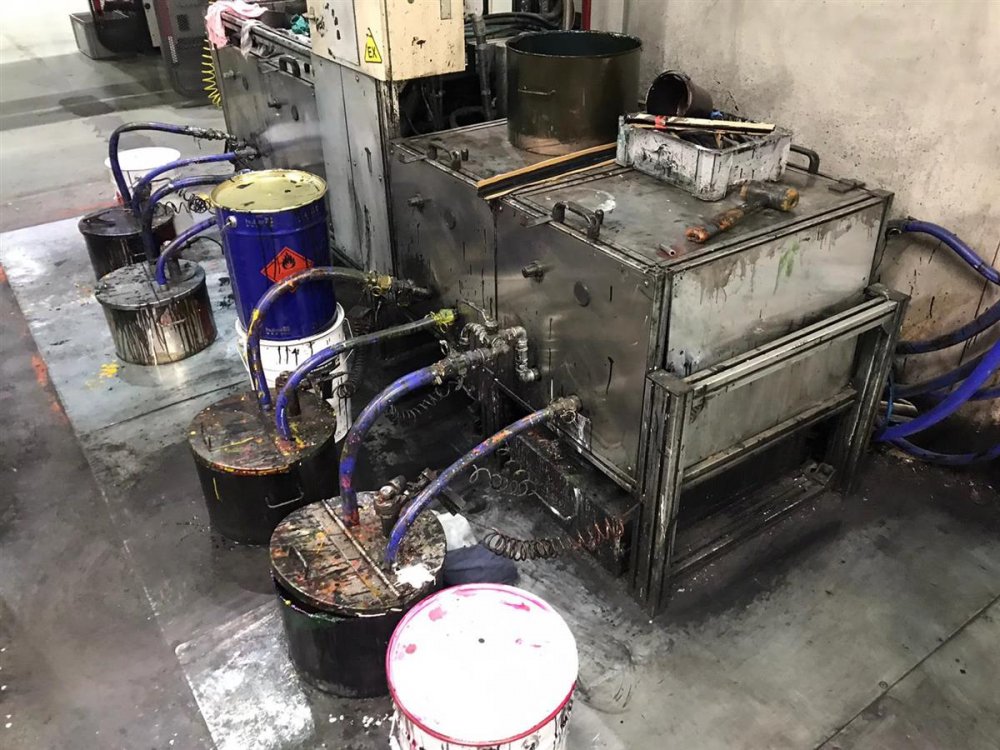

Vyscosity control
Yes Inelme SICCT
Washing system
Automatic wash up system

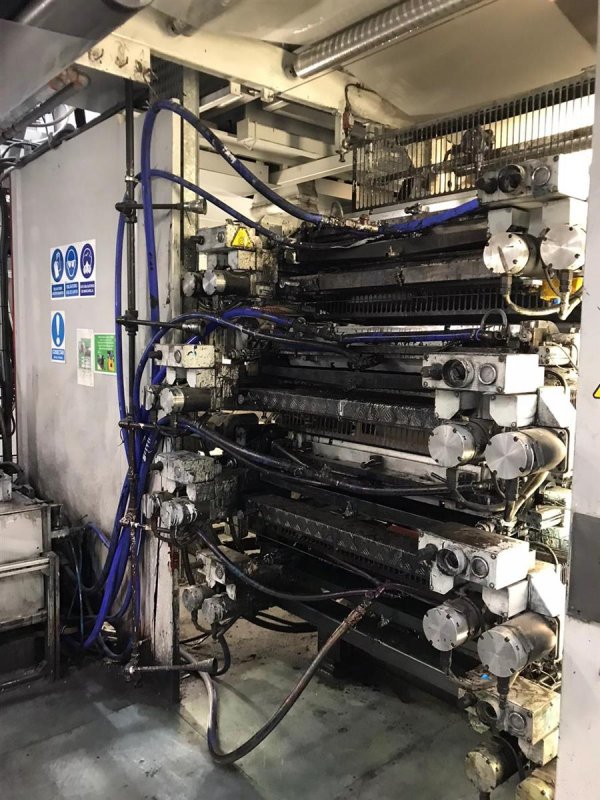

Inking system
Closed chamber doctor blades and ceramic anilox sleeves
Anilox
26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
Print Sleeves
40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
Machine Code FL923
Manufacturer COMEXI
Model FP1808 GL
Year 2003
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1070
Print width (mm) 1020
Min print repeat (mm) 350
Max print repeat (mm) 700
Unwinder type Turret automatic non stop with roll lifting system
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic non stop with roll lifting system
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
Videocamera Yes ELTROMAT Meshcon
Corona treatment yes SHERMAN
Web guides Yes in and out OPG system
Vyscosity control Yes Inelme SICCT
Washing system Automatic wash up system
Inking system Closed chamber doctor blades and ceramic anilox sleeves
Anilox 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
Print Sleeves 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
** SOLD **
