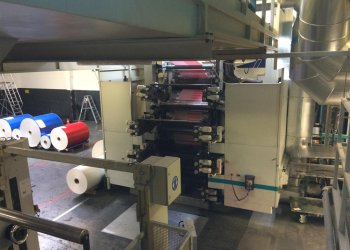

FISCHER & KRECKE 34 DF Flexo printer 9 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

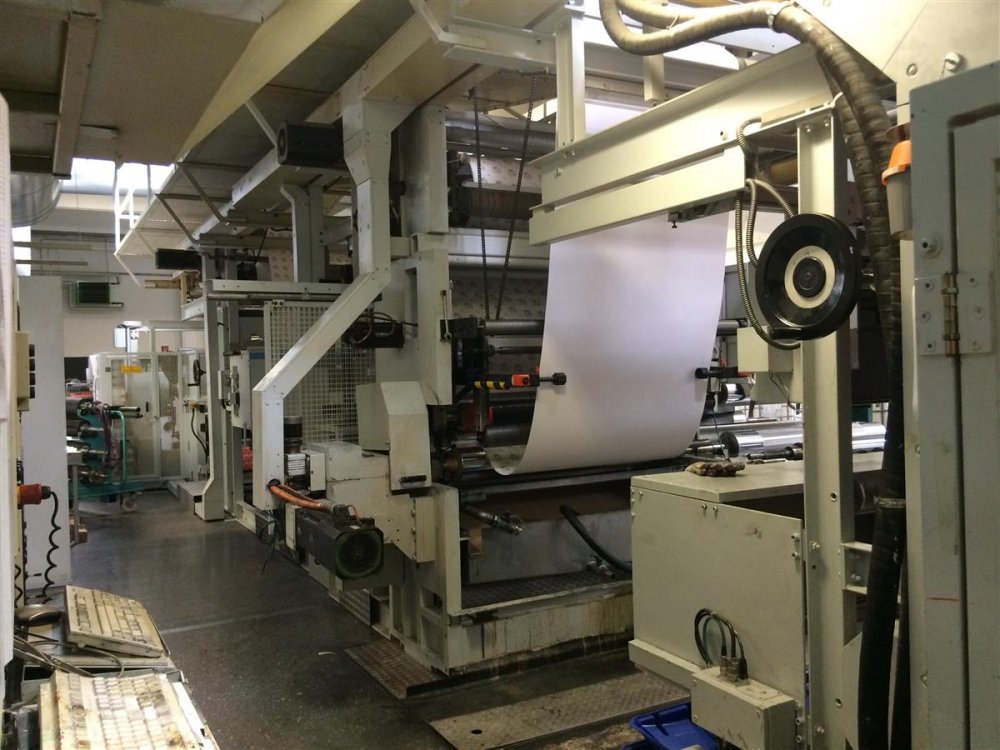

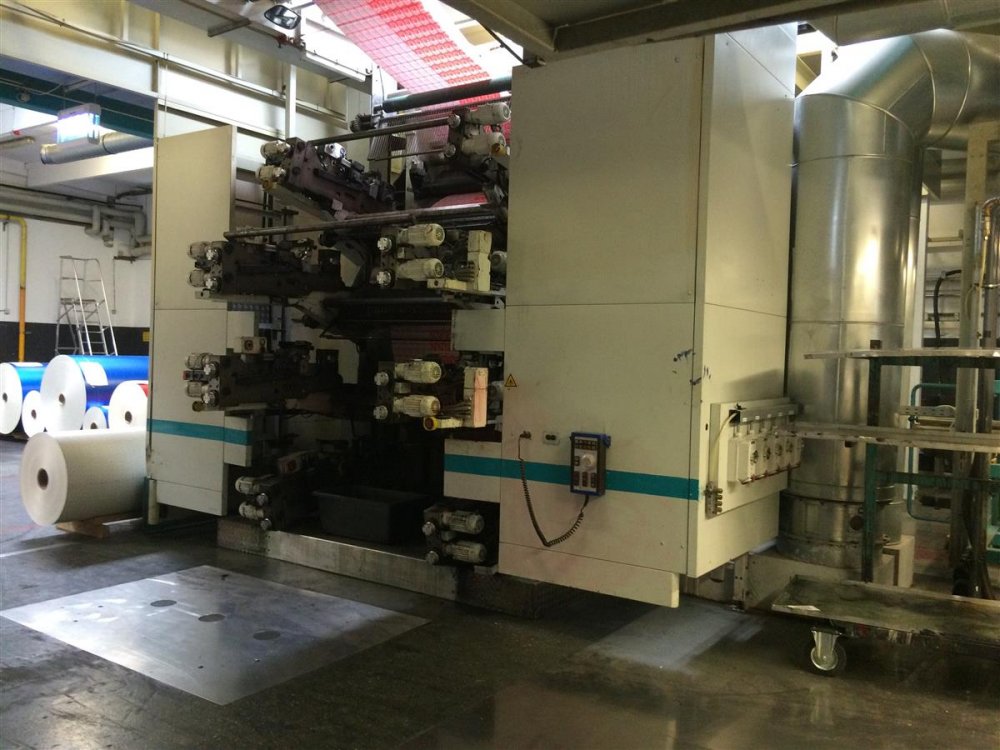

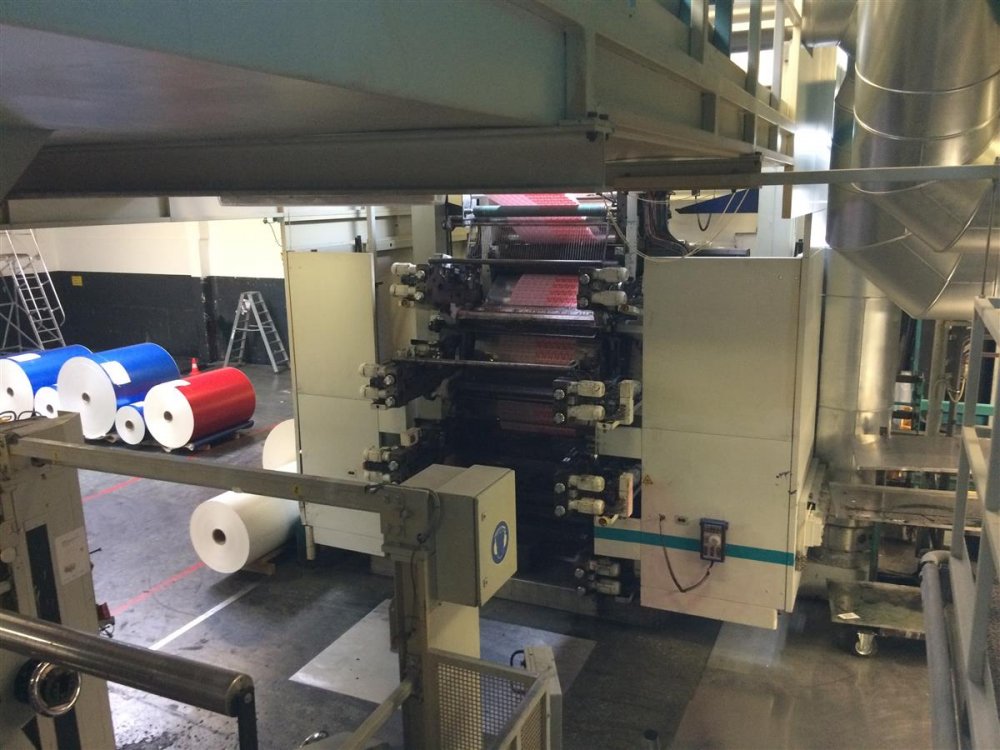

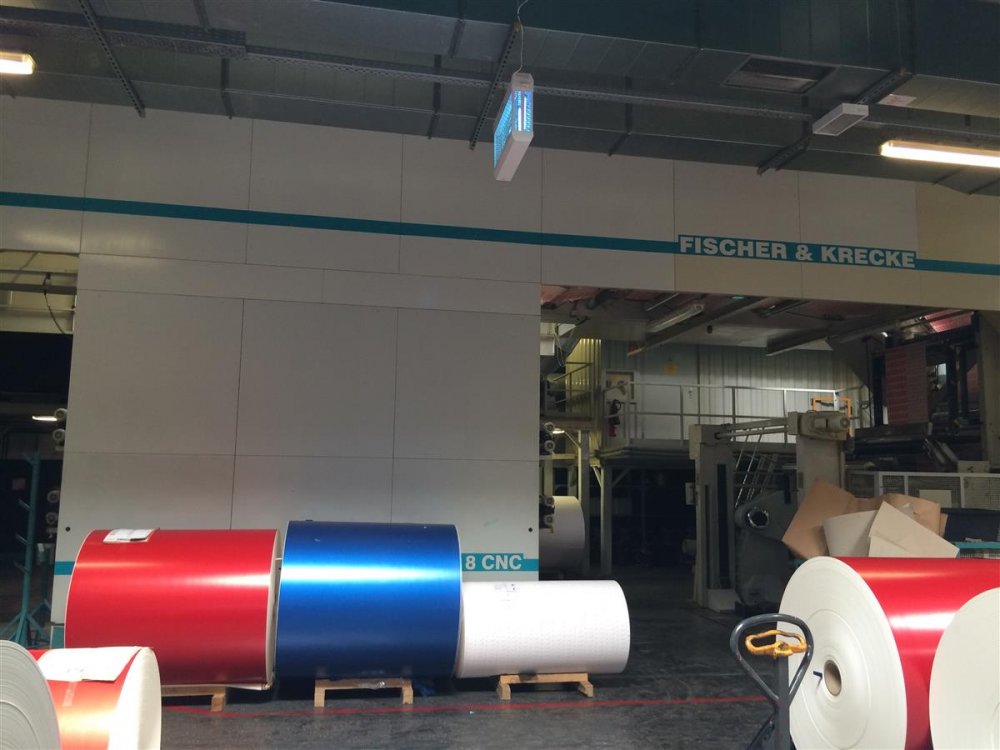

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL643
Manufacturer: FISCHER & KRECKE
Modello: 34 DF
Year: 1999
Number of colors: 9
Print possibilityes: 8 colors flexo + 1 rotogravure. 9 col printing or 8 col printing and 1 for cold/hot seal or laquers.
Gearless: No
Fast sleeve change: No
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1280
Print width (mm): 1250
Min print repeat (mm): 380
Max print repeat (mm): 1030
Unwinder type: Turret
Max reel diameter unwinder (mm): 1250
Rewinder type: Turret
Max reel diameter rewinder (mm): 1000

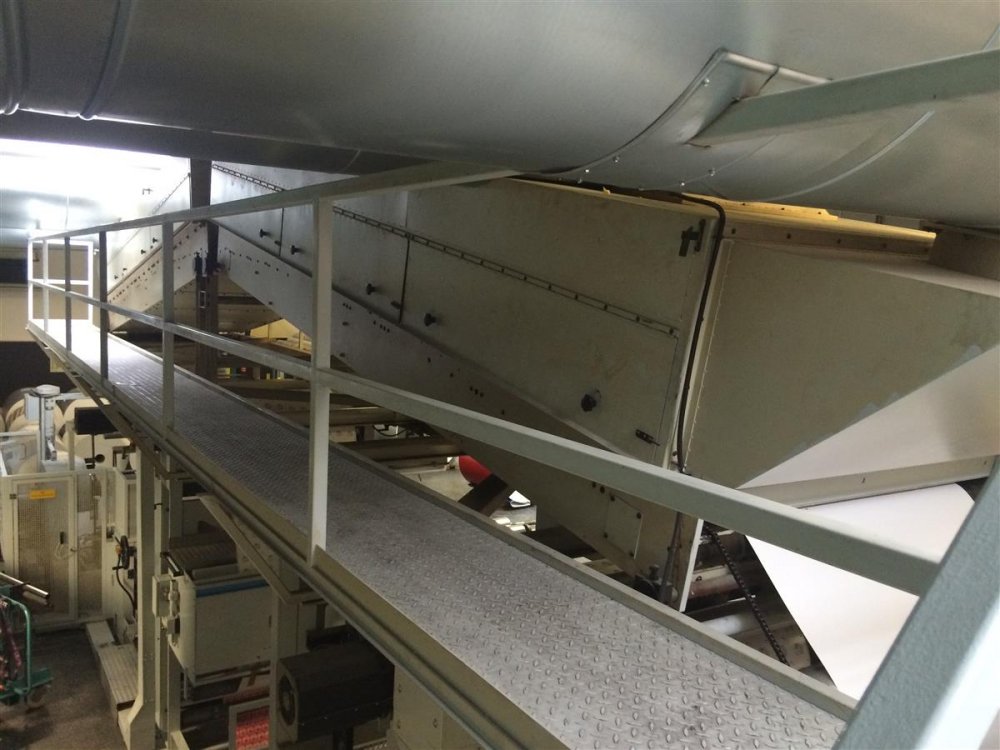

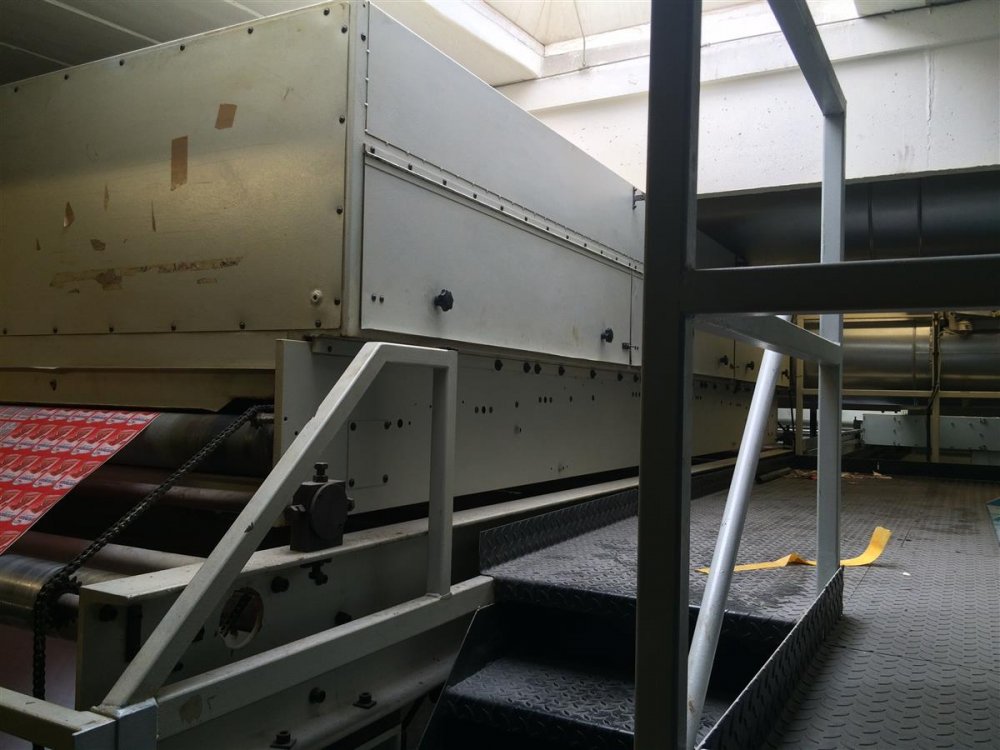

Drying: 4 Gas burners 4 fans. Flexo unit drying: 2 zones one for inter- color flexo on CI and second is a 5m long drying tunnel. Rotogravure drying: 2 drying hood 6m length eachwith independent ventilations and heaters. tot 12 m.
Videocamera: 2 x Eltromat High resolution camera. for fron side and back side
Web guides: BST web control
Inking system: Chamber doctor blades. 7 chamber in carbon fibers and 5 in alluminium. Ink tanks.Electric Ink pumps. motor under inverter
Anilox: 16 anilox roller: 2x 400 l/cm -60°-5,2 cm³/m² ; 3x 380 i/cm -60°-3,8/4,9cm³/m² ; 6x 340 l/cm -60°-5,5cm³/m² ; 6x 300 l/cm –60°-4,3-7,7cm³/m² ; 2x 255 l/cm –60°-6,0 -9 cm³/m² ; 2x 240 l/cm –60°-7,9 -9,3 cm³/m² ; 4x 220 l/cm –60°-8,2 cm³/m² ; 6x 180 l/cm –60°-7,2 cm³/m² ; 2x 160 l/cm –60°-10 cm³/m² ; 2x 150 l/cm –60°-9,4cm³/m² ; 2x 140 l/cm –60°-7,3 cm³/m² ; 2x 120 l/cm –60°-7,7cm³/m²
Print Sleeves: No. Several gears and air mandrels available
Print cylinders: 127,388x 8:420 ;136,942x2: 450 ; 143,312x8:470 ; 152,866x8:500 ; 162,420x16:530 ; 168,789x16:550 ; 175,159x8:570 ; 191,082x8:620 ; 210,191x8:680 ; 219,745x8: 710 ; 229.229x8:740 ; 245,215x8:790
Note: •V= max.365m/min •temperature control unit and cold water composition •Gravure unit for front or reverse side (turn-cross in the ground) UNWINDING: •possibility to unwind front or reverse side to be preferred printing side •winding shafts 2x 76mm and 2x 150mm •automatic reel change REWINDING: •Possibility to rewind front or reverse side to be preferred reel outside •winding shafts 2 x 76mm und 2 x 150mm DIMENSIONS: •Width: 11m •Length: 30m •Height: 6m •Diameter central cylinder 2,26 mm = 7,1 m circumference
