** SOLD **
Pouch machines produce vacuum bags from reels of a film or laminate. These machines may have different constructions depending on the type of pouch they produce.
Ask more informations
about a similar one

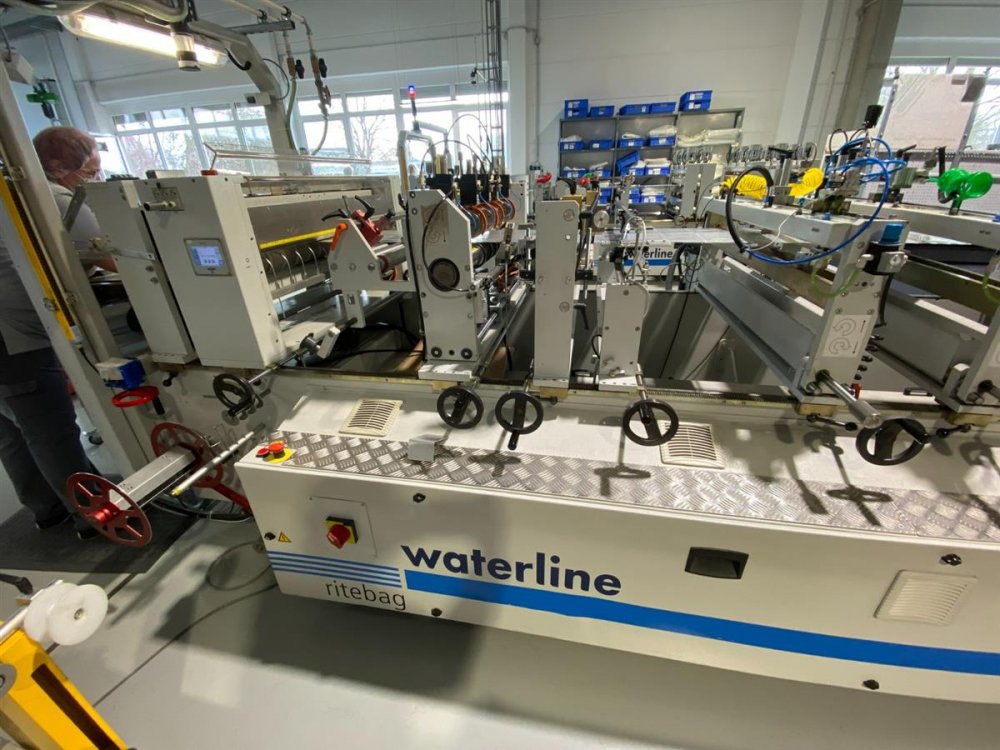

- Machine Code
- PO55
- Manufacturer
- WATERLINE
- Modello
- Ritebag 900
- Year
- 2008
- Type of sealing/bags
- 3 side weld
- Bag length
- 50-600mm
- Bag width
- 50-900mm
- Unwinder

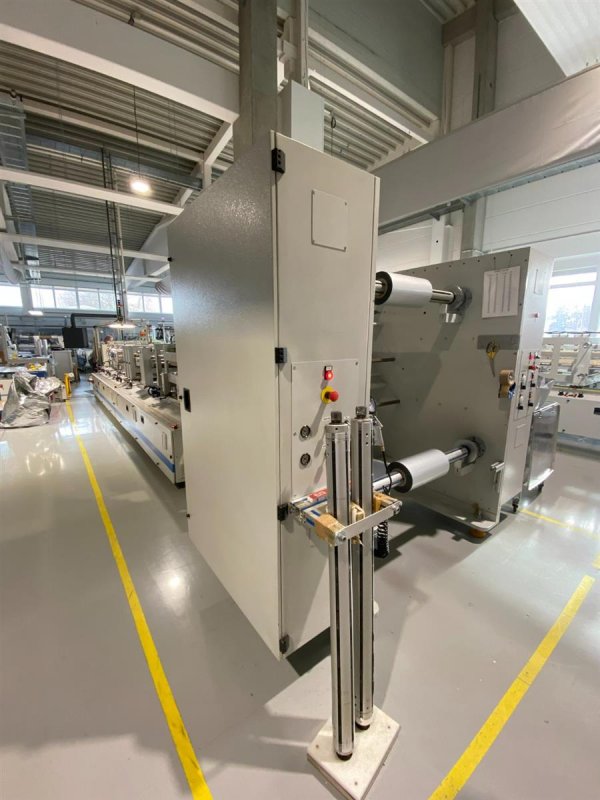

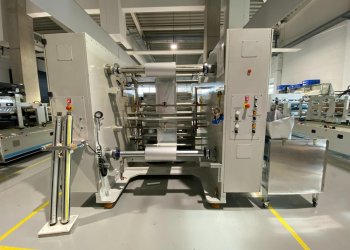

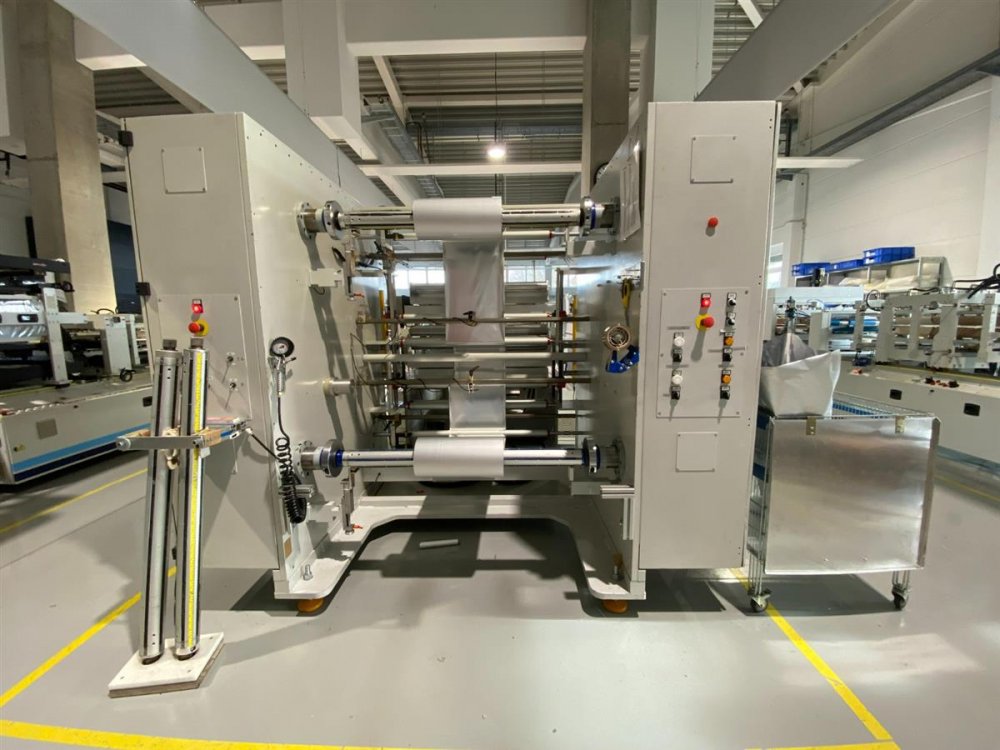

- 2 Unwinders, reel width 1200mm, reel diameter 800mm,
- Cycle / min
- 150
- Additional information type of bags
- 3 side seal bags from 2 webs
- Note

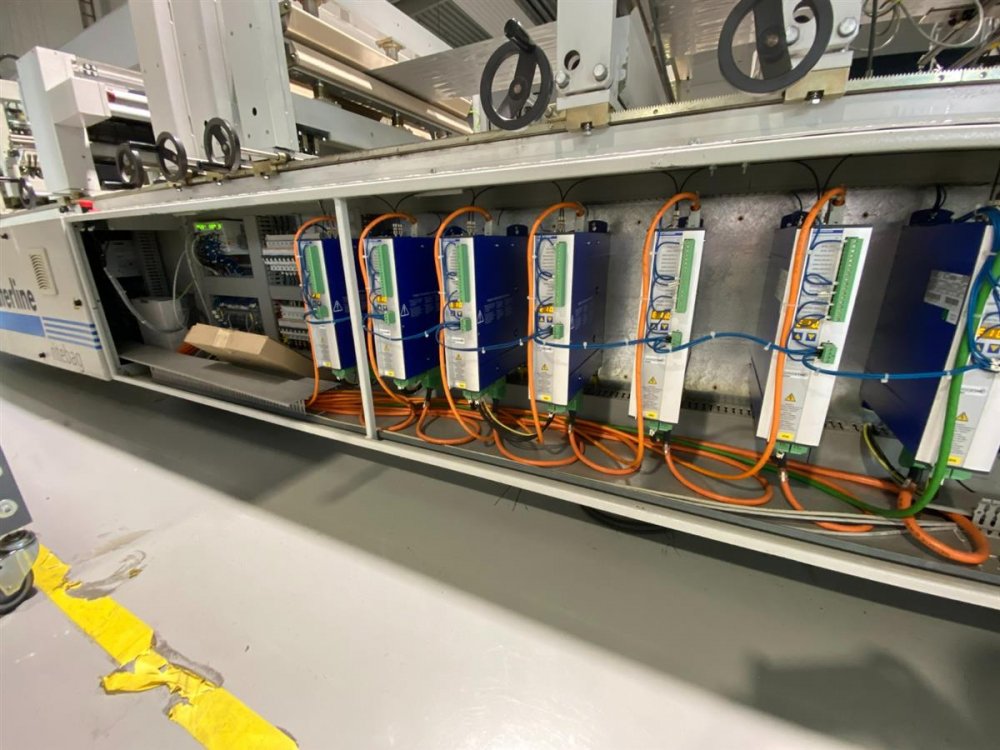

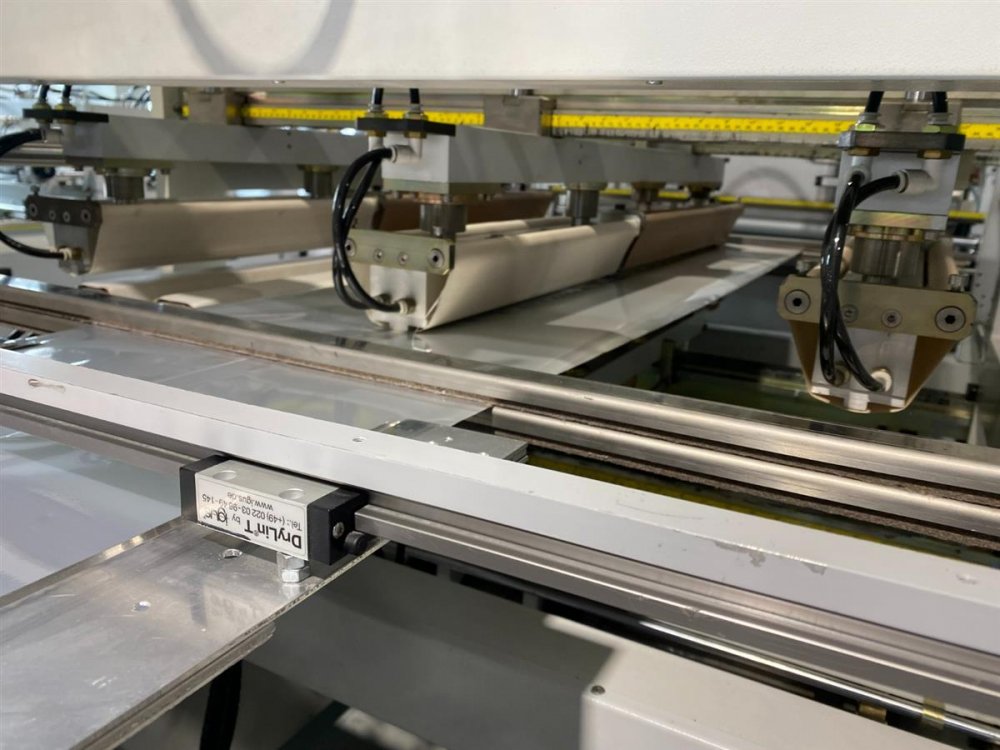

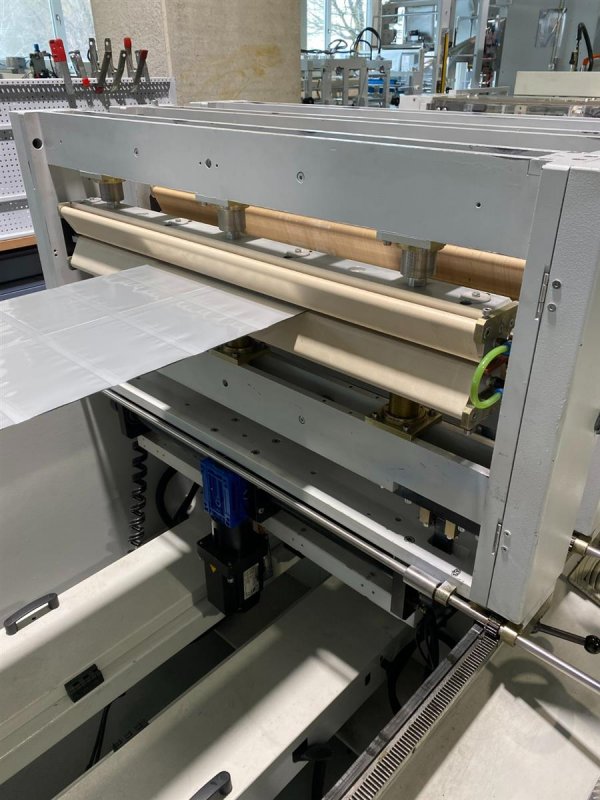

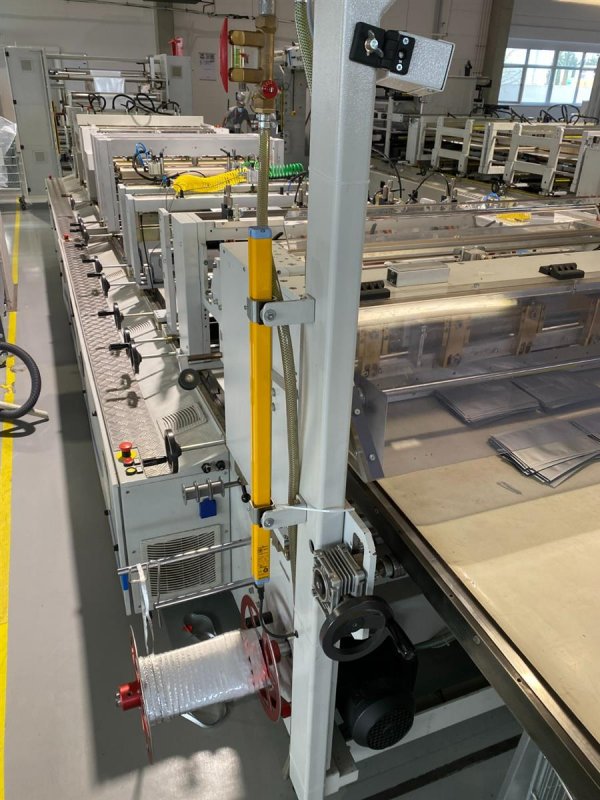

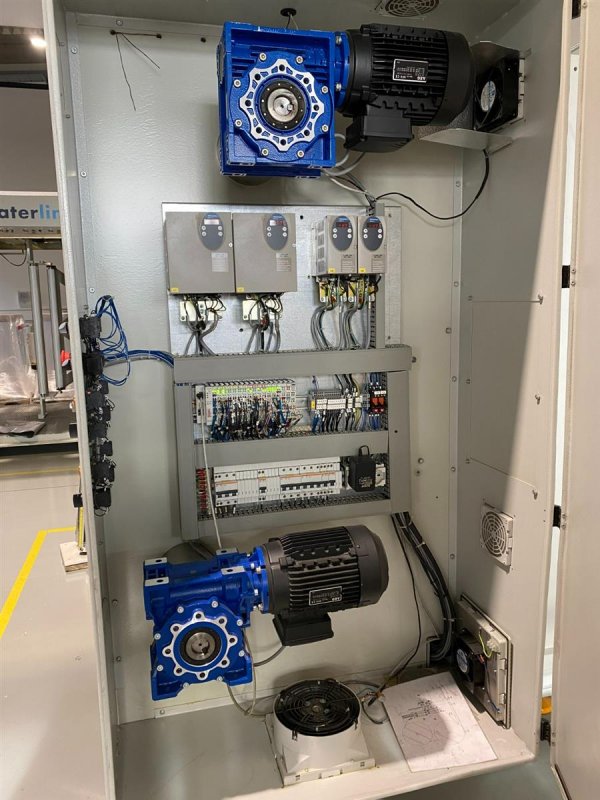

- Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven
| Machine Code | PO55 |
| Manufacturer | WATERLINE |
| Modello | Ritebag 900 |
| Year | 2008 |
| Type of sealing/bags | 3 side weld |
| Bag length | 50-600mm |
| Bag width | 50-900mm |
| Unwinder | 2 Unwinders, reel width 1200mm, reel diameter 800mm, |
| Cycle / min | 150 |
| Additional information type of bags | 3 side seal bags from 2 webs |
| Note | Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven |
