- Código Máquina
- PO55
- Constructor

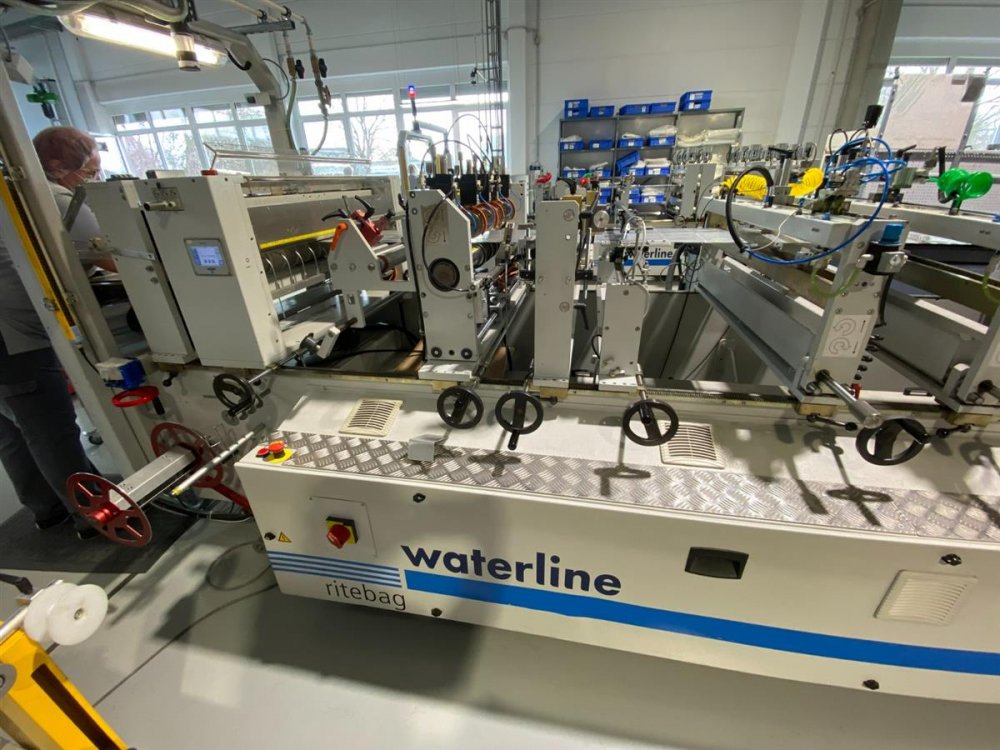

- WATERLINE
- Modello

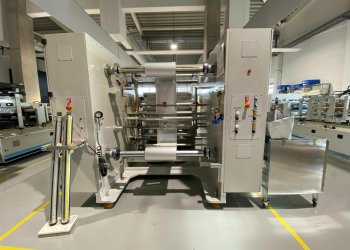

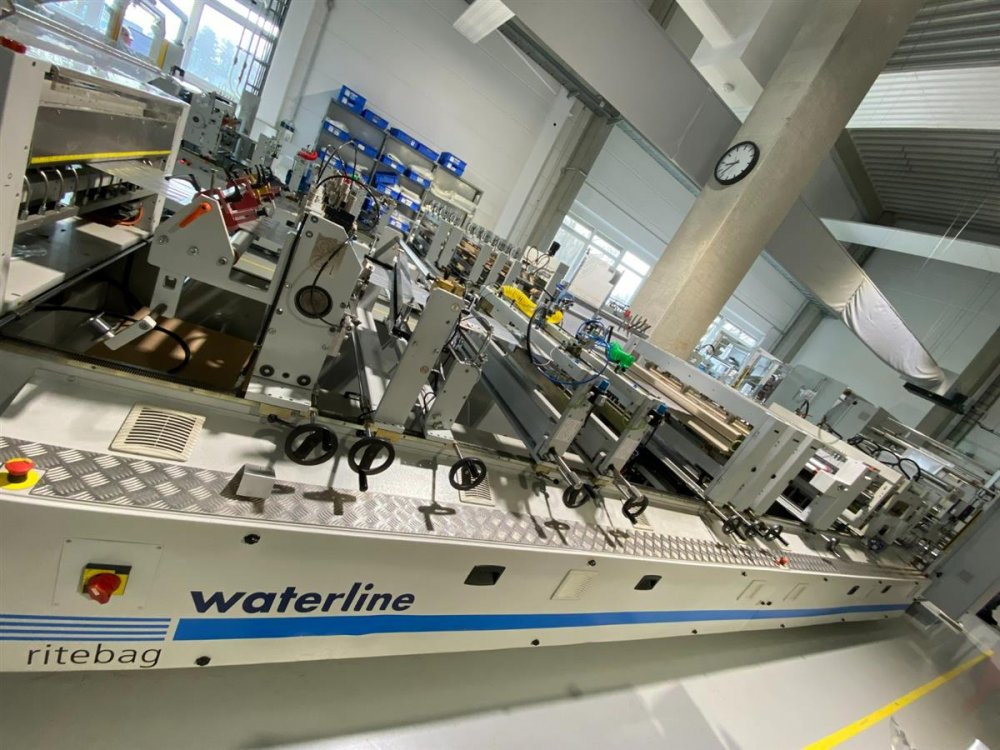

- Ritebag 900
- Año
- 2008
- Type of sealing/bags
- 3 side weld
- Bag length
- 50-600mm
- Bag width
- 50-900mm
- Unwinder

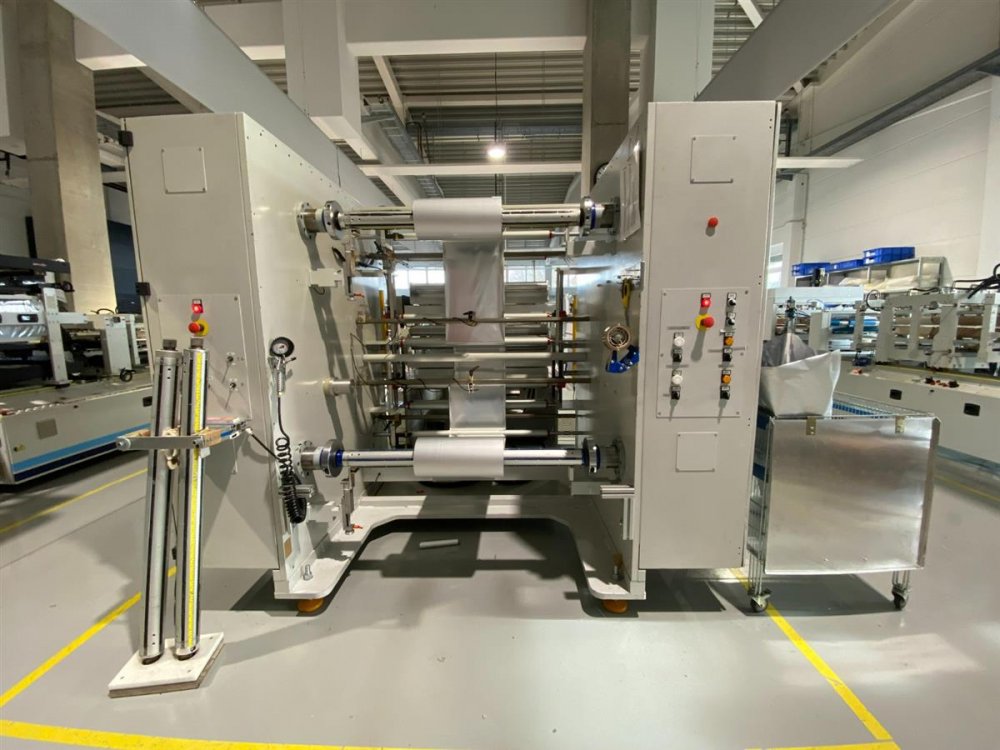

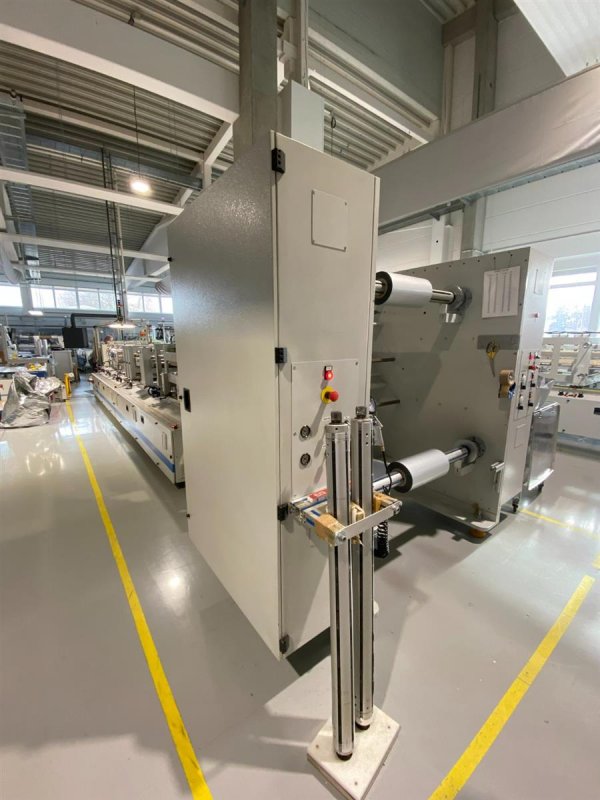

- 2 Unwinders, reel width 1200mm, reel diameter 800mm,
- Cycle / min
- 150
- Additional information type of bags
- 3 side seal bags from 2 webs
- Note

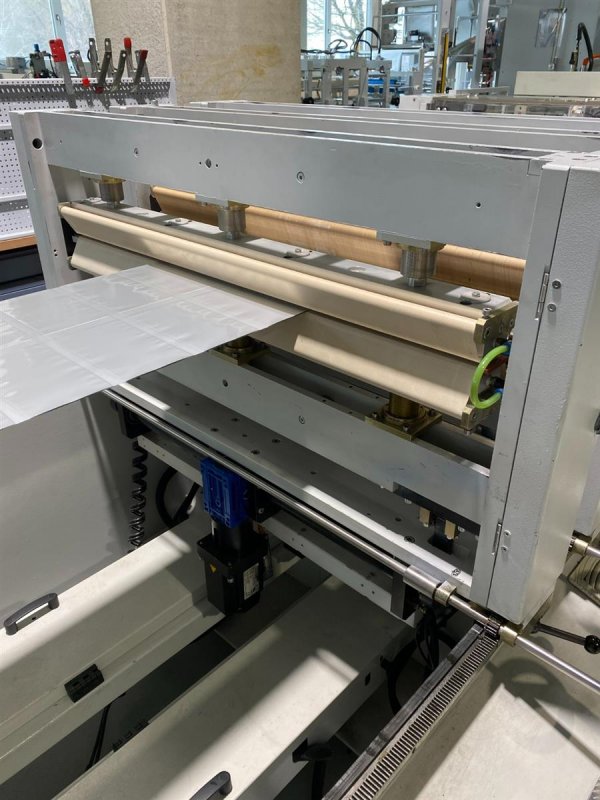

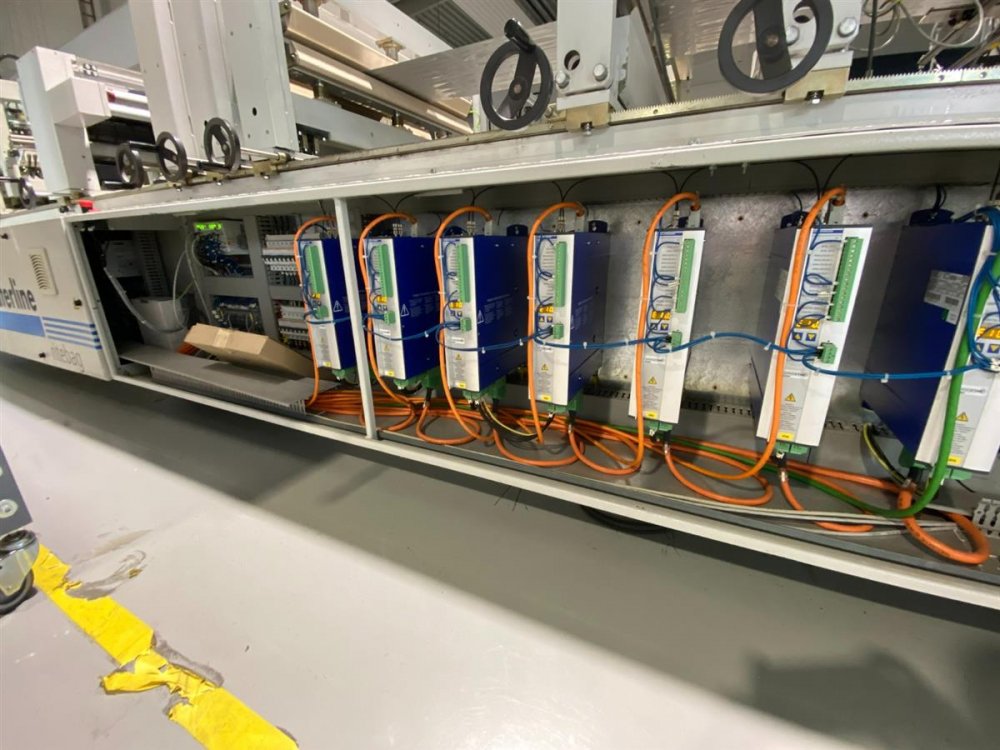

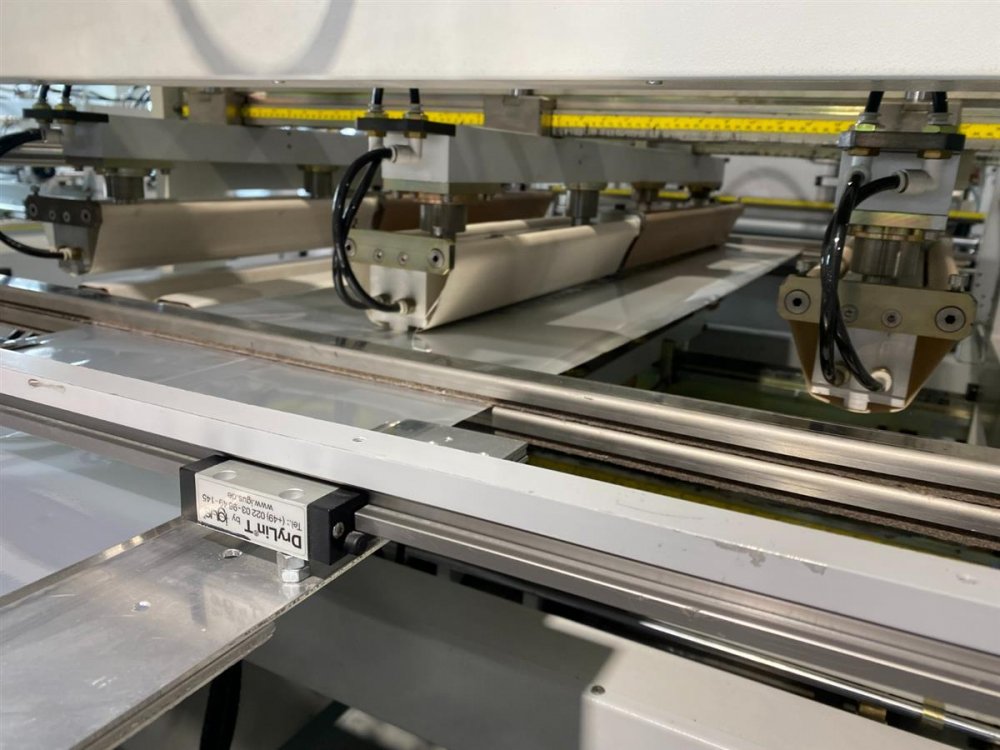

- Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven
Código Máquina | PO55 |
Constructor | WATERLINE |
Modello | Ritebag 900 |
Año | 2008 |
Type of sealing/bags | 3 side weld |
Bag length | 50-600mm |
Bag width | 50-900mm |
Unwinder | 2 Unwinders, reel width 1200mm, reel diameter 800mm, |
Cycle / min | 150 |
Additional information type of bags | 3 side seal bags from 2 webs |
Note | Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven |
