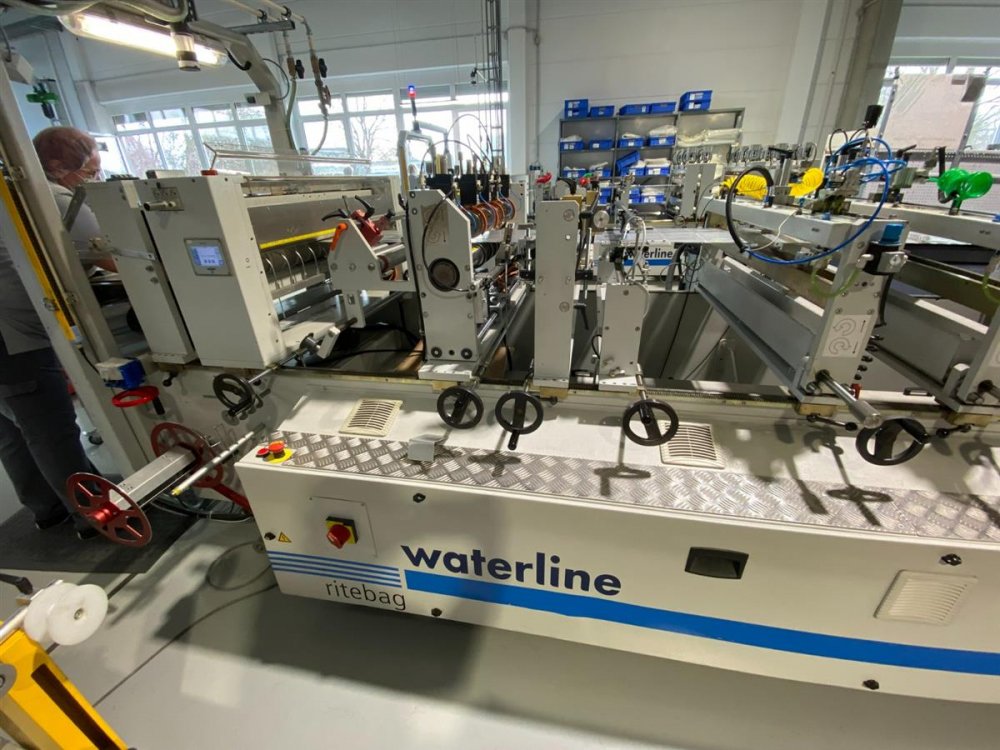

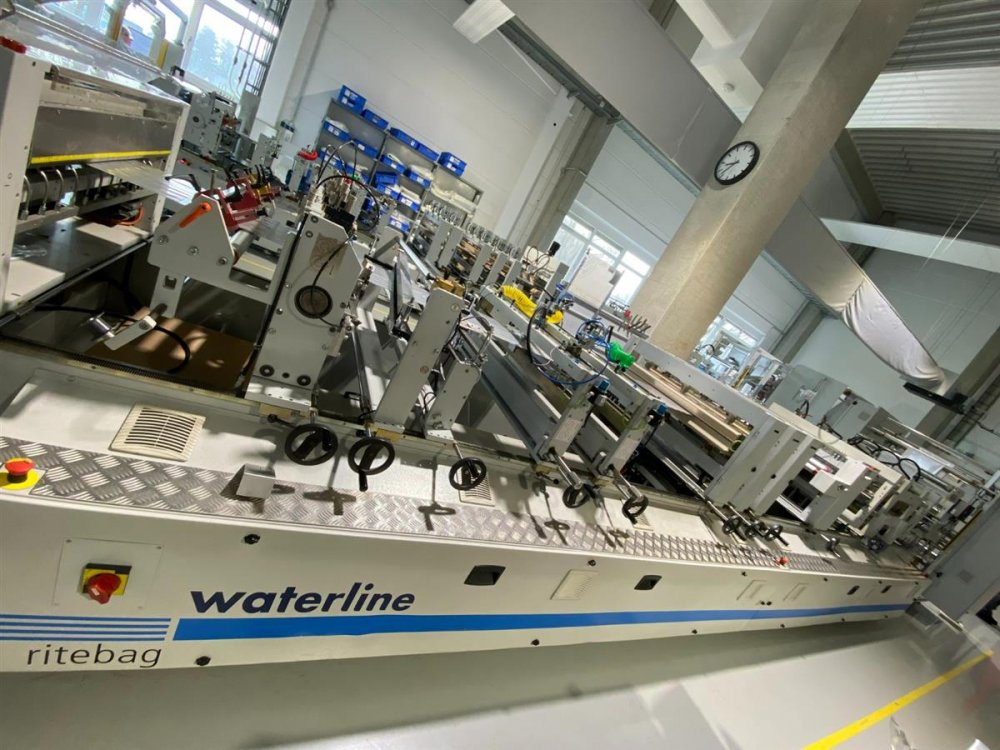

- Codice Macchina
- PO55
- Manufacturer
- WATERLINE
- Modello
- Ritebag 900
- Year
- 2008
- Type of sealing/bags
- 3 side weld
- Lunghezza sacchetti
- 50-600mm
- Larghezza sacchetti
- 50-900mm
- Svolgitore

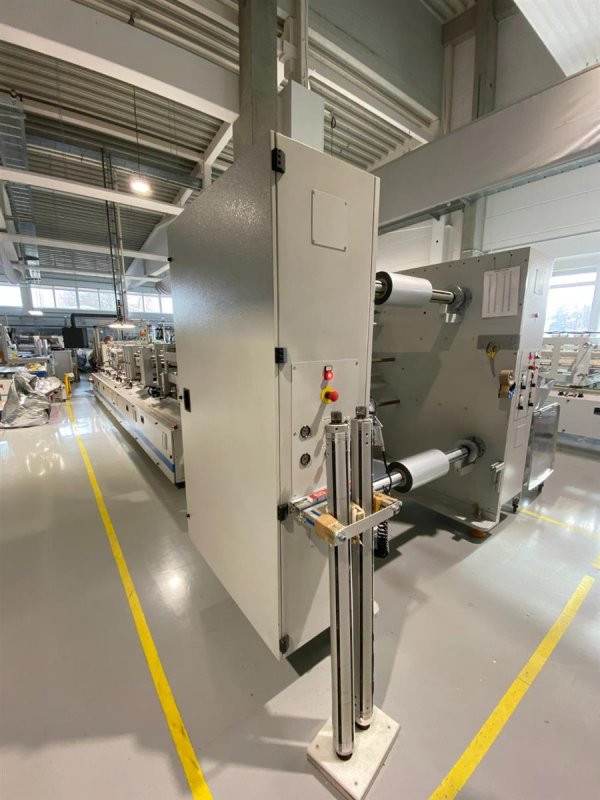

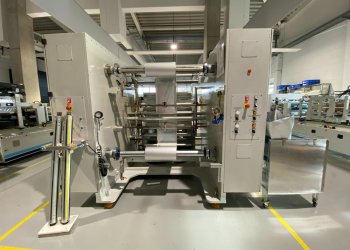

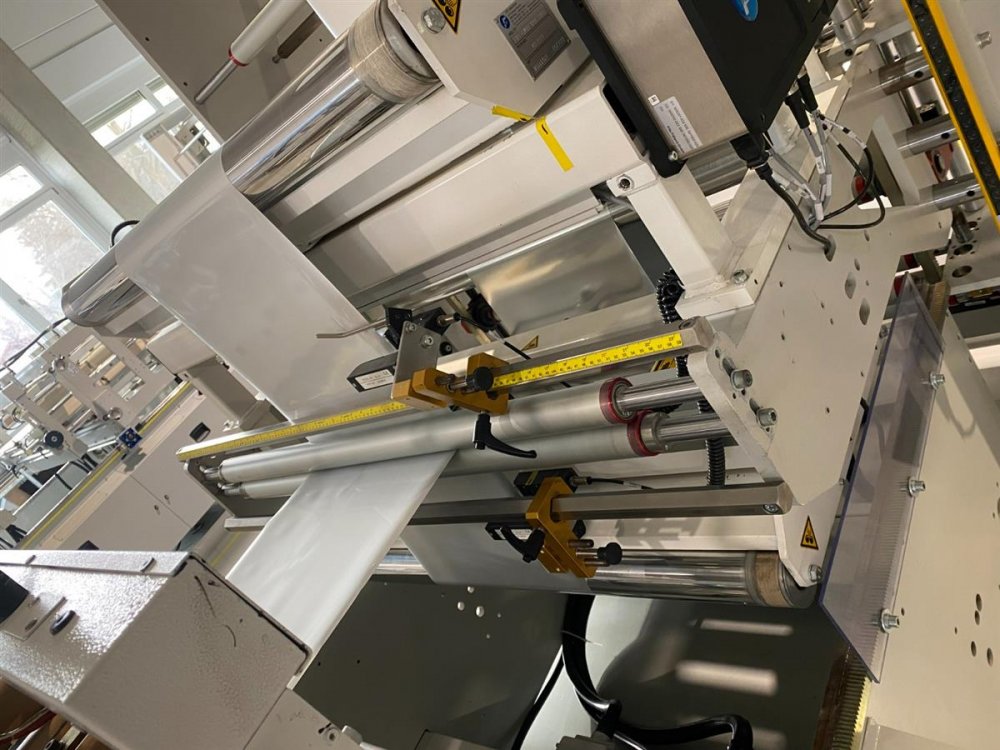

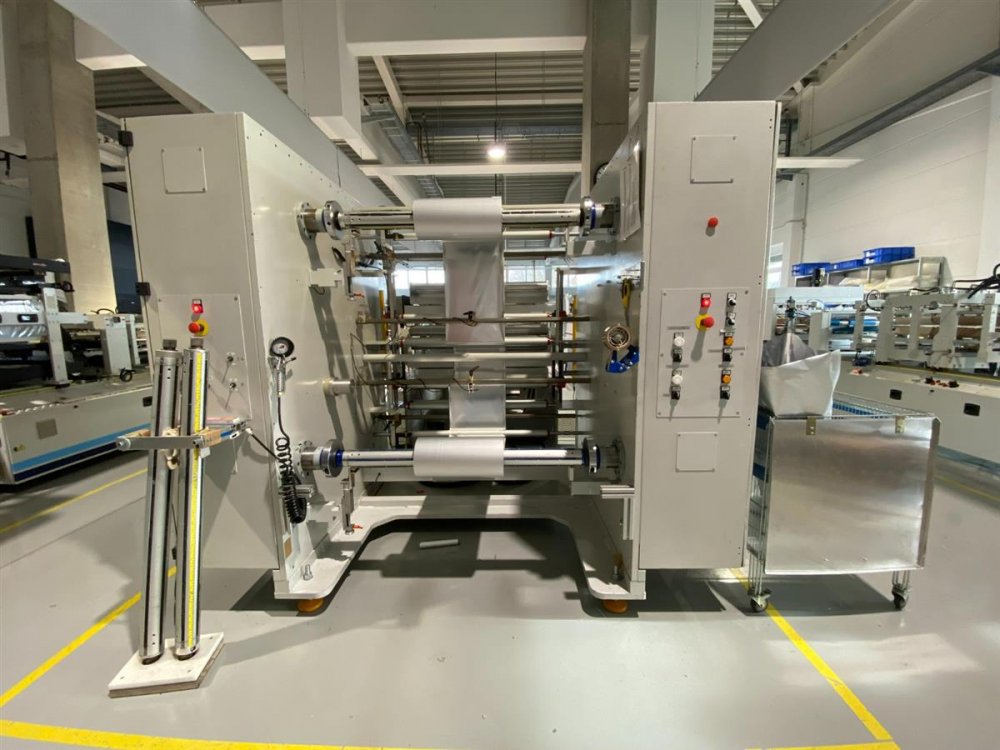

- 2 Unwinders, reel width 1200mm, reel diameter 800mm,
- Cicli/min
- 150
- Ulteriori informazioni
- 3 side seal bags from 2 webs
- Ulteriori informazioni

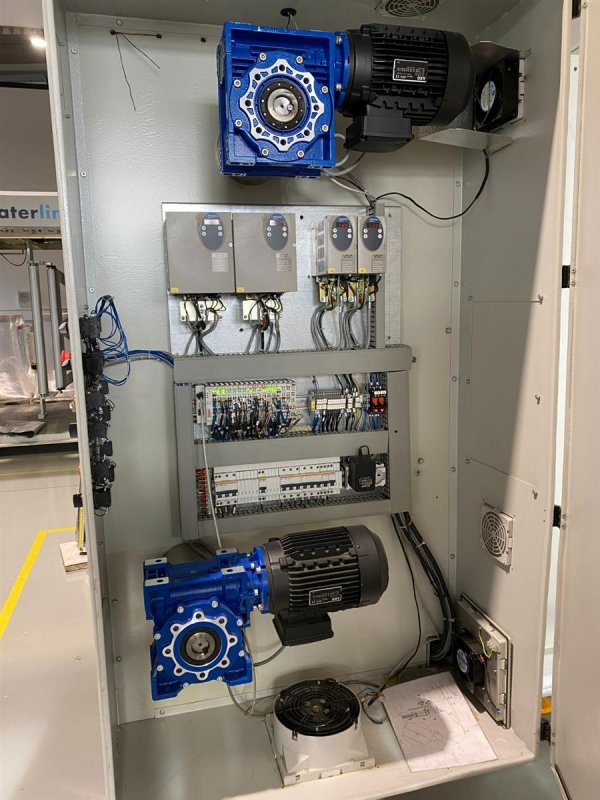

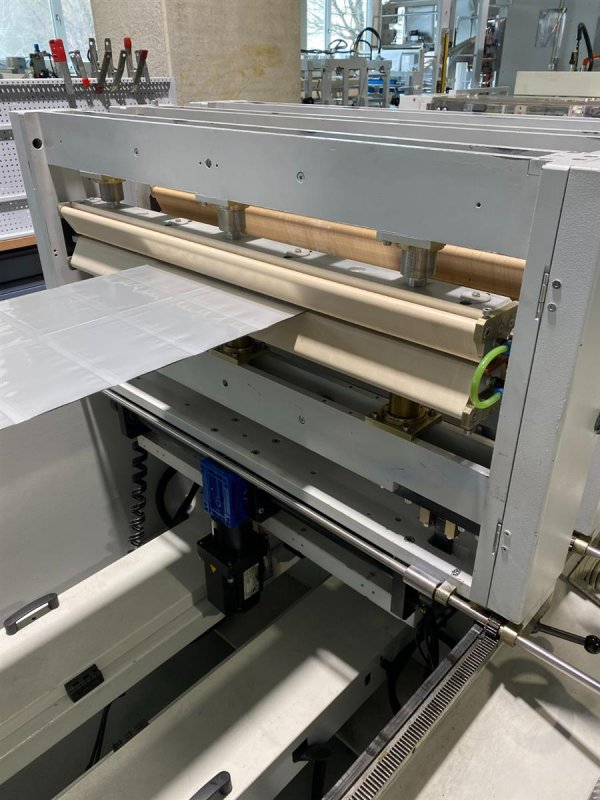

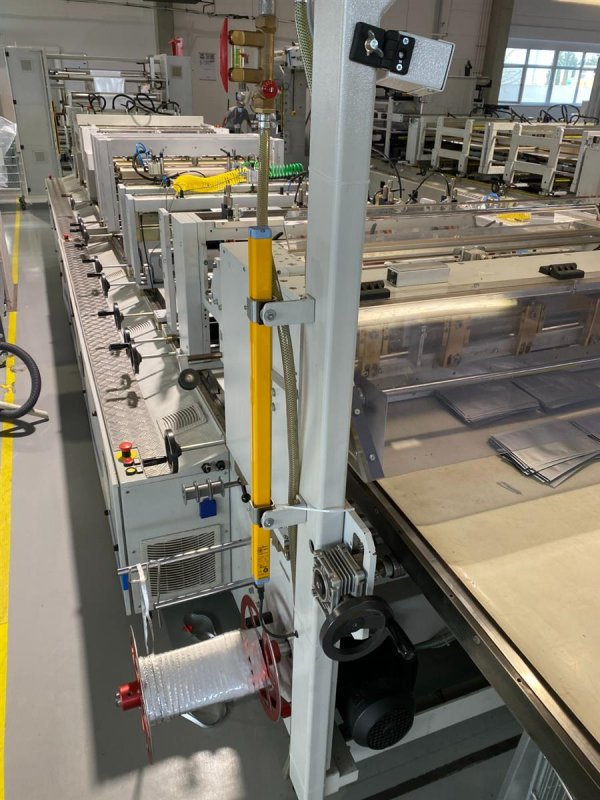

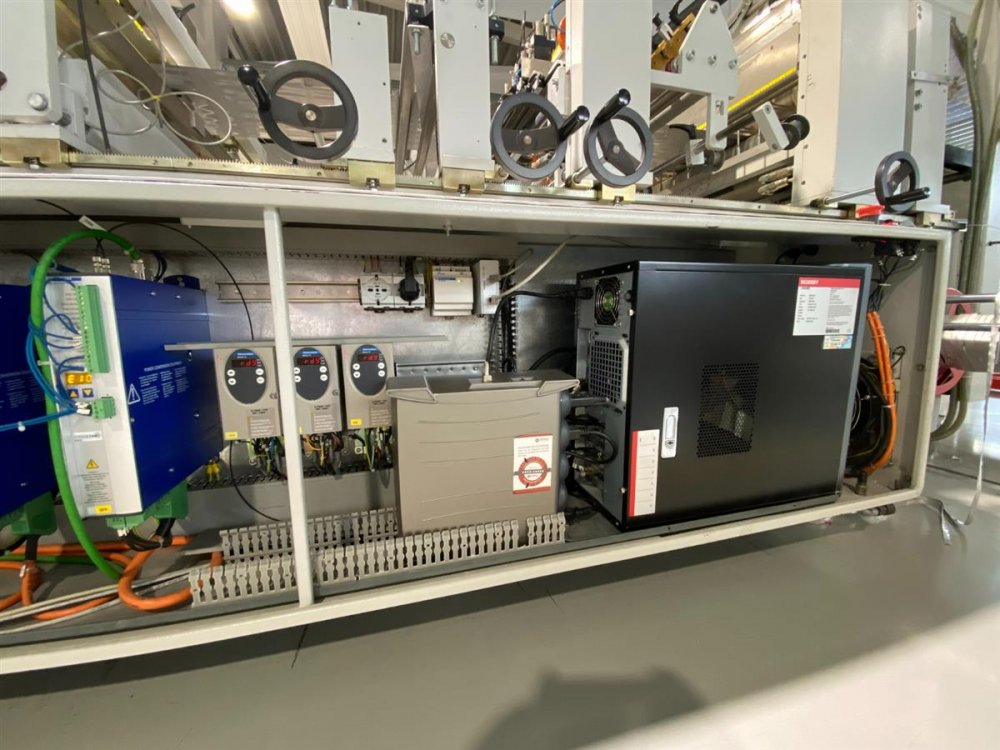

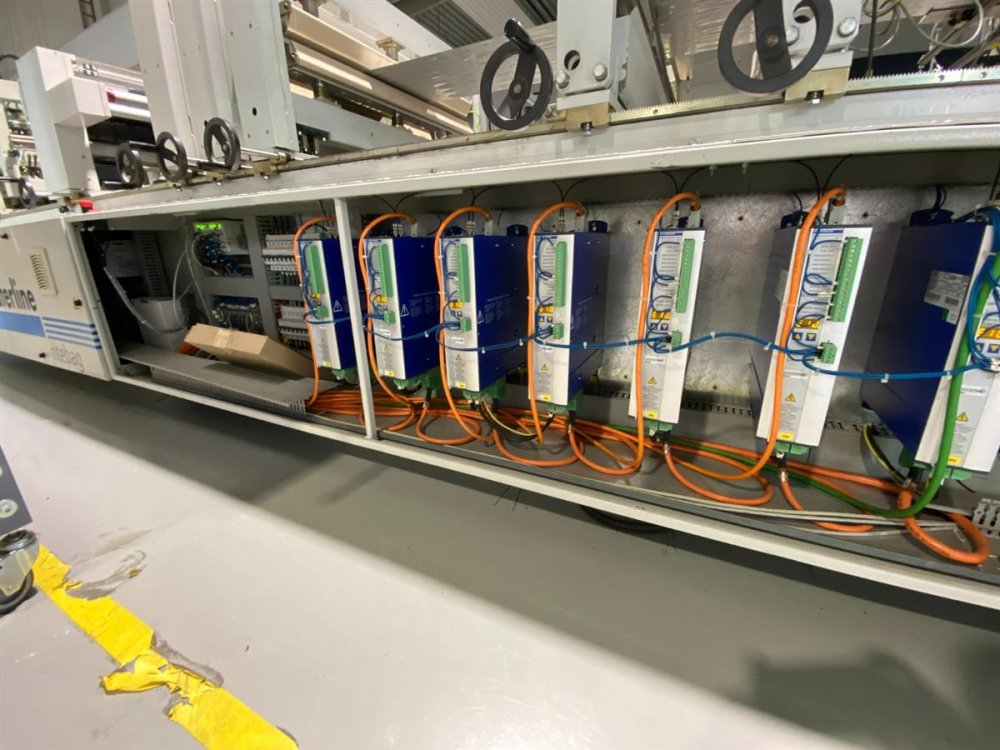

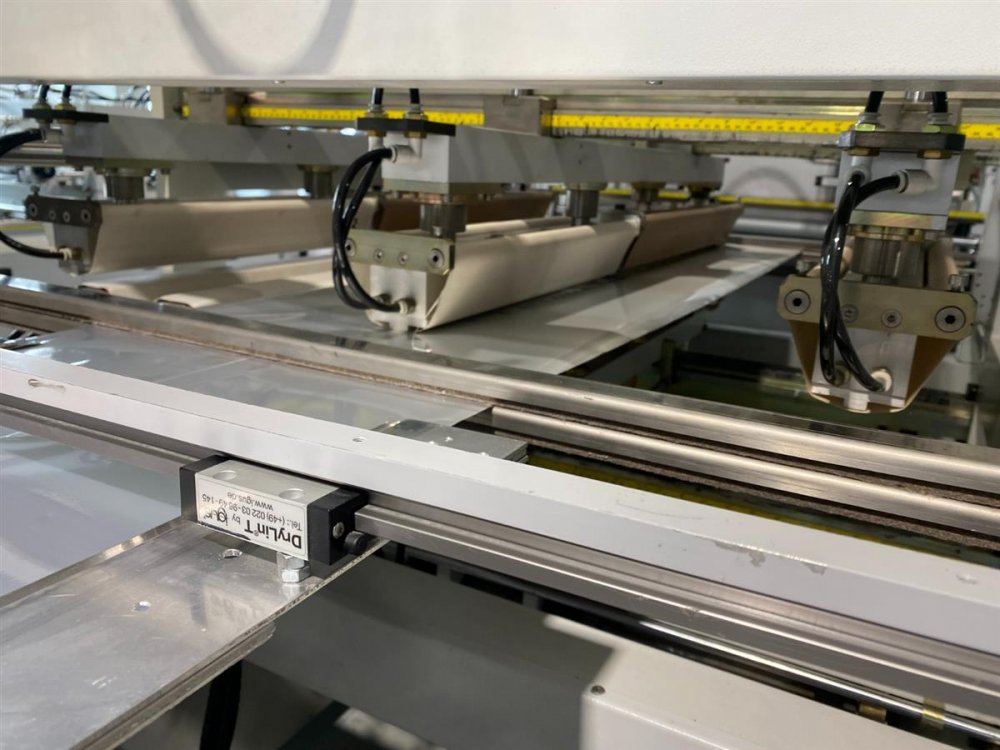

- Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven
| Codice Macchina | PO55 |
| Manufacturer | WATERLINE |
| Modello | Ritebag 900 |
| Year | 2008 |
| Type of sealing/bags | 3 side weld |
| Lunghezza sacchetti | 50-600mm |
| Larghezza sacchetti | 50-900mm |
| Svolgitore | 2 Unwinders, reel width 1200mm, reel diameter 800mm, |
| Cicli/min | 150 |
| Ulteriori informazioni | 3 side seal bags from 2 webs |
| Ulteriori informazioni | Dervo driven machine, section driven by independent servo motors to optimize flexibility and reduce change over times - longitudinal sealing unit with 3x sealing/cooling units, 600mm sealing and 600mm cooling length (possibility to install 700 sealing and 500 cooling. bar's width 60mm - cross sealing: 2x cross sealing units, bars 960mm length 60mm width; 1 x cooling960 mm bar length 60mm width - In line trim - register photochell - cross cutting, guiliottine type servo driven |
