Paper bag making machines fold a paper web into a square bottom SOS paper bag. These bags with block bottom may be produced in 1 or more layers of paper depending on machine's equipment and specifications. Some of these paper bag making machines are equipped to attach a handle on the bag, which may be: twisted handle or a flat handle.
Ask more informations
- Machine Code
- SO355
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Triumph 2B
- Year
- 1992
- Width (mm)
- 770
- Feed:
- Reel fed
- Bag length max (mm)
- 470
- Bag length min (mm)
- 200
- Bag width max (mm)
- 230
- Bag width min (mm)
- 70
- Bottom width max (mm)
- 140
- Bottom width (mm)
- 40
- Unwinder
- max. reel diamteter 1300mm
- Note

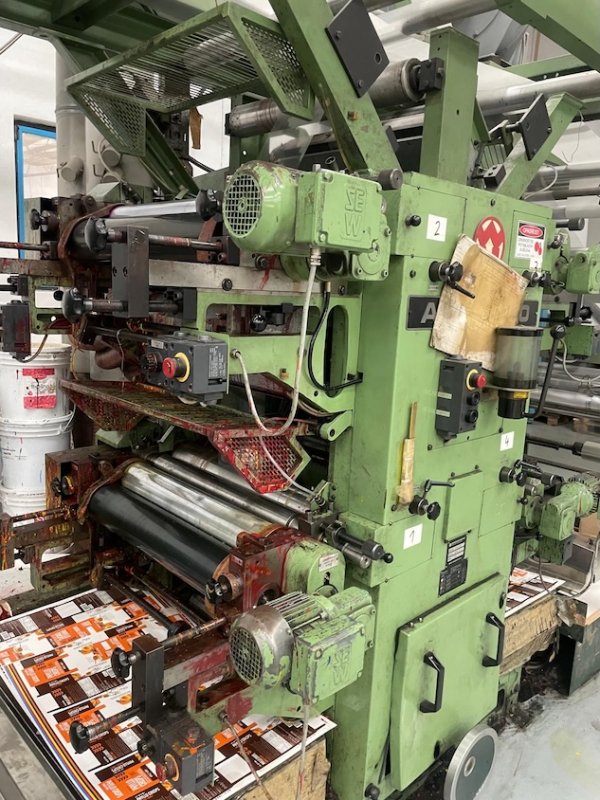

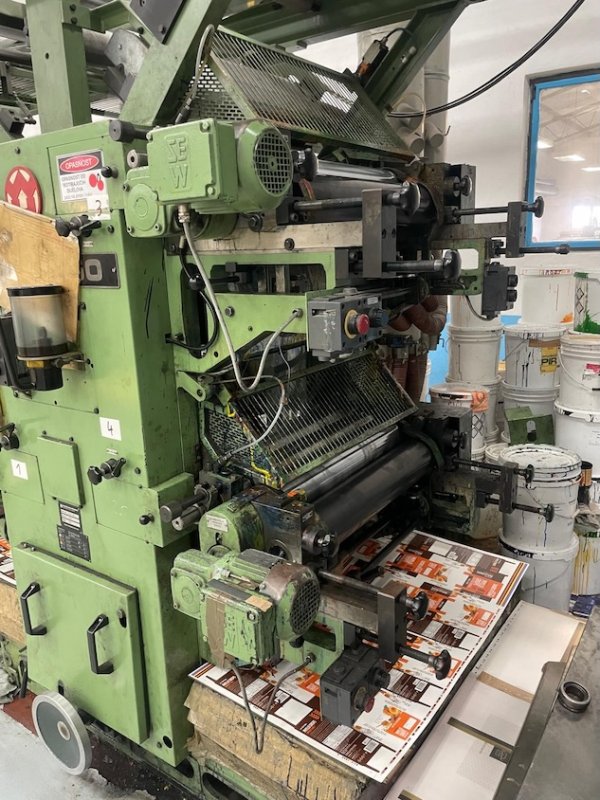

- Inline printing unit - Alina 650, 4 - color stack print width 650mm controlled via gear-driven format lengths or modern registration control systems (photocells)
| Machine Code | SO355 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Triumph 2B |
| Year | 1992 |
| Width (mm) | 770 |
| Feed: | Reel fed |
| Bag length max (mm) | 470 |
| Bag length min (mm) | 200 |
| Bag width max (mm) | 230 |
| Bag width min (mm) | 70 |
| Bottom width max (mm) | 140 |
| Bottom width (mm) | 40 |
| Unwinder | max. reel diamteter 1300mm |
| Note | Inline printing unit - Alina 650, 4 - color stack print width 650mm controlled via gear-driven format lengths or modern registration control systems (photocells) |
