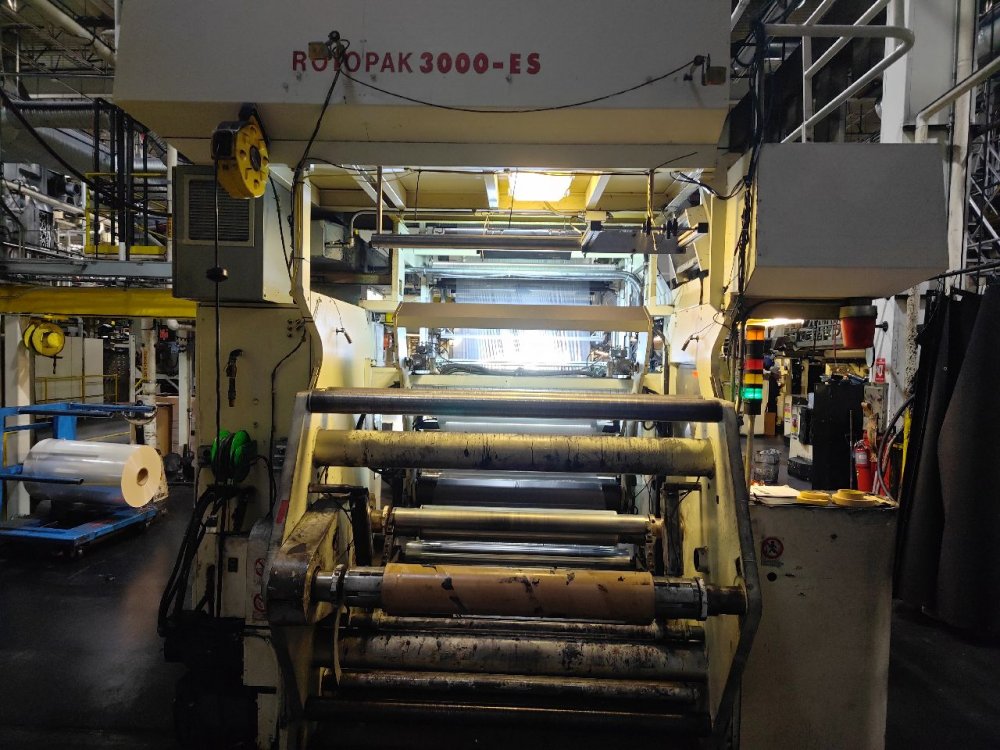

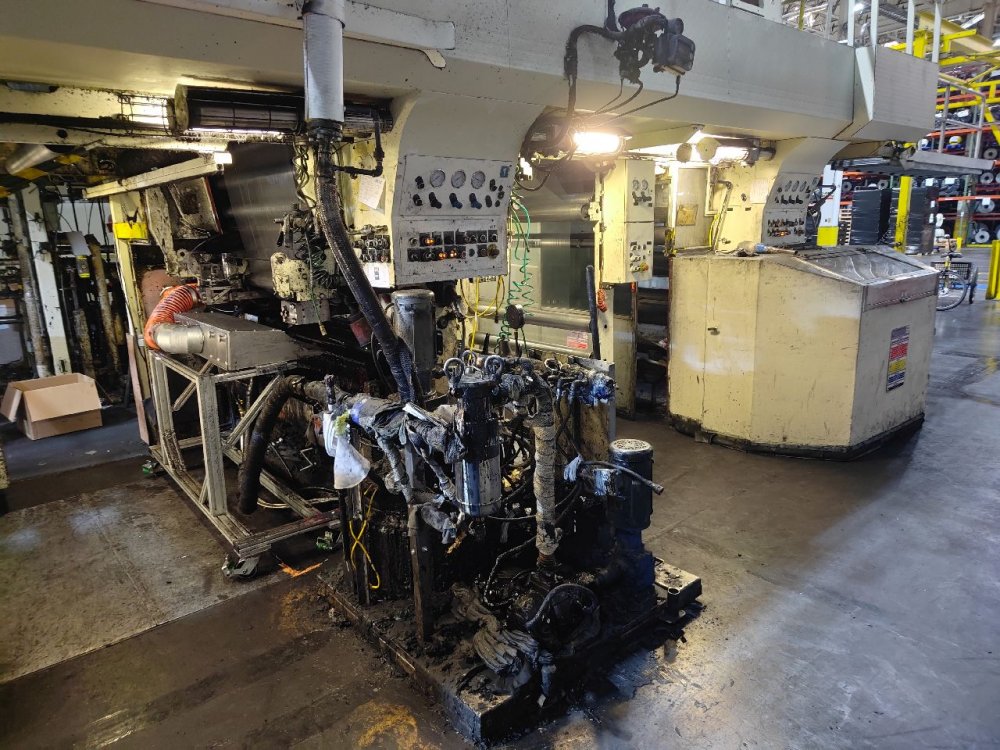

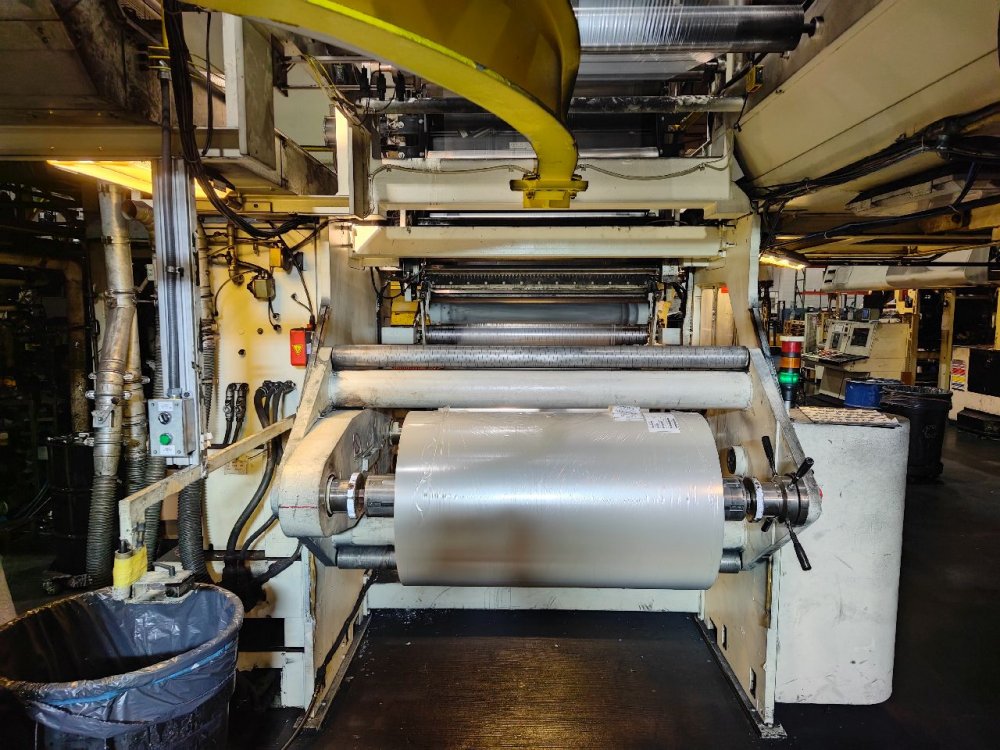

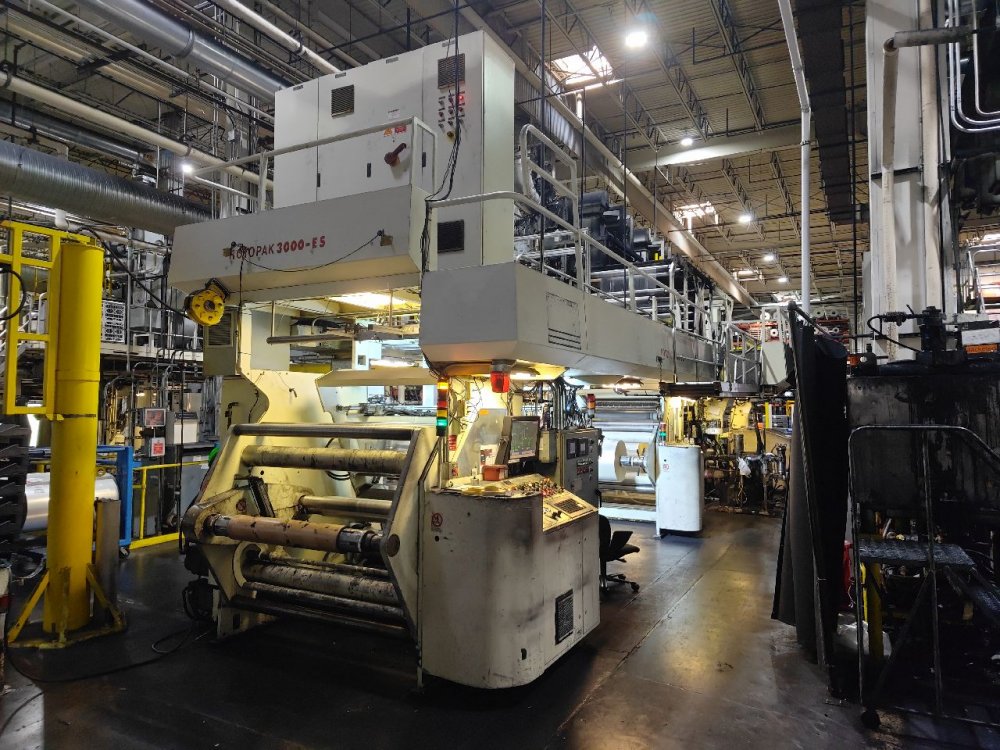

ROTOMEC ROTOPAK 3000-3ES/1200/300/C Laminator / coating machine SOLVENT / WATER BASED // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).

Photo Gallery

Ask more informations

Machine Code: LA537
Manufacturer: ROTOMEC
Modello: ROTOPAK 3000-3ES/1200/300/C
Year: 1999
Application: Coating
Type of lamination/coating: SOLVENT / WATER BASED
Working width (mm): 1220
Speed: 450mpm
First unwinder type: Turret automatic
Max diameter reel unwinder: 1000
Secondary unwinder type
Rewinder type: Turret automatic
Max diameter reel rewinder: 1000
Coating unit: Gravure
Second Coating unitr: Gravure
Drying: Both units are double hood, each with dedicated exhaust fan and supply fan. Drying Heat Source - Steam
Note: 2-station (1 reversible and hotmelt capable) 2-station independent drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives:Siemens, Indramat/Rexroth Dilution Control: Yes

Machine Code	LA537
Manufacturer	ROTOMEC
Modello	ROTOPAK 3000-3ES/1200/300/C
Year	1999
Application	Coating
Type of lamination/coating	SOLVENT / WATER BASED
Working width (mm)	1220
Speed	450mpm
First unwinder type	Turret automatic
Max diameter reel unwinder	1000
Secondary unwinder type
Rewinder type	Turret automatic
Max diameter reel rewinder	1000
Coating unit	Gravure
Second Coating unitr	Gravure
Drying	Both units are double hood, each with dedicated exhaust fan and supply fan. Drying Heat Source - Steam
Note	2-station (1 reversible and hotmelt capable) 2-station independent drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives:Siemens, Indramat/Rexroth Dilution Control: Yes
