Paper bag making machines fold a paper web into a square bottom SOS paper bag. These bags with block bottom may be produced in 1 or more layers of paper depending on machine's equipment and specifications. Some of these paper bag making machines are equipped to attach a handle on the bag, which may be: twisted handle or a flat handle.
Ask more informations
- Machine Code
- SO331
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello

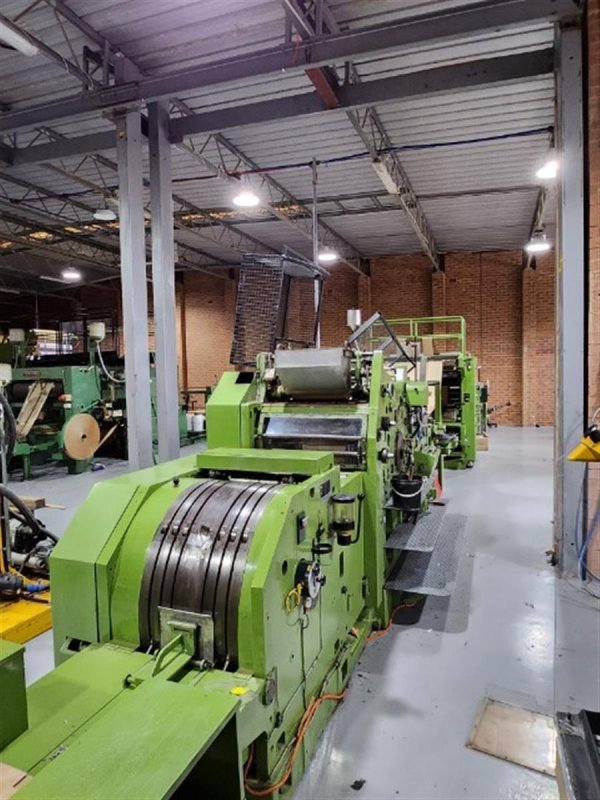

- TRIUMPH 5A
- Year
- 1970
- Materials
- 100 – 140 gsm/paper
- Feed:
- Reel fed
- Handel unit
- Flat
- Bag length max (mm)
- 650
- Bag length min (mm)
- 420
- Bag width max (mm)
- 450
- Bag width min (mm)
- 220
- Bottom width max (mm)
- 220
- Bottom width (mm)
- 90
- Cycle / min
- 180 bags/min
- Unwinder
- Max reel width: 1370 mm .Max reel diameter: 1270 mm
- Note
- With in-line flat handle unit Installed electrical load 30kw Dimensions: LxWxH 11,3 x 2,74 x 2,67 m
| Machine Code | SO331 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | TRIUMPH 5A |
| Year | 1970 |
| Materials | 100 – 140 gsm/paper |
| Feed: | Reel fed |
| Handel unit | Flat |
| Bag length max (mm) | 650 |
| Bag length min (mm) | 420 |
| Bag width max (mm) | 450 |
| Bag width min (mm) | 220 |
| Bottom width max (mm) | 220 |
| Bottom width (mm) | 90 |
| Cycle / min | 180 bags/min |
| Unwinder | Max reel width: 1370 mm .Max reel diameter: 1270 mm |
| Note | With in-line flat handle unit Installed electrical load 30kw Dimensions: LxWxH 11,3 x 2,74 x 2,67 m |
